KY-RO6000L/H
KAIYUAN
Product Description
Model：KY-BW-6T

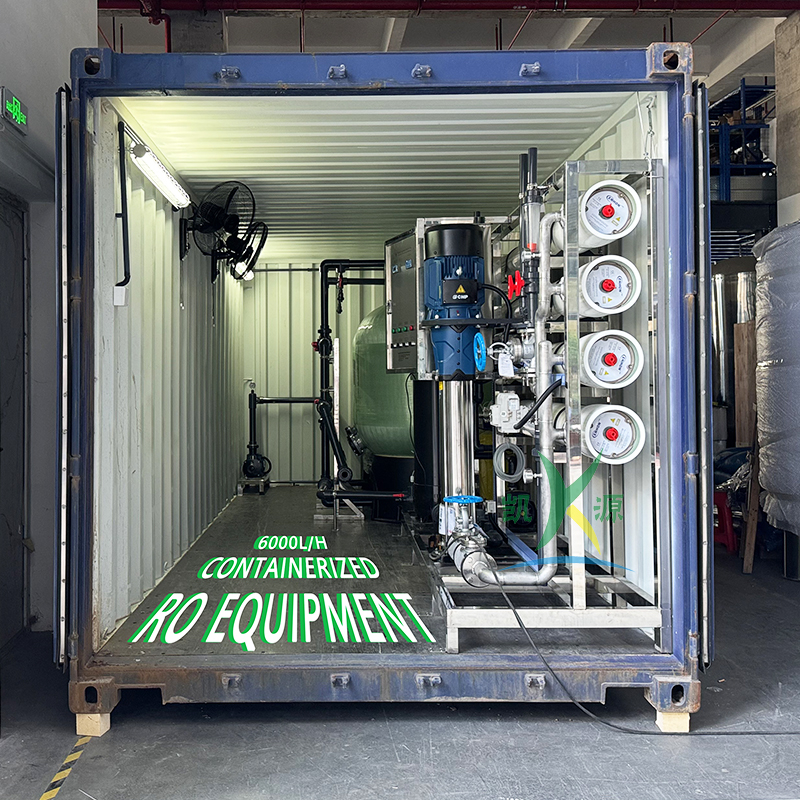

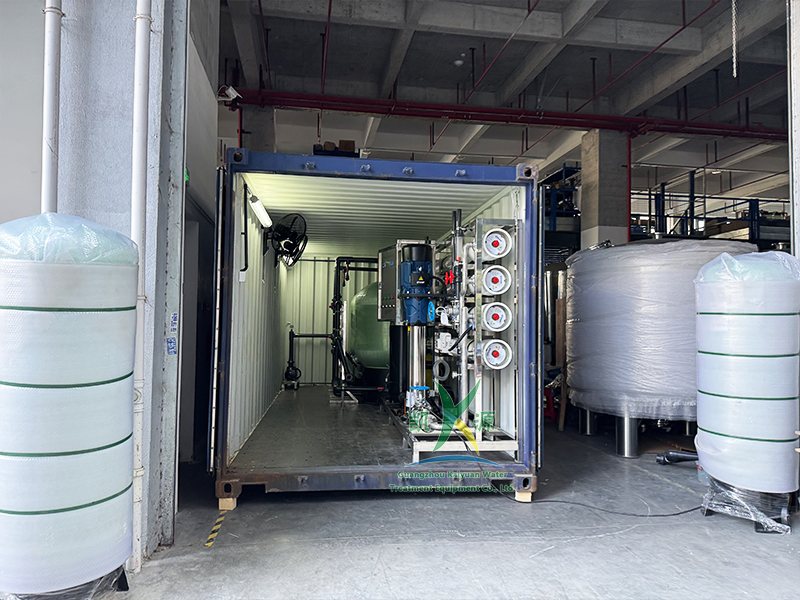

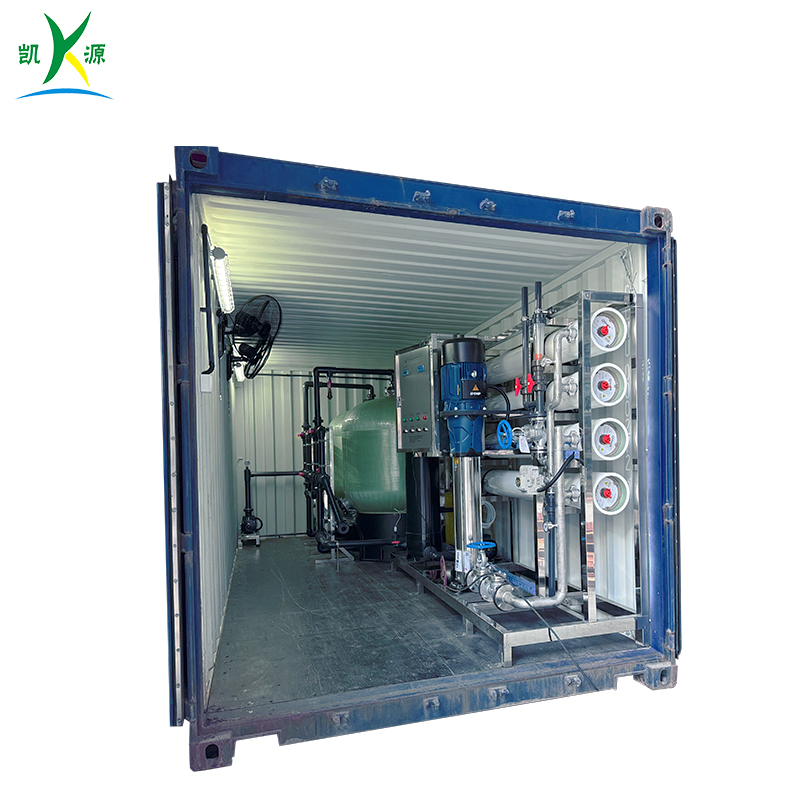

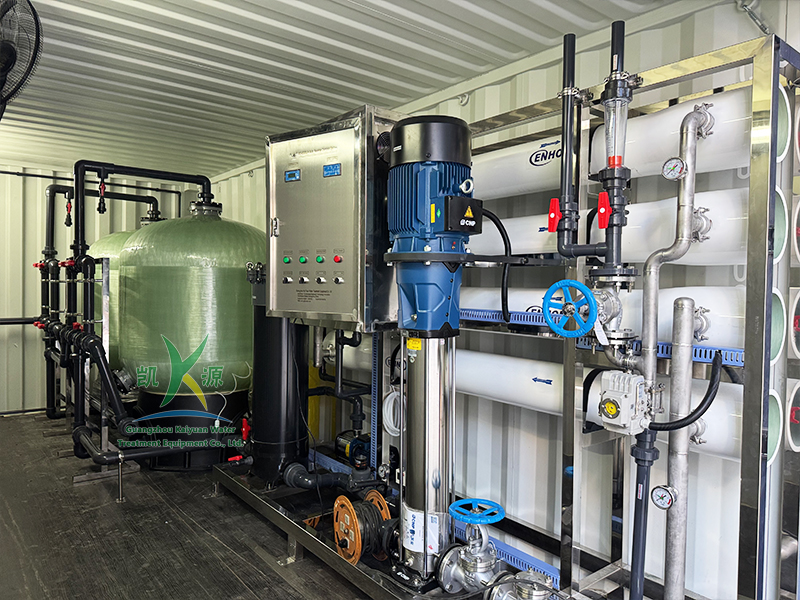

Name：6m³/h Containerized Brackish Water Desalination Plant
Core Technology：Multi-stage Pretreatment + Reverse Osmosis (RO) Membrane Desalination
Rated Capacity：6 cubic meters per hour (6T/h)
Feed Water：Brackish water, groundwater, surface water, saline water (TDS 1000–10000ppm)
Item | Specification |
|---|---|
Salt Rejection | ≥98.5% (standard condition) |
System Recovery | 50%–70% (adjustable based on raw water quality) |
Product Water Quality | TDS ≤700mg/L (meets WHO & GB5749-2022 standards) |
Operating Pressure | 1.2–2.0MPa |
Total Power | 18–22kW |
Power Supply | 380V/50Hz, 3-phase 4-wire |
Control System | PLC Automatic Control + Touch Screen |
Protection Grade | IP54 |
Dimension | 20ft Standard Container (6058×2438×2591mm) |
Net Weight | ≈5800kg |
Material | Pipes/Frame: SS304; Tanks: FRP / Anti-corrosive Carbon Steel |
Pretreatment System

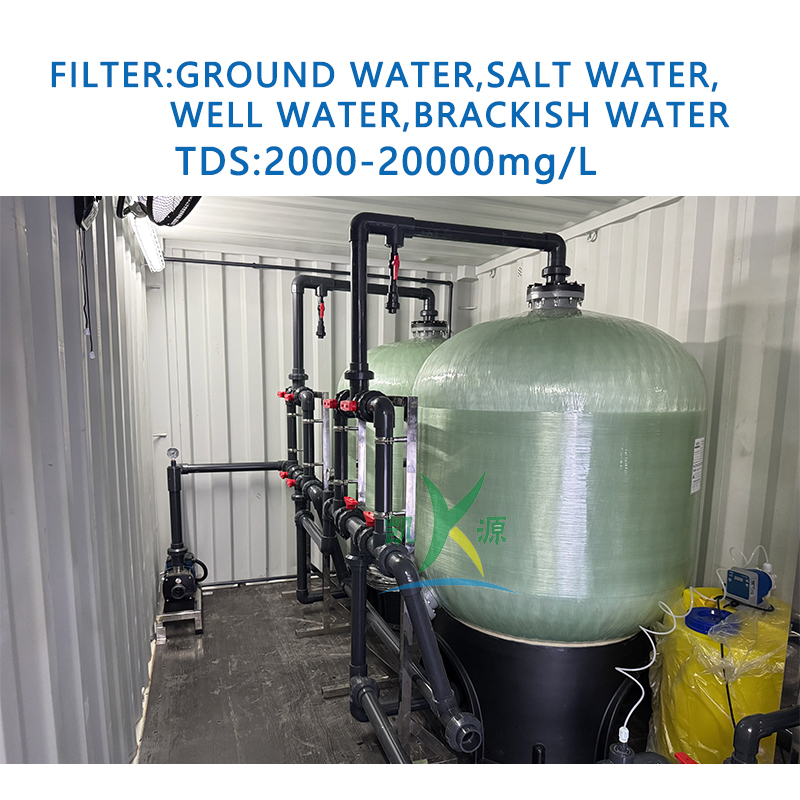

Quartz Sand Filter: Removes sediment, suspended solids, colloids
Activated Carbon Filter: Adsorbs residual chlorine, organics, odor

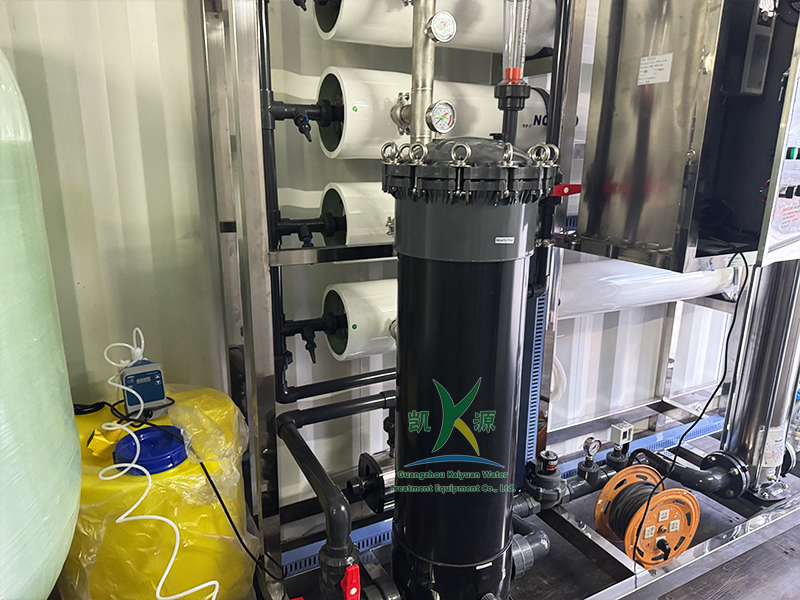

Security Filter (5μm): Protects RO membrane from particle blockage
Automatic Dosing System (scale inhibitor / reducer): Prevents scaling
RO Core Desalination System
Imported high-rejection brackish water RO membrane elements

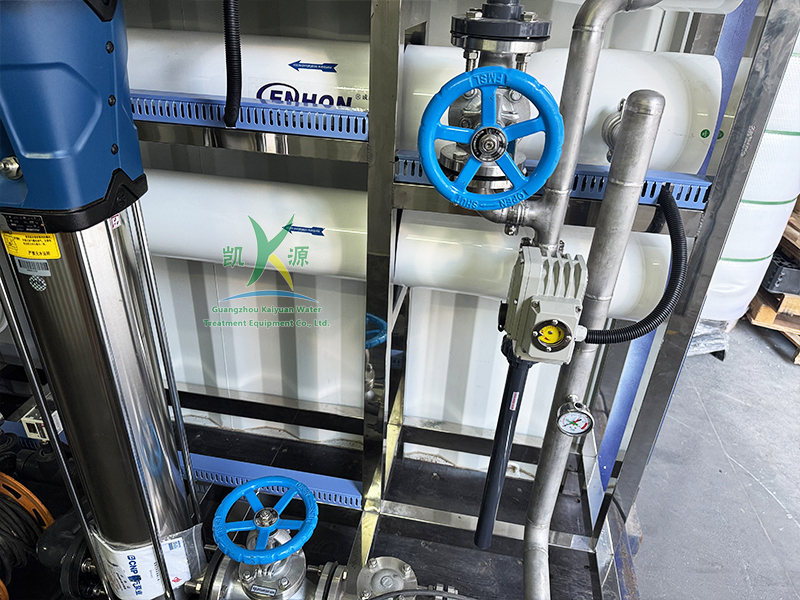

High-efficiency energy-saving high-pressure pump
1 / 2-stage RO separation: removes salts, heavy metals, bacteria, virus
Automatic Control System
One-button start/stop, fully automatic operation
High/low pressure protection, dry-run protection, fault alarm
Auto backwash, online water quality monitoring, flow totalizer
Remote monitoring interface (optional)
Cleaning & Maintenance System
On-line chemical cleaning system for RO membrane
Modular design for easy maintenance and consumable replacement

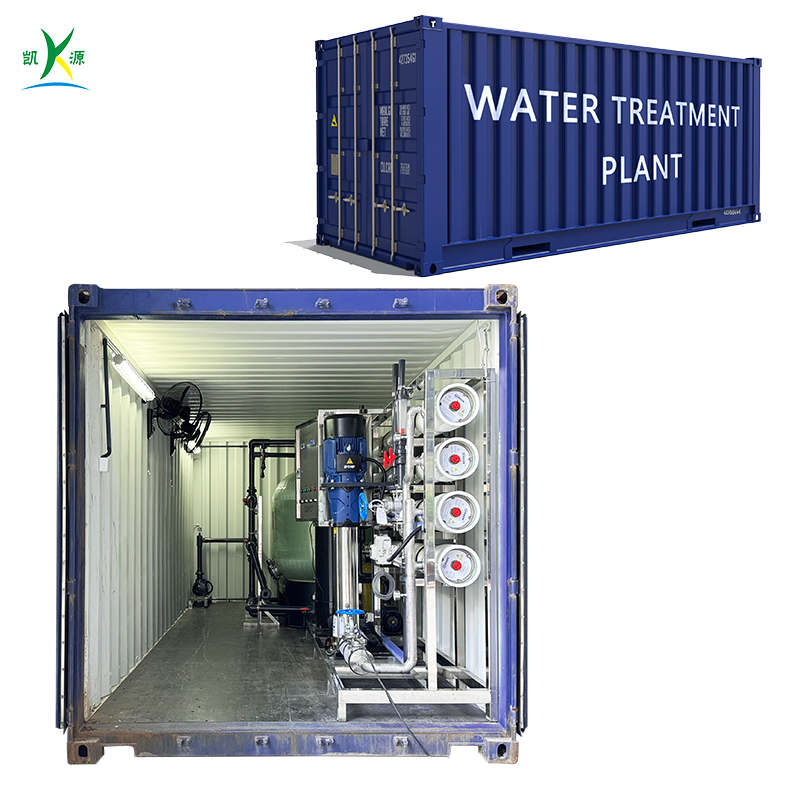

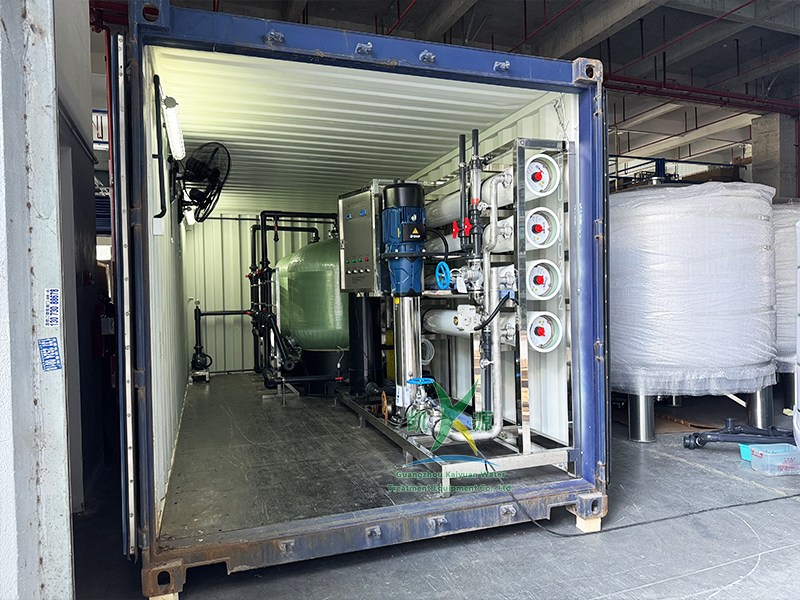

All-in-one Integration: Fully assembled in standard container, ready for use
High Mobility: Easy transport, hoist and rapid deployment
Stable & Reliable: 24/7 continuous operation, stable water quality
Energy Saving & Eco-friendly: Low power consumption, no chemical waste
Strong Adaptability: Insulated, anti-corrosion, noise-proof container
Easy Maintenance: Simple operation, low operation cost
Civil Use: Islands, fishing villages, remote camps, frontier defense
Industrial: Electronics, chemical, food & beverage, textile, pharmaceutical pure water
Emergency: Disaster relief (earthquake, drought, flood) water supply
Mining: Coal, oil, metal mining production & domestic water
Saline Areas: Coastal brackish water, saline-alkali land, high-salt groundwater zones
