RO water and EDI water are often discussed together, but they are not the same type of purified water. Reverse osmosis uses pressure and semi-permeable membranes to remove most dissolved salts, particles, organics, and microorganisms from feed water, while EDI uses ion exchange resin, ion-selective membranes, and direct current electricity to further remove residual ions from RO permeate. In most industrial high-purity water systems, Edi Water Treatment is not a replacement for RO; it is a polishing stage installed after RO to produce lower conductivity and more stable deionized water.
● RO water is produced by membrane separation, while EDI water is produced by electrodeionization after RO.
● Edi Water Treatment is mainly used as a polishing stage for high-purity water production.
● RO removes a broad range of impurities, while EDI focuses on residual dissolved ions.
● EDI normally requires stable RO permeate as feed water.
● RO + EDI systems are common in pharmaceutical, power, electronics, laboratory, and precision manufacturing applications.
● The right system depends on feed water quality, target conductivity, flow rate, and operating standards.
RO water is water purified by reverse osmosis membranes, and it is usually suitable for general desalination, industrial process water, or as feed water for further polishing. EDI water is water treated by an electrodeionization system, usually after RO, to reduce remaining ions and achieve high-purity water quality. Edi Water Treatment is therefore mainly used when RO water alone cannot meet conductivity, resistivity, silica, or ionic purity requirements.
Comparison Item |
RO Water System |
EDI Water Treatment System |
Core technology |
Pressure-driven membrane separation |
Resin, ion-selective membranes, and DC electricity |
Main function |
Primary desalination and impurity reduction |
Final ion polishing after RO |
Typical feed water |
Pretreated raw water |
RO permeate |
Product water quality |
Purified water |
High-purity or ultrapure water |
Main removal target |
Salts, particles, colloids, organics, microbes |
Residual dissolved ions |
Chemical regeneration |
Not used for membrane operation |
No traditional acid/caustic resin regeneration |
Common position |
Before EDI |
After RO |
Typical configuration |
Pretreatment + RO |
Pretreatment + RO + EDI |
RO and EDI are often combined because their functions are complementary. RO reduces the majority of contaminants and protects the downstream polishing stage, while Edi Water Treatment removes the remaining ionic load to produce stable high-purity water. If RO performance is poor, the EDI module receives excessive ion load, which may increase electrical demand, reduce product water quality, and shorten module service life.
Reverse osmosis works by applying pressure to push water through a semi-permeable membrane. The membrane allows water molecules to pass while rejecting most dissolved salts, suspended particles, colloids, bacteria, and larger organic compounds. In systems using Edi Water Treatment after RO, the RO stage is essential because it lowers the ionic burden before water enters the EDI module.

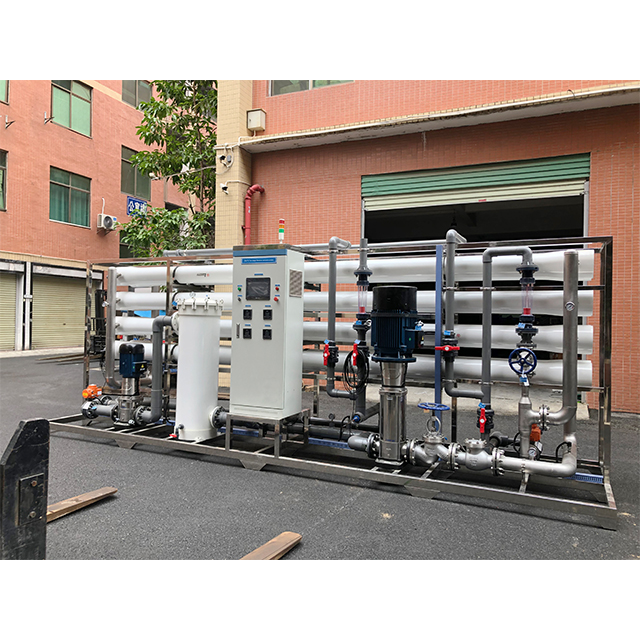

A typical RO system includes pretreatment filters, high-pressure pumps, RO membranes, membrane housings, pressure gauges, flow meters, conductivity meters, valves, and a control panel. Pretreatment may include multimedia filtration, activated carbon, softening, antiscalant dosing, cartridge filtration, or ultrafiltration depending on raw water quality. These components directly affect downstream Edi Water Treatment stability because chlorine, hardness leakage, iron, colloids, and organic fouling can damage or overload the polishing stage.
RO can remove most dissolved solids and many non-ionic contaminants, but it does not always remove every trace impurity to high-purity standards. Small amounts of sodium, chloride, silica, boron, carbon dioxide, ammonia, and weakly ionized substances may remain in RO permeate. For pharmaceutical water, boiler feed water, electronics rinsing, and laboratory applications, Edi Water Treatment is often required after RO to achieve lower conductivity and more consistent ionic purity.
EDI combines ion exchange resin, cation and anion exchange membranes, and direct current electricity in one continuous process. Ions in the feed water are exchanged by resin, then driven through selective membranes into concentrate channels under an electric field. Edi Water Treatment continuously regenerates the resin internally, so it avoids traditional acid and caustic regeneration used in conventional mixed bed deionization.

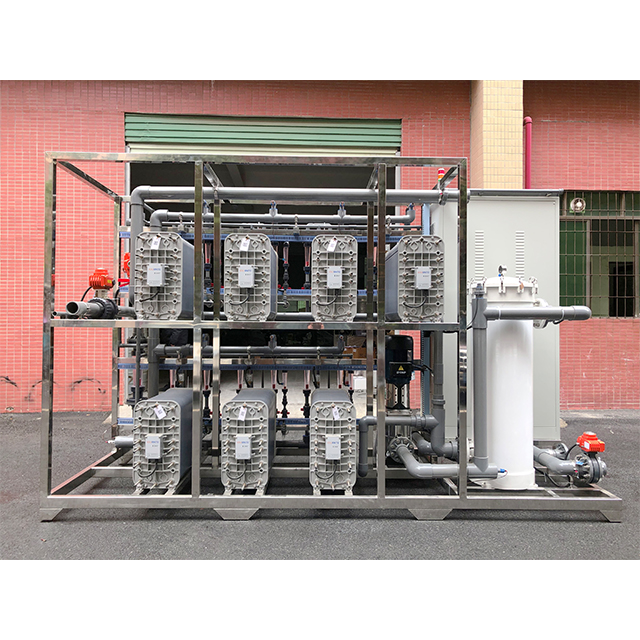

An EDI system normally includes EDI modules, DC power supply, feed water lines, product water lines, concentrate circulation or discharge lines, flow control devices, pressure instruments, conductivity monitoring, and a PLC control system. Inside the module, dilute compartments produce purified water while concentrate compartments collect removed ions. Stable hydraulic flow, correct voltage, balanced current, and proper concentrate management are critical for reliable Edi Water Treatment performance.
EDI is installed after RO because EDI modules require low-hardness, low-conductivity, low-organic, chlorine-free feed water. RO protects the EDI module by reducing dissolved solids, particles, microbes, and many organic contaminants before the polishing stage. If Edi Water Treatment receives poor-quality feed water, scaling, fouling, pressure increase, unstable resistivity, and module damage may occur.
RO is a pressure-driven physical separation process. It relies on membrane rejection to separate water from dissolved and suspended impurities. Edi Water Treatment is an electrically driven deionization process that removes remaining ions through resin exchange and ion migration across selective membranes.
RO is usually positioned after pretreatment and before final polishing. EDI is usually positioned after RO because it is designed to treat already purified RO permeate rather than raw or poorly treated water. In a complete high-purity system, Edi Water Treatment acts as the final deionization stage before storage, distribution, or point-of-use polishing.
RO water can provide good desalinated water, but its conductivity is usually higher than EDI product water. EDI water can reach much lower conductivity or higher resistivity when feed conditions and operating parameters are stable. For this reason, Edi Water Treatment is selected when ordinary RO water cannot meet high-purity industrial specifications.
RO has a broad removal range and can reduce salts, particles, colloids, bacteria, and many organic substances. EDI is more focused on dissolved ionic contaminants such as sodium, calcium, magnesium, chloride, nitrate, sulfate, bicarbonate, and other charged species. Edi Water Treatment is not intended to remove oil, high suspended solids, chlorine, heavy organic contamination, or severe microbial load.
RO maintenance focuses on membrane fouling, scaling, pressure drop, recovery rate, chemical cleaning, and pretreatment stability. EDI maintenance focuses on feed conductivity, hardness leakage, pH, temperature, voltage, current, pressure balance, and concentrate flow. Edi Water Treatment can reduce chemical regeneration requirements, but it still requires careful monitoring and stable upstream RO operation.
Factor |
RO System |
EDI Water Treatment System |
RO + EDI System |
Main purpose |
Desalination and purification |
Ion polishing |
High-purity water production |
Feed requirement |
Pretreated water |
RO permeate |
Pretreatment plus RO |
Conductivity control |
Moderate to good |
Very low conductivity |
Stable high-purity output |
Chemical regeneration |
Not required |
Not required |
Not required for EDI resin |
Sensitivity to feed quality |
Medium to high |
Very high |
Managed by staged design |
Best application |
General purified water |
Final deionization |
Industrial high-purity water |
Limitation |
Trace ions remain |
Cannot treat poor feed water |
Higher design complexity |
RO alone is suitable when the target water quality does not require extremely low conductivity or high resistivity. It is commonly used for drinking water production, general industrial process water, rinsing water, boiler pretreatment, and desalination before other purification stages. If the required specification allows RO permeate quality, adding Edi Water Treatment may not be necessary.
EDI after RO is necessary when a process requires stable deionized water with very low ionic content. Industries such as pharmaceutical production, power generation, electronics manufacturing, precision cleaning, and laboratory water systems often require tighter control than RO alone can provide. In these cases, Edi Water Treatment provides continuous polishing without conventional mixed bed chemical regeneration.
RO + EDI is the preferred configuration when raw water must be transformed into reliable high-purity water through staged treatment. Pretreatment protects RO, RO protects EDI, and Edi Water Treatment produces the final low-conductivity water. This arrangement improves operating stability, reduces stress on the EDI module, and supports continuous production requirements.
Accurate system design starts with a complete water analysis. Key parameters include conductivity, TDS, hardness, alkalinity, silica, boron, CO2, TOC, iron, manganese, chlorine, SDI, pH, temperature, and microbial risk. Without this data, RO membrane selection and Edi Water Treatment module sizing may be inaccurate.
The required product water quality should be defined before equipment selection. Some processes require low conductivity, while others require high resistivity, low silica, low boron, low TOC, microbial control, or compliance with specific industry standards. Edi Water Treatment design must match the final application rather than using a generic capacity model.
Flow rate affects membrane sizing, pump selection, EDI module capacity, concentrate flow, pressure balance, and operating cost. RO recovery must be controlled to avoid scaling, while EDI recovery must remain within module limits to maintain ion removal performance. A stable flow design allows Edi Water Treatment to operate efficiently and reduces the risk of product quality fluctuation.
Pharmaceutical and biotechnology water systems often require stable purified water with controlled conductivity and microbial risk. RO removes most contaminants, and Edi Water Treatment further reduces residual ions before storage and distribution. System design may also include UV, sanitary tanks, circulation loops, heat sanitization, and online monitoring.
Power plants require high-purity water to reduce scaling, corrosion, and deposits in boilers, turbines, and steam circuits. RO lowers dissolved solids, while EDI improves final ionic purity for boiler feed applications. Stable Edi Water Treatment performance supports safer steam generation, better heat transfer, and lower maintenance pressure.
Electronics manufacturing and laboratory operations often require low-conductivity or high-resistivity water for rinsing, cleaning, testing, or process preparation. Small ionic residues can affect sensitive production or analytical results. RO + Edi Water Treatment systems are therefore widely used where stable high-purity water must be produced continuously.
The main difference between RO and EDI water is that RO water is produced by membrane separation, while EDI water is produced by electrodeionization after RO polishing. RO is the primary purification stage that removes most impurities, and EDI is the final deionization stage that reduces residual ions for high-purity water applications. Edi Water Treatment should be selected when RO water alone cannot meet conductivity, resistivity, or ionic purity requirements. For industrial projects requiring customized RO + EDI high-purity water systems, Guangzhou Kai Yuan Water Treatment Equipment Co., Ltd. can provide equipment solutions based on feed water quality, capacity, application standards, and target product water specifications.
EDI is not simply better than RO because the two systems perform different functions. RO removes a wide range of impurities through membrane separation, while Edi Water Treatment removes residual ions after RO. In high-purity water systems, the best design often uses RO and EDI together.
EDI normally cannot replace reverse osmosis because it requires stable, low-conductivity RO permeate as feed water. If raw water or poorly treated water enters an EDI module, scaling, fouling, and electrical overload may occur. Edi Water Treatment is best used as a polishing stage after RO.
EDI is installed after RO because RO reduces the ion load, hardness, particles, organics, and microbial burden before the EDI module. This protects the module and allows stable low-conductivity water production. Edi Water Treatment depends heavily on upstream RO performance.
RO water is produced by reverse osmosis membranes and usually contains fewer impurities than feed water but may still contain trace ions. EDI water is produced by Edi Water Treatment after RO and usually has lower conductivity and higher purity. The difference is mainly treatment method, system position, and final water quality.
