1. Product Introduction

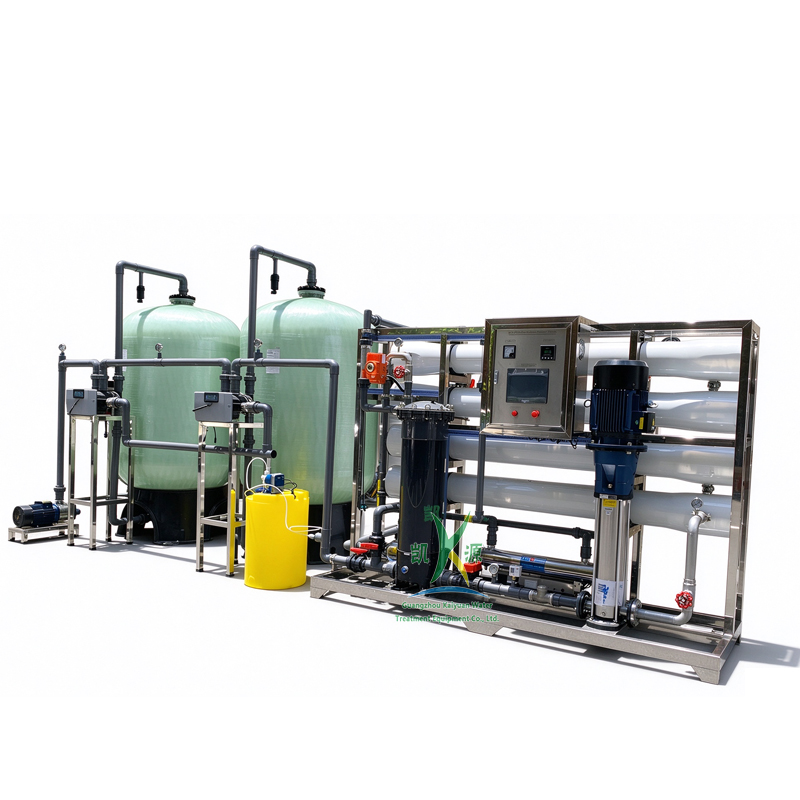

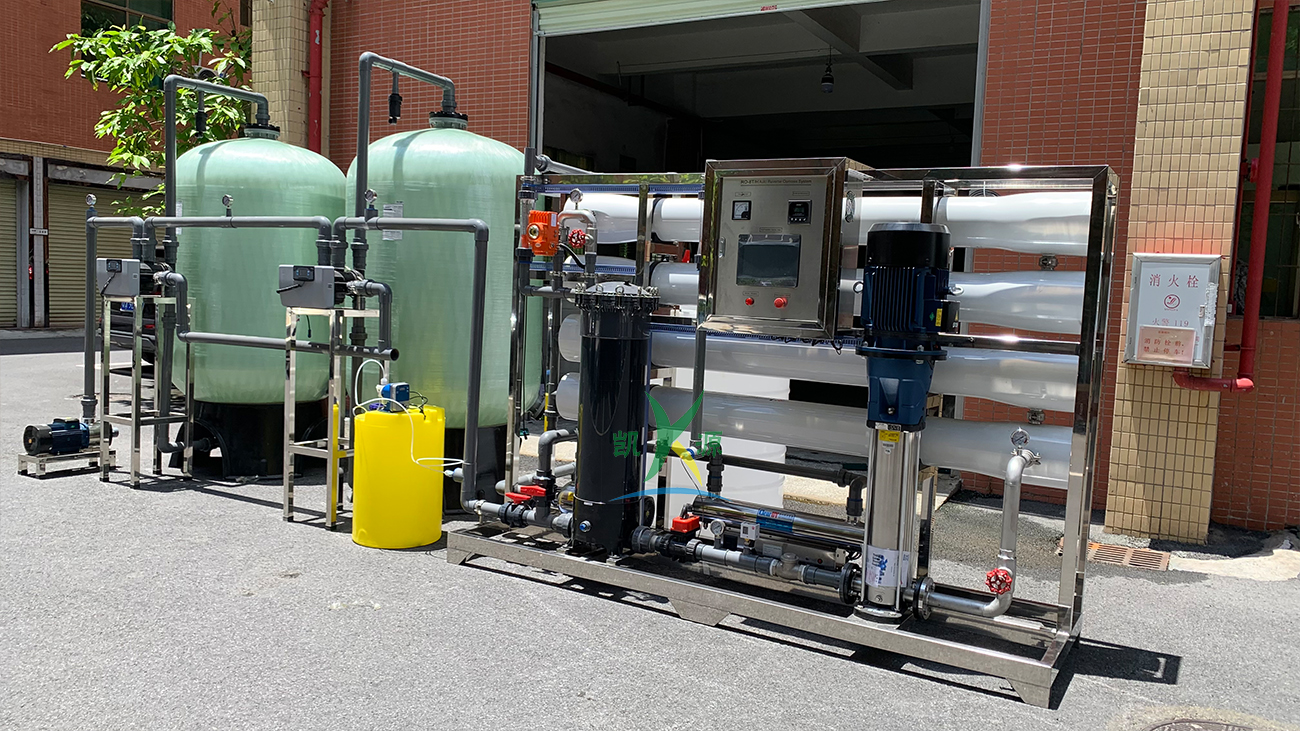

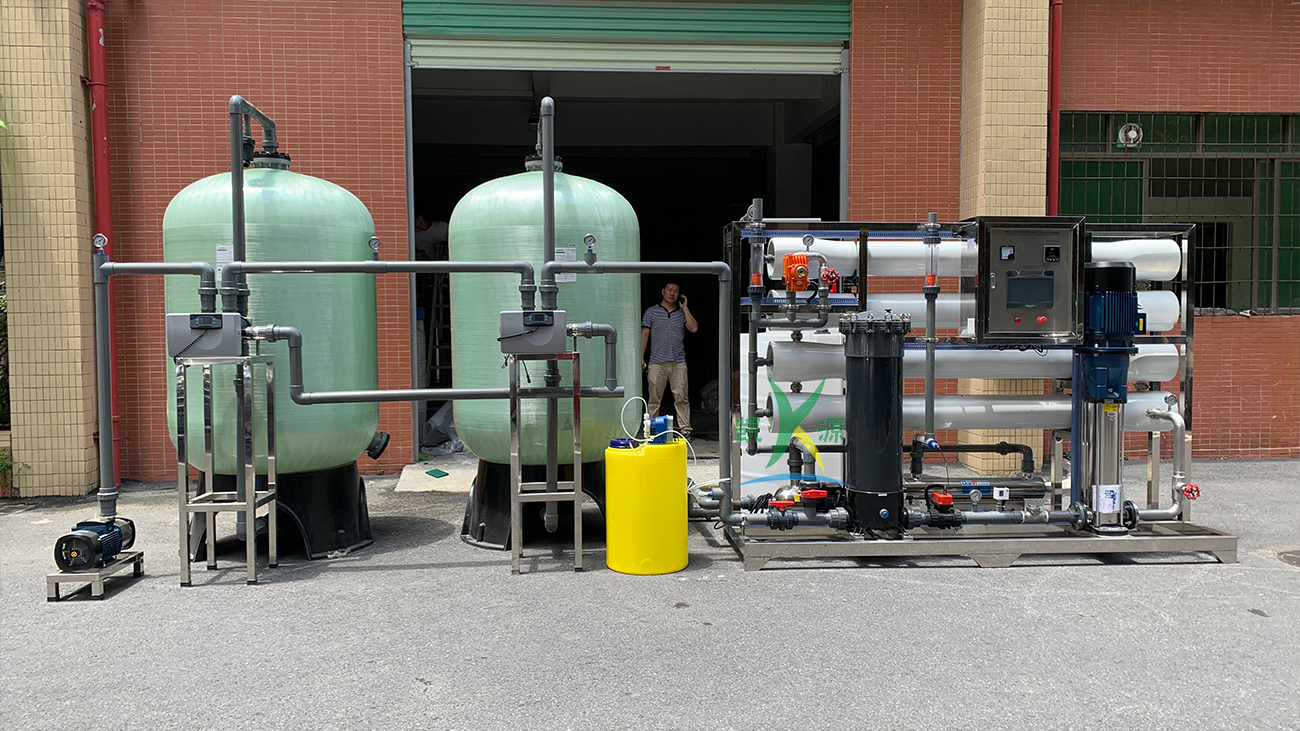

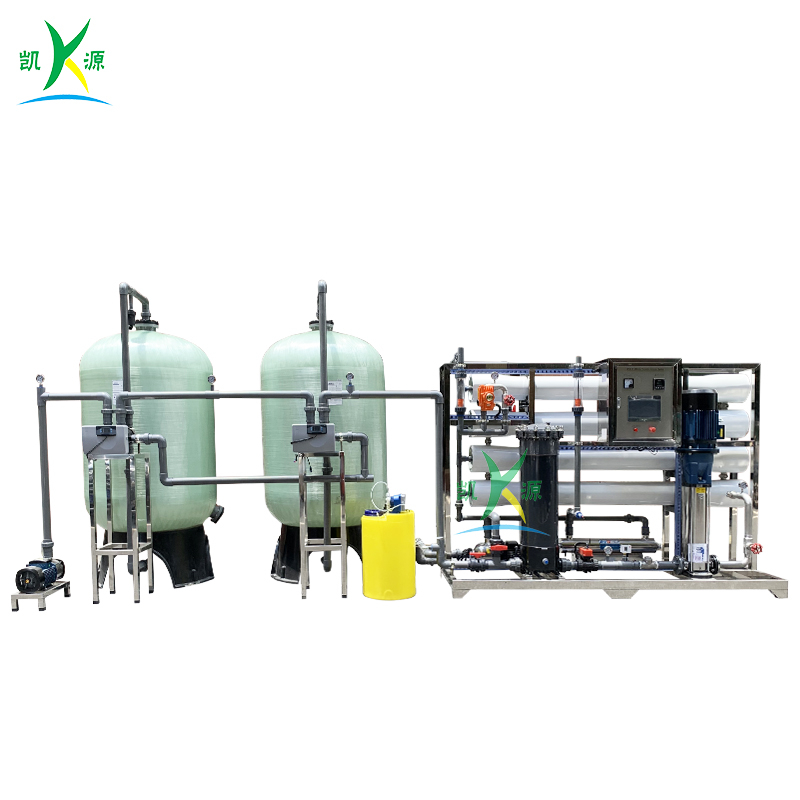

The 8TPH brackish water reverse osmosis system is an integrated RO water treatment solution developed by Kaiyuan Water Treatment for deep well brackish water and high-TDS surface water. Its rated production capacity is 8 cubic meters per hour. The complete unit is equipped with FRP pre-treatment tanks (quartz sand filter + activated carbon filter), automatic control valves, dosing system, high-pressure pump, RO membrane modules and electric control cabinet. It runs fully automatically to remove salt, heavy metals, colloids, suspended solids, bacteria and microorganisms from raw brackish water, turning unqualified brackish water into standard process water or domestic water.

This is a skid-mounted modular system. All pipes and components are pre-assembled and tested in our factory. On-site installation only requires connection of raw water inlet, drain pipe and power supply. It features short installation cycle and easy maintenance, and is a preferred option for medium & small brackish water desalination projects worldwide.

2. Product Description

Process Flow

Raw water booster pump → Quartz sand filter (remove sediment & rust) → Activated carbon filter (remove residual chlorine, organics, color & odor) → Anti-scalant dosing system → Cartridge security filter → RO high pressure pump → RO membrane assembly → Permeate water tank

Key Configuration & Features

• Pre-treatment tanks: FRP tanks with automatic RUNXIN valves, automatic backwash and regeneration, minimum manual operation;
• RO Membrane: Industrial brackish water RO membranes, stable salt rejection and good fouling resistance;
• High pressure pump: Vertical stainless steel high-pressure pump, stable performance and low noise;
• Skid frame: 304 stainless steel skid, corrosion resistant, suitable for outdoor and coastal high-salt environments;
• Control system: PLC touch screen control, real-time monitoring of conductivity, pressure and flow rate, high/low pressure protection and auto start-stop;
• Piping: Industrial UPVC piping, corrosion & pressure resistant, avoid secondary pollution.

Optional Upgrades

According to water quality requirements, we can add EDI module, mixed bed, UV sterilizer, water tank and VFD raw water system. 316 stainless steel piping is available for corrosive raw water.

3. Application Fields

• Domestic water supply renovation for remote mining sites and villages with brackish well water;
• Factory groundwater treatment, boiler feed water, circulating water and process water preparation;
• Agricultural irrigation and seedling breeding water improvement from brackish source;
• Water supply for food processing, electroplating, chemical and optical electronics industries;
• Overseas infrastructure projects, camp water supply and inland brackish water desalination on islands;
• Groundwater purification projects for hotels and resorts.

4. About Kaiyuan Water Treatment, Guangzhou

Kaiyuan Water Treatment is a professional manufacturer with 20 years of experience in the water treatment industry, located in Guangzhou, China. We focus on R&D, production and customization of RO pure water systems, brackish water desalination plants, seawater desalination units, ultra-pure water equipment, water softeners and containerized water treatment systems.

We own a complete production workshop. Tank fabrication, stainless steel frame welding, pipe assembly and full machine testing are all finished in-house. We are not a reseller. Custom design is available based on raw water report, site condition and local power standard. We support non-standard solution design and turn-key water treatment projects both domestically and overseas.

We focus on reliable water treatment solutions. Free water evaluation is available before order. After-sales service includes operation manual, video guidance and remote technical support.

5. Inlet & Outlet Water Quality

Inlet Requirements for Brackish Water

• Raw water type: Deep well groundwater, brackish water, TDS ≤10000ppm;
• Raw water temperature: 5~40℃;
• Raw water SDI＜5, Turbidity＜1NTU, Residual chlorine＜0.1ppm.

Permeate Water Index

Note: Final water quality depends on the customer’s raw water test report. We will select suitable membrane and pre-treatment scheme accordingly.

6. Our Export Strength: 16 Years Overseas Water Treatment Export Experience

Kaiyuan has 16 years of experience exporting water treatment equipment globally. We are familiar with full export workflow: USD quotation, PI, packing, customs declaration, shipping documents and multiple trade terms such as FCA, FOB, CIF. We serve overseas engineering contractors, traders and project owners.

We are familiar with different voltage standards worldwide (220V/380V/415V, 50Hz/60Hz). English operation manuals, English control panel and internationally common spare parts are supplied for convenient local maintenance. Our machines have been exported to Southeast Asia, Africa, Middle East, Latin America and other regions.

Our foreign trade team can provide proforma invoice, packing list, commercial invoice, certificate of origin and all documents for customs clearance. We respond quickly to meet B-side purchasing habits from overseas clients.

7. Overseas Brackish Water Project Cases

• 8TPH Brackish Water RO Project for Mining Site in Nigeria, Africa: Deep well desalination for workers’ domestic water and equipment cooling water;
• Farm Brackish Water Desalination Project in Oman, Middle East: Multiple 8TPH RO units connected in parallel to supply irrigation water for crops;
• Groundwater Treatment Project for Manufacturing Factory in Indonesia, Southeast Asia: 8TPH RO system supplying washing process water;
• Village Water Supply Upgrade Project in Peru, South America: Skid-mounted brackish water RO unit for outdoor installation with simple operation.

For overseas projects, we supply English drawings, English operation tutorials and remote commissioning support. We can also cooperate with local partners for on-site installation service for selected projects.

8. Export Packaging & Delivery Information

Marine Export Packaging Standard

The whole system is packed separately to avoid damage and moisture corrosion during ocean shipment:

• Main skid unit: Wrapped with waterproof film + bubble wrap, packed into IPPC fumigated wooden export crate (IPPC mark meets customs fumigation requirements);
• FRP tanks: Separately protected with bubble wrap & corner guards, fixed on wooden frame to prevent cracking;
• Accessory kit (seals, spare filters, tools, chemical samples): Packed into independent waterproof carton;
• Electric control box: Separate moisture-proof package with desiccant inside to avoid short circuit by sea moisture.

Production & Shipment Schedule

Lead time for standard 8TPH brackish water RO system: 20-30 working days. Customized solutions will be quoted separately. We can deliver cargo to Guangzhou or Shenzhen port, support LCL and FCL sea shipment. Every unit will be fully water pressure tested before delivery, with factory test report and spare parts list provided.
