Oilfield boilers are core thermal energy equipment in oil and gas exploitation, heavy oil thermal recovery, and oil‑gas gathering and transportation processes. They mainly generate high‑temperature and high‑pressure steam to provide stable heat sources for oil displacement, pipeline heat tracing, equipment heating and other working conditions in oilfields. The raw water on oilfield sites generally has the characteristics of high hardness, high salt content, high suspended solids and crude oil impurities. Direct use of untreated water in boilers will easily cause scaling, corrosion, steam carryover and other failures, greatly reducing boiler thermal efficiency, shortening equipment service life, even triggering safety accidents, and increasing oilfield operation and maintenance costs and shutdown losses. With extreme water purification capability, the ultrapure water system can completely remove salts, minerals, impurity ions and pollutants from water. It is a core water treatment solution to ensure the long‑term stable, efficient and safe operation of oilfield boilers, and has been widely used in various boiler systems of onshore oilfields and offshore oil and gas platforms.
Different from ordinary industrial boilers, oilfield boilers feature complex operating conditions, large load fluctuations and strict water quality requirements. Conventional water softeners can only remove calcium and magnesium ions, but fail to eliminate dissolved impurities such as silica, sulfates and chlorides, so they cannot meet high‑grade water standards for oilfield boilers. Major pain points and hazards are listed below:
Scaling: Silica, calcium and magnesium salts precipitate under high temperature inside boilers and form scale deposits on tube walls. This reduces heat transfer efficiency and raises fuel consumption. In severe cases, boiler tubes may overheat, bulge or rupture.
Metal Corrosion: Chloride ions, dissolved oxygen and other substances cause pitting and uniform corrosion on boiler tubes and heat‑exchange components, shortening the service life of boilers and pipelines.
Steam Carryover: Excessive dissolved salts in water lead to water entrainment in steam, degrade steam quality, damage downstream steam‑driven equipment and destabilize thermal recovery operations.
Silica Transportation: Silica volatilizes with steam and forms hard silicate scale on the inner surface of steam turbines and heat exchangers, which is extremely difficult to remove.

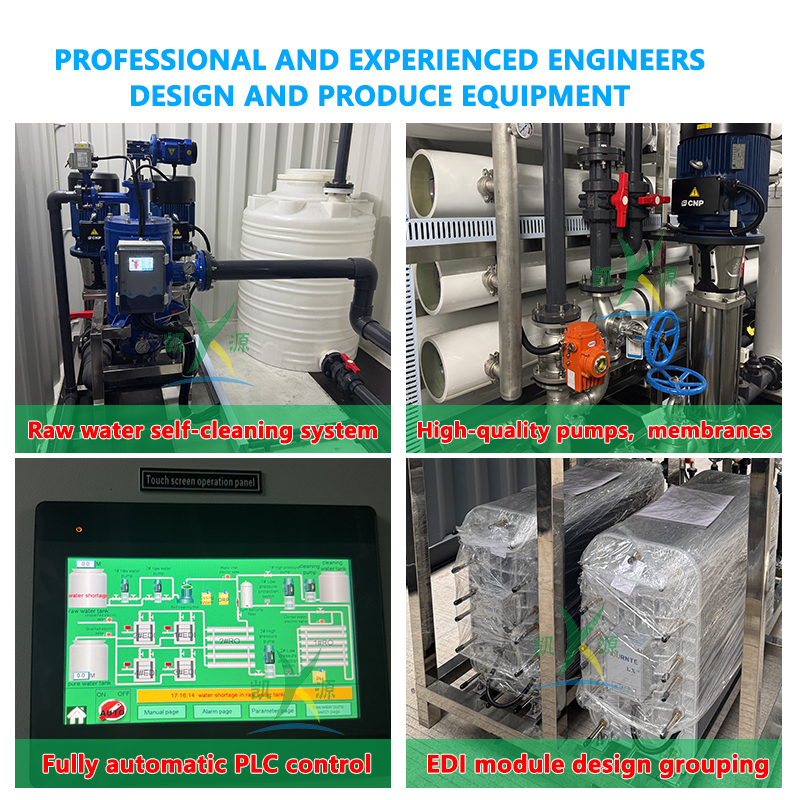

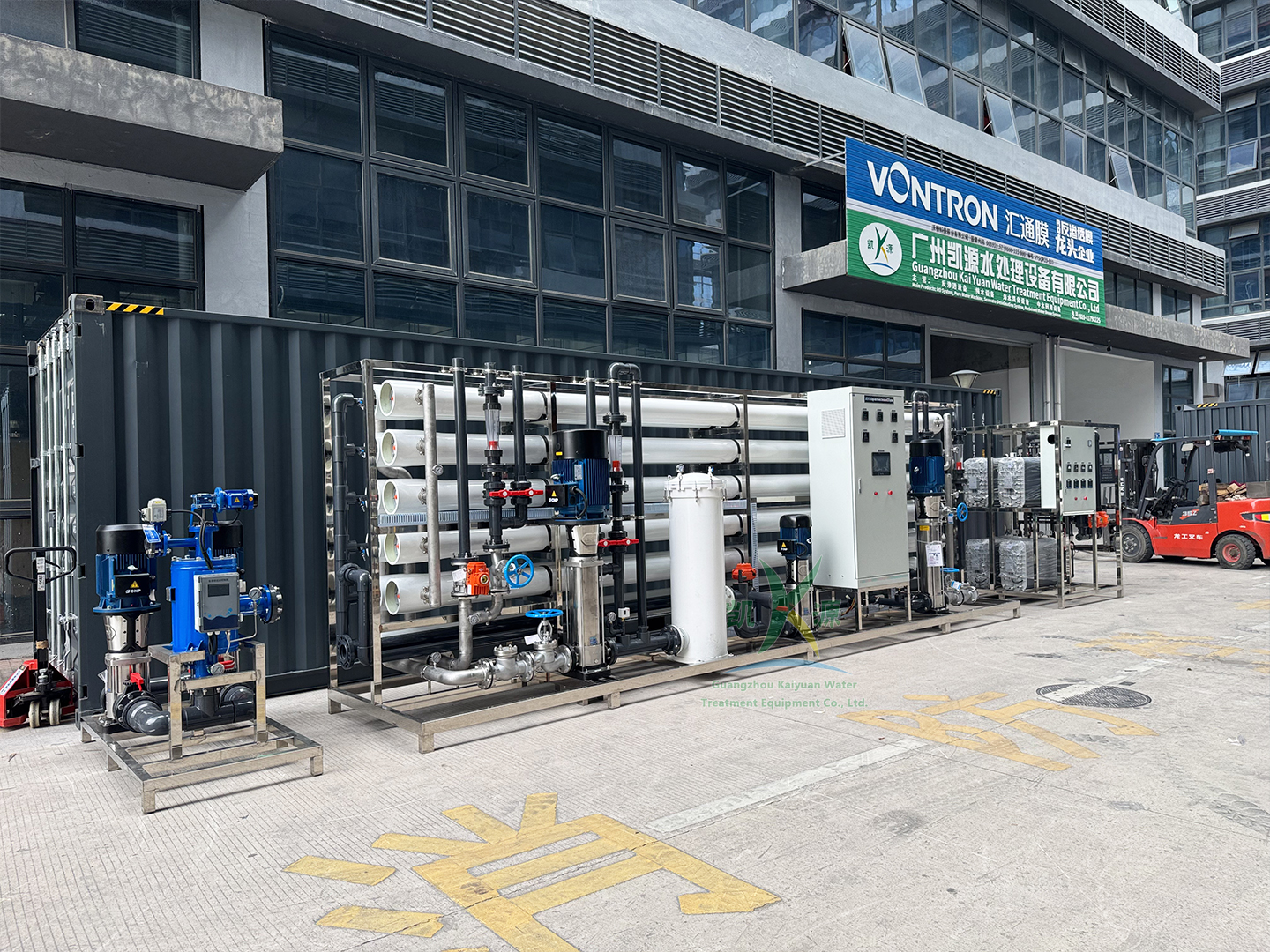

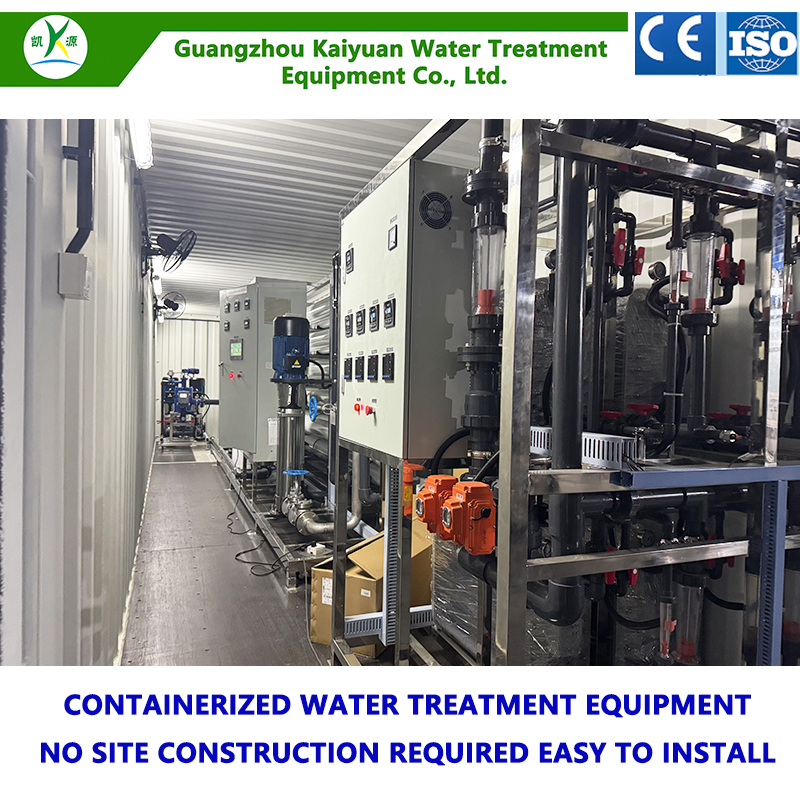

Ultrapure water systems customized for oilfield boiler feedwater usually adopt a combined process of pretreatment, two‑stage reverse osmosis and EDI deep desalination, with modular adjustments according to on‑site raw water quality.
Pretreatment Unit: Multi‑media filter, activated carbon filter and security filter remove suspended solids, colloids, oil contaminants and residual chlorine, protecting reverse osmosis membranes from oil fouling.
Two‑stage RO System: The first‑stage RO removes most salts, colloids and organics. The second‑stage RO further cuts down conductivity and removes most silica.
EDI Module: Without chemical regeneration, EDI continuously eliminates residual trace ions and produces ultrapure water with low conductivity to satisfy strict feed‑water requirements for high‑pressure boilers.
Post‑treatment & Monitoring: On‑line sensors for conductivity, pH value and silica content monitor water quality in real‑time to guarantee stable qualified boiler feedwater.
Greatly reduce scaling and corrosion risks: Almost complete removal of scaling‑corrosive ions such as calcium, magnesium, silica and chloride minimizes boiler scaling and corrosion, extends service life of boilers and heat‑exchange equipment and cuts downtime for maintenance.
Improve thermal energy efficiency: Scale‑free tube walls maintain high heat transfer efficiency and reduce fuel consumption, helping oilfields control operating expenses.
Ensure high‑quality steam supply: Stable water quality prevents steam carryover. Produced steam meets technical requirements for heavy‑oil thermal recovery and steam flooding, and protects critical downstream equipment such as steam turbines.
Auto‑operation for harsh oilfield sites: Fully‑automatic system fits wild‑field and offshore platform conditions with minimum manual intervention. EDI technology reduces acid‑alkali chemical consumption and hazardous waste disposal burden.
Lower long‑term comprehensive cost: Upfront equipment investment brings fewer repairs and replacements as well as lower fuel consumption, realizing long‑term cost reduction and efficiency improvement for oilfield projects.
The ultrapure water system serves as core pretreatment equipment for boiler feedwater. Several points should be noted in real oilfield projects:
Fully evaluate raw‑water quality of oilfield sites. Oily wastewater shall not directly enter ultrapure water equipment; effective oil‑removal pretreatment shall be arranged in advance.
Periodically maintain filter consumables, RO membranes and EDI modules, and calibrate on‑line instruments to sustain stable water production.
Match ultrapure‑water indexes according to boiler pressure grade. High‑pressure boilers impose stricter requirements on silica content and conductivity.
As the oil‑gas industry keeps raising requirements for safety, energy efficiency and environmental protection, traditional softening treatment can hardly meet strict feed‑water standards for high‑pressure oilfield boilers. Ultrapure water systems (two‑stage RO plus EDI) stably deliver high‑quality boiler feedwater, fundamentally solve common problems including scaling, corrosion and poor steam quality, and lower equipment failure risks and overall operating costs. It becomes the preferred feed‑water treatment solution for boilers on onshore oilfields and offshore oil‑gas platforms.
