Investing in a commercial water purification system represents a major operational decision. You need high-purity water to maintain facility operations. You also need it to protect sensitive equipment and meet strict industry standards. Many facility managers focus solely on the central filtration membrane. However, you must look far beyond these basic filters. You need to understand the complete engineering infrastructure. Raw water chemistry can quickly destroy sensitive membranes if pretreatment safeguards fail. You must also consider high-pressure mechanics, complex energy recovery strategies, and compliance-driven wastewater management. This comprehensive guide breaks down the critical operational phases of a modern reverse osmosis plant. You will discover key system components, objective performance metrics, and vital evaluation strategies. These technical insights provide the exact foundation necessary for specifying the right equipment for your facility.
A reverse osmosis plant is an integrated engineering system, not just a standalone filter; its efficiency relies heavily on rigorous pre-treatment to prevent membrane fouling.
System performance is measured by objective metrics: salt rejection rate, recovery rate, and flux rate, which dictate both operating costs and water purity.
Configuration matters: "Stages" are used to maximize water recovery (reducing waste), while "Passes" are used to increase final water purity.
Evaluating a plant requires analyzing feed water Total Dissolved Solids (TDS), required capacity, and local regulations regarding concentrated brine disposal.
Natural osmosis dictates how fluids behave. It occurs across a semi-permeable barrier. Water naturally moves from a dilute solution into a highly concentrated one. This movement attempts to equalize the mineral concentration on both sides. It is a passive biological phenomenon. We see it constantly in nature, from plant roots to human cells.
A commercial system reverses this natural phenomenon entirely. It applies intense external mechanical pressure to the concentrated side. This physical force must overcome the natural osmotic pressure. It violently forces water molecules backward through the membrane. It leaves the dissolved salts and impurities trapped behind in a concentrated reject stream.
Rejection mechanics rely on complex molecular interactions. Membrane pores easily allow tiny water molecules to pass. However, they block larger organic contaminants entirely. You might wonder why tiny single ions like sodium and chloride fail to pass. These dissolved ions naturally attract surrounding water molecules. They form large hydration shells. These bulky hydration shells artificially inflate the ion's physical size. This prevents them from slipping through the ultra-tight polyamide membrane structure.
An industrial system is far more than a simple filter. It operates as a continuous, dynamic chemical processing unit. You must understand each component to optimize its overall performance.

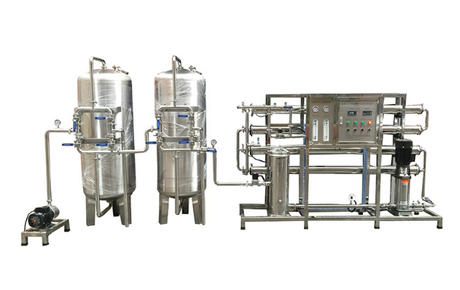

This phase acts as your frontline defense. It prevents irreversible mechanical damage and scaling. Raw water rarely enters the system safely. Typical setups include multi-media filters (MMF) to trap suspended solids. They often utilize carbon filtration to eliminate free chlorine. They also incorporate chemical dosing systems. These inject precise amounts of antiscalants to prevent mineral crystallization.
Think of these specialized pumps as the engine driving the entire process. Different feed waters require drastically different pressures. Tap water needs relatively low pressure. Conversely, brackish or seawater requires massive mechanical force. Seawater pumps often generate between 50 and 80 bar to push water effectively. Centrifugal pumps generally handle massive flows, while positive displacement pumps suit smaller, high-pressure applications.
The system relies heavily on standard spiral-wound Thin-Film Composite (TFC) membranes. These feature an ultra-thin polyamide active layer. Industry-standard dimensions provide excellent modular scalability. You will typically specify 4-inch or 8-inch diameters. Standard lengths measure exactly 40 inches. This strict standardization makes routine maintenance and parts replacement much easier.

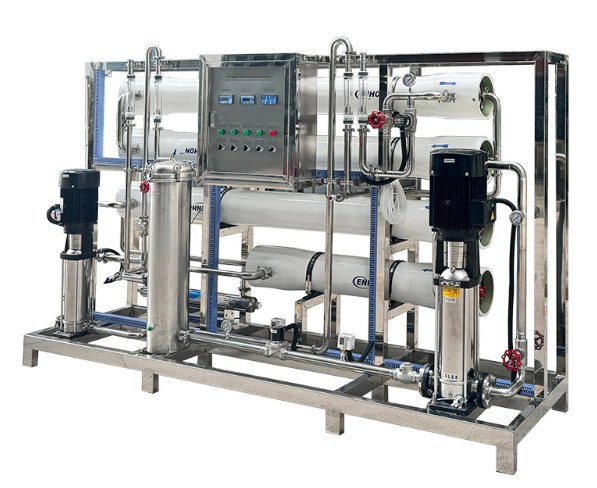

A sturdy framework houses the heavy equipment. We typically construct this skid from epoxy-coated carbon steel or stainless steel. It integrates advanced Programmable Logic Controllers (PLCs). These PLCs automate the continuous monitoring of feed pressures, flow rates, and water quality parameters. Human Machine Interfaces (HMIs) display real-time metrics for plant operators.
Highly pure permeate water exits the membrane in a slightly acidic state. It aggressively strips ions from surrounding materials. If left untreated, it severely corrodes downstream metal piping. Post-treatment steps balance the pH safely. Facilities often use calcite contactors to reintroduce necessary minerals before final distribution.
System Component | Primary Function | Typical Materials / Specifications |
|---|---|---|
Pre-treatment Array | Removes sediment, chlorine, and scaling minerals | MMF, Activated Carbon, Liquid Antiscalants |
High-Pressure Pump | Overcomes natural osmotic pressure | Duplex stainless steel, 15-80 bar capacity |
Membrane Elements | Rejects dissolved solids and hydrated ions | Thin-Film Composite (TFC), standard 8" diameter |
PLC Control Panel | Automates monitoring and dynamic system controls | Microprocessors, integrated HMI touchscreens |
You cannot manage what you cannot measure. System performance relies on specific, objective mathematical metrics. These calculations govern water purity and overall operational efficiency.
This critical percentage measures dissolved solids removed from the raw feed water. Industrial systems usually target aggressive efficiencies. Most plants expect rejection rates between 95% and 99%+. You calculate this by comparing the feed water conductivity against the final permeate conductivity.
This ratio represents the purified permeate produced versus the total feed water consumed. Higher recovery means you waste far less water. However, pushing this rate too high causes problems. It concentrates salts heavily in the reject stream. This increases your scaling risks exponentially.
Configuration logic dictates your system design. Engineers arrange pressure vessels specifically to manipulate either recovery or purity.
Stages: You route the reject water (concentrate) from the first membrane set into a second set. This squeezes out extra pure water from the initial waste. It strictly optimizes the system's recovery rate.
Passes: You route the pure water (permeate) from the first membrane set into a second set. This acts as a double-purification process. It strictly optimizes the final water quality and purity.
This metric measures the specific volume of water passing through the membrane material. We calculate it per square foot per day (GFD). Operating at an aggressively high flux rate forces too much water through tiny areas. This inevitably accelerates membrane fouling and reduces lifespan.
Industrial purification systems rarely fail due to membrane defects. They fail almost exclusively due to poor pre-treatment protocols. You must manage several critical implementation risks.
You cannot process raw water effectively without strict preparation. The ideal feed water must have a Silt Density Index (SDI) strictly under 3.0. This metric evaluates the colloidal and particulate fouling potential. Exceeding this strict limit guarantees rapid membrane degradation. Technicians measure SDI by timing how fast water passes through a standard 0.45-micron test filter.
Plant operators face three continuous threats to their membrane infrastructure:
Scaling: Hard mineral build-up coats the membrane surface. Calcium carbonate and silica are the most common culprits. This requires precise, continuous antiscalant chemical dosing.
Fouling: Organic matter, colloidal particles, or biological growth clogs the flow channels. You must implement routine chemical cleaning regimens to clear this biological slime.
Chemical Attack: Free chlorine easily destroys the sensitive polyamide active layer. Even trace amounts cause irreversible oxidation. Strict dechlorination via carbon filters or sodium bisulfite injection is completely non-negotiable.
Plant operators must consistently track normalized data. Raw operational data fluctuates wildly based on daily temperature shifts and feed variations. Normalization mathematically adjusts these variables to a standard reference point. A performance deviation of +/- 15% from the normalized baseline signals immediate trouble. Whether observed in feed pressure or flow rate, this strict threshold triggers a Clean-In-Place (CIP) protocol. Ignoring this trigger leads directly to permanent membrane compaction.
Operational Area | Best Practice | Common Mistake |
|---|---|---|
Data Tracking | Log normalized data daily to track true membrane health. | Relying on raw flow meters without adjusting for water temperature. |
Dechlorination | Use continuous ORP monitoring to ensure zero free chlorine. | Assuming municipal water municipal chlorine levels remain static. |
System Shutdown | Flush membranes with permeate water before weekend shutdowns. | Leaving highly concentrated brine stagnant inside pressure vessels. |
Purchasing an industrial system requires comprehensive upfront engineering. You cannot select equipment based on flow rate alone. You must align the system architecture with your specific environmental conditions.
You must strictly categorize your equipment needs based on feed water Total Dissolved Solids (TDS).
Municipal/Tap Water: Usually contains less than 1,000 ppm TDS. These stable sources require standard low-pressure setups.
Brackish/Well Water: Typically ranges up to 5,000 ppm TDS. These sources fluctuate seasonally. They demand robust pre-treatment arrays and moderate pump pressure.

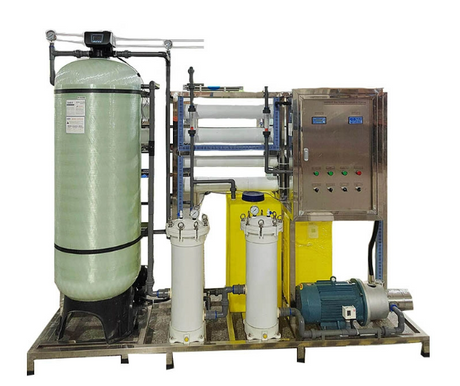

Seawater: Often reaches up to 45,000 ppm TDS. Processing this heavy load requires specialized corrosion-resistant materials. It demands duplex stainless steel components and extreme mechanical pressure.
Running a heavy-duty reverse osmosis plant demands massive electrical power. For large-scale or high-TDS operations, you must evaluate Energy Recovery Devices (ERDs). Integrating advanced pressure exchangers is absolutely critical. They capture raw hydraulic energy from the highly pressurized reject stream. They seamlessly transfer this energy directly to the incoming feed water. This elegant technology can easily halve your overall electricity consumption.
You must frame wastewater properly during the design phase. It is not just an efficiency loss. It represents a strict regulatory compliance variable. You must dispose of concentrated reject brine according to local environmental laws. High-recovery systems produce highly concentrated waste streams. You may require evaporation ponds or specialized municipal discharge permits to manage this heavy brine legally.
Always initiate a comprehensive laboratory water analysis first. Guessing your water chemistry guarantees catastrophic system failure. Consult experienced water treatment engineers with this lab data. They will help you specify the exact pre-treatment Bill of Materials (BOM). You must complete these engineering steps before ever selecting the main pressure vessels.
A well-engineered system provides a highly effective, scalable solution for industrial purification needs. It secures your facility's operational integrity by removing aggressive contaminants efficiently. However, success requires acknowledging the complexity of the entire system architecture.
You must engineer the entire setup precisely for your specific raw feed water chemistry.
Long-term operational success depends heavily on the quality of your pre-treatment design.
Commit to routine normalized data monitoring to track hidden performance degradation.
Execute proactive maintenance protocols, including timely CIP procedures, to protect your membrane lifespan.
Engage certified engineers to analyze your water source comprehensively before initiating any equipment procurement.
By respecting these engineering principles, your purification infrastructure will operate reliably for years to come.
A: Commercial systems achieve much higher efficiency than residential units. Depending on staging configurations and feed water chemistry, industrial setups often reach 50% to 85% recovery rates. This means they discharge only 15% to 50% of the intake water as concentrated brine. Specialized systems can push this efficiency even higher with advanced staging.
A: Industrial elements typically last between 3 to 5 years under standard conditions. However, achieving this lifespan requires flawless execution. You must maintain strict pre-treatment protocols to prevent mineral scaling. You also need routine chemical cleaning intervals triggered strictly by accurate normalized data tracking.
A: Yes, it is strictly necessary. Engineers cannot accurately specify membrane types, pump sizing, or pre-treatment configurations without hard data. You need a complete ion breakdown and an accurate Silt Density Index (SDI) test of your specific water source to design a functional, lasting system.
