How Can Scaling and Fouling Be Prevented in an EDI System?

Views: 0     Author: Site Editor     Publish Time: 2026-07-31      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Installing a commercial water purification setup requires high capital expenditure. Facility managers expect excellent returns on this investment. While this technology eliminates hazardous chemical regeneration, its modules remain incredibly sensitive to feed water impurities. Scaling and fouling act as the primary culprits behind premature module failure. Inorganic precipitation drives scaling. Organic and colloidal blockages cause physical fouling. Together, they increase electrical consumption and degrade final product water quality. You cannot ignore these persistent operational threats.

Our objective is to provide facility managers and engineers an evidence-based framework. We will help you prevent, detect, and mitigate degradation effectively. Protecting your equipment demands a deep understanding of upstream water management. Proactive monitoring practices will save your plant significant downtime. Let us explore how you can secure your investment and maintain continuous high-purity water production.

Key Takeaways

  • Prevention begins upstream: Over 80% of EDI scaling and fouling issues are rooted in inadequate pre-treatment (e.g., failing RO systems or poor CO2 removal).

  • Distinct degradation mechanisms: Scaling increases electrical resistance and causes localized overheating, while fouling physically restricts flow channels and reduces ion exchange kinetics.

  • Proactive monitoring is non-negotiable: Tracking voltage spikes at a constant current is a reliable early indicator of scale formation before product water quality drops.

  • Irreversible damage risks: Chronic scaling leads to under-deposit corrosion and permanent resin degradation, forcing costly module replacement rather than routine maintenance.

The Operational and Financial Impact of EDI Degradation

Engineers must first define the exact threats to system integrity. We distinguish clearly between scaling and fouling. Scaling involves calcium, magnesium, and silica precipitation. This mineral buildup usually occurs inside the concentrate chamber. The local pH rises during operation, causing minerals to drop out of solution. Fouling happens when organics, colloids, and bio-films coat the resin. These contaminants also blind the ion-exchange membranes physically. Both issues compromise the internal flow paths.

These impurities trigger a dangerous chain reaction of failure. A feedwater impurity spike initiates the problem. This leads directly to localized scaling inside the channels. Electrical resistance increases rapidly across the affected module. The system forces current through a smaller effective area. Localized overheating occurs immediately. This heat eventually burns and melts the delicate resin beads. Channeling follows this thermal damage. Water bypasses the active resin entirely. Final module failure becomes inevitable at this stage.

These cascading failures carry immense financial consequences. Your facility will face drastically increased energy consumption. The power supply demands higher voltage to push current through scaled channels. You will experience disruptive, unplanned production downtime. Furthermore, destroyed Electrodeionization water treatment modules carry a massive replacement cost. Repairing burned membranes is physically impossible. You must buy entirely new units. Protecting the modules from these threats is essential for financial stability.

Establishing Strict Feed Water Quality Baselines

Engineers must treat this process as a polishing technology. It is never a primary filtration step. You must deliver exceptionally clean water to the module. We rely on standard industry metrics for comprehensive protection. Designing a system without strict baselines invites rapid mechanical failure.

Let us review the critical parameter thresholds. Ignoring these specific limits guarantees rapid equipment degradation. You must monitor these values continuously.

Feedwater Parameter

Maximum Target Threshold

Primary Risk if Exceeded

Total Hardness (as CaCO3)

< 1.0 ppm

Rapid calcium and magnesium scaling in concentrate channels

Silica (SiO2)

< 0.5 ppm

Irreversible silica scaling across resin beds

Total Organic Carbon (TOC)

< 0.5 ppm

Organic fouling and bio-film proliferation

Carbon Dioxide (CO2)

< 5 ppm

Reduces silica and boron removal efficiency drastically

Notice the highly stringent carbon dioxide requirement. High CO2 heavily loads the module electrically. The system wastes current ionizing the gas. It reduces the capacity to remove weakly ionized silica and boron. The resin beds exhaust prematurely under this unnecessary load.

We strongly warn operators against dangerous operational assumptions. Do not assume your reverse osmosis permeate is automatically ready for polishing. RO membranes degrade over time. Their rejection rates drop slowly. You cannot rely on visual inspections. Continuous inline monitoring is absolutely vital. Failing to track these baseline metrics leaves your equipment completely vulnerable.


Optimizing Pre-Treatment Architecture (The First Line of Defense)

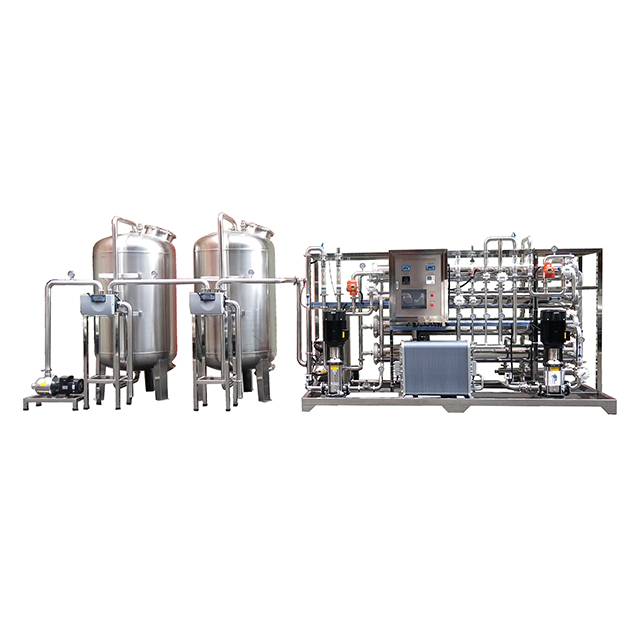

Robust pre-treatment forms your first line of defense. You must evaluate your overall filtration architecture carefully. Many facilities debate using single-pass versus double-pass reverse osmosis. Single-pass RO works for excellent municipal water sources. However, double-pass RO is often necessary for high-hardness feedwater. High total dissolved solids also demand this robust approach. A double-pass design guarantees module longevity. It provides an essential buffer against sudden municipal water quality fluctuations.

Membrane degassing plays an equally critical role. We recommend installing membrane contactors between the RO and polishing steps. These specialized devices strip dissolved CO2 from the water stream. Removing CO2 lowers the conductive load significantly. The module can redirect its electrical current toward splitting water. This improves continuous resin regeneration. It prevents dangerous downstream scaling effectively.

Upstream water softening provides another important layer of security. Softeners remove calcium and magnesium ions before the RO membranes. However, you must use chemical antiscalants cautiously. Antiscalants prevent mineral precipitation in the RO stage. Yet, excessive antiscalant carryover can become a severe foulant itself. Long-chain polymers bind to the ion-exchange membranes. Always measure chemical dosing precisely. Keep these additives well below detrimental threshold levels. Regular calibration of dosing pumps prevents catastrophic fouling events.

Performance Monitoring: Early Detection Frameworks

You need robust early detection frameworks to save your equipment. Relying on visual inspections or scheduled maintenance alone is insufficient. Voltage and current tracking offer the most reliable operational data. Scaling inside concentrate channels increases electrical resistance steadily. An Edi Water Treatment system might require continuously higher voltage over time. If it needs more voltage to maintain the same operating current, scaling has started. This represents your absolute earliest warning sign.

Differential pressure monitoring identifies physical blockages accurately. You should track pressure drops between feed and product streams. We call this metric delta-P (ΔP). Rising differential pressure indicates physical fouling. Colloidal particles or biological growth restrict the narrow flow paths. The feed pump must work harder to push water through. Monitoring this pressure prevents unexpected membrane ruptures.

Many operators watch product water resistivity exclusively. This represents a very common industry mistake. A resistivity drop from 16 MΩ-cm to 10 MΩ-cm is a lagging indicator. By the time final water quality drops, severe damage has already occurred. The internal resin has likely exhausted or burned. You missed the early warning signs entirely.

We highly recommend aggressive data logging integration. Tie these electrical and pressure parameters into your facility SCADA system. Configure the Building Management System (BMS) to track trends automatically. Set automated alarm triggers for immediate intervention. Engineers can respond to a voltage spike weeks before resistivity declines.

Maintenance SOPs and Chemical Cleaning Protocols

Structured standard operating procedures prevent catastrophic module failures. Ad hoc maintenance approaches always lead to expensive equipment replacements. We advise implementing a rigid maintenance cycle for your equipment. Strict adherence extends the operational lifespan of the internal membranes.

  1. Daily operational checks: Monitor voltage, current, and pressure differentials systematically every shift.

  2. Monthly data reviews: Analyze historical trends to spot gradual resistance increases or pressure drops.

  3. Annual preventive interventions: Schedule chemical cleanings before severe performance symptoms appear.

Clean-In-Place (CIP) execution demands careful chemical selection. The exact cleaning solution depends on the specific foulant. Low-pH cleaning targets inorganic mineral scale effectively. You should use dilute hydrochloric acid (HCl) for this process. The acid dissolves hardened calcium and magnesium deposits. High-pH cleaning handles organic fouling and biological growth. We use sodium chloride and sodium hydroxide solutions here. The high pH saponifies organics and kills bacterial colonies.

Engineers must understand the strict limitations of chemical cleaning. CIP can recover performance from mild fouling easily. However, severe localized scaling causes permanent structural damage. Hard scale forces current to bypass blocked sections. Unblocked sections receive excessive current and overheat. This localized heat melts the internal ion-exchange membranes. No chemical cleaning protocol can fix this physical thermal destruction. You must prevent severe scale from forming initially.

Evaluating EDI System Upgrades: When to Replace vs. Maintain

Plant engineers often struggle with repair versus replacement decisions. Deciding when to abandon an old module is difficult. You need a logical framework to guide this operational choice. Understanding the module lifecycle prevents wasted maintenance labor.

Operational Condition

Recommended Action

Engineering Reasoning

Predictable, slow performance degradation

Maintain (Execute CIP)

Routine chemical cleaning restores original operating parameters fully.

Module is mid-lifecycle with mild fouling

Maintain (Execute CIP)

Remaining resin lifespan justifies ongoing chemical intervention.

Irreversible voltage spikes despite cleaning

Replace Module Entirely

Indicates severe internal scaling and permanent membrane thermal damage.

Visible housing discoloration or thermal damage

Replace Module Entirely

Structural integrity is compromised. High risk of internal short circuits.

Frequent CIP disrupting production schedules

Evaluate Modern Upgrades

Current module design cannot handle existing feed water impurity levels.

Evaluate modern upgrades carefully when replacing old components. Do not blindly purchase the exact same legacy model. Look for modules designed with thicker internal flow channels. Thicker channels resist physical fouling much better. They allow small particulates to pass through harmlessly.

You should also seek advanced current distribution features. Modern designs minimize localized scaling hot-spots intelligently. They spread the electrical load evenly across the entire resin bed. Better engineering directly extends the operational lifespan of your investment. Upgrading pre-treatment alongside the module replacement ensures long-term success. Always consult experienced water treatment professionals during this transition.

Conclusion

Preventing scaling and fouling fundamentally requires rigorous upstream water management. Proactive electrical monitoring serves as your absolute best operational defense. Do not wait for product water quality to decline. Intervening only after resistivity drops guarantees irreversible module damage. You must track voltage and pressure trends daily.

Facility managers should schedule a comprehensive feed water audit immediately. Conduct a detailed performance review with a qualified water treatment engineering team. Establish customized operational baselines for your specific facility. Invest heavily in pre-treatment technologies like membrane degassing. Better data collection and strict maintenance routines today will prevent catastrophic equipment failures tomorrow.

FAQ

Q: How often should an EDI module be chemically cleaned?

A: In a properly designed system, cleaning should only be required every 1 to 2 years. If cleaning is required quarterly or monthly, the upstream RO system is failing to meet feedwater specifications.

Q: What is the difference between fouling and scaling in an EDI system?

A: Scaling refers to inorganic minerals (like calcium and magnesium) precipitating due to electrical and pH changes in the concentrate stream. Fouling refers to organic matter, colloids, or bacteria physically blocking the resin beds and membrane surfaces.

Q: Can an EDI module recover from severe scaling?

A: Rarely. While mild scaling can be dissolved with a low-pH CIP, severe scaling causes "hot spots" that permanently melt or rupture the internal ion-exchange membranes, requiring complete module replacement.

Q: Why does increased CO2 in feedwater cause EDI scaling?

A: High CO2 consumes the electrical current meant for splitting water (which regenerates the resin). This reduces the system's efficiency, forcing it to work harder and creating conditions in the concentrate chamber where scaling is highly probable.
