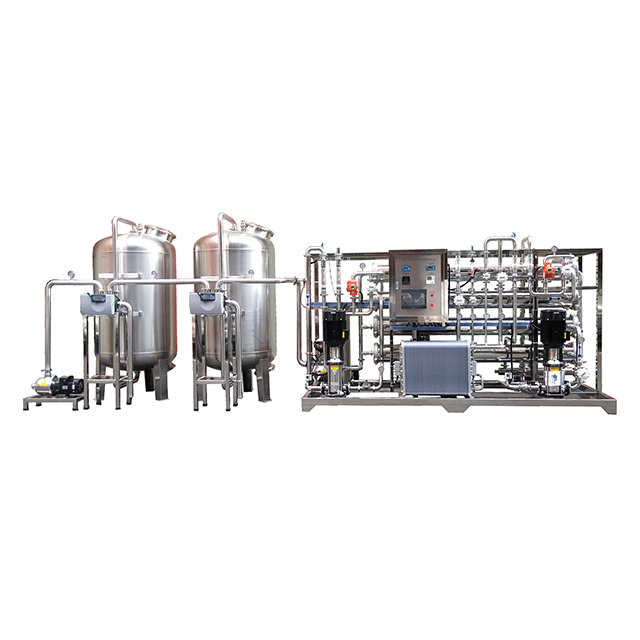

Transitioning from traditional mixed-bed ion exchange to an EDI system shifts operational focus. It moves you away from chemical regeneration toward precise electrical and hydraulic sizing. Sizing an industrial EDI system involves much more than a simple flow rate calculation. It demands a careful balance of feed water chemistry, purity targets, and DC power capabilities. You must align these critical elements properly. This alignment ensures predictable and continuous operation across your entire facility. This guide breaks down the essential engineering criteria and pretreatment dependencies you need to understand. We explore the specific risk factors involved in specifying an electrodeionization setup. You will learn how to meet stringent industrial standards effectively. We help you specify equipment accurately without over-capitalizing on unnecessary capacity. By mastering these sizing variables, you protect your downstream manufacturing processes. You also ensure your water treatment infrastructure remains robust, efficient, and reliable for years.

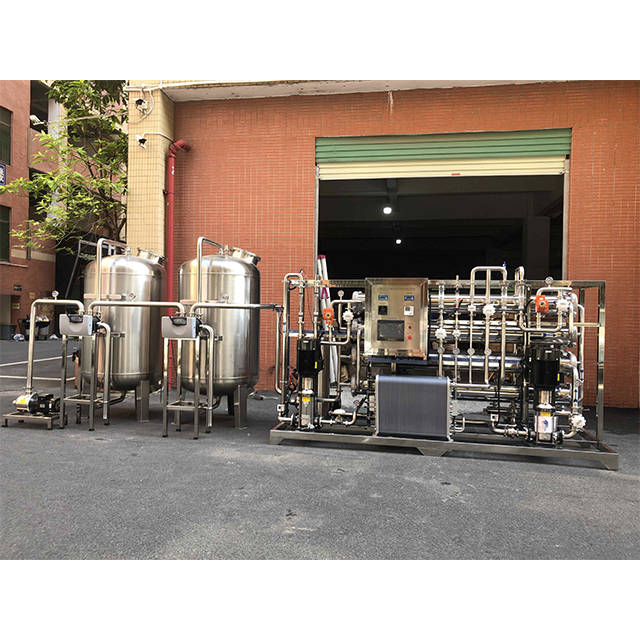

EDI system sizing requires evaluating Feedwater Conductivity Equivalent (FCE), not just standard conductivity.
Accurate flow rate profiling (minimum, nominal, and peak) determines the number of active EDI stacks required, as under-flowing an EDI module can cause internal overheating.
Reverse Osmosis (RO) integration is non-negotiable; whether you need single or double-pass RO directly impacts the size and lifespan of the EDI unit.
Power supply specification (DC voltage/amperage) must scale proportionally with the ionic load of the feed water to maintain target resistivity.
You must define exact purity targets based on your specific application. Semiconductor plants typically demand 18.2 MΩ.cm ultrapure water. This requires parts-per-trillion purity levels. Pharmaceutical facilities require strictly controlled USP Purified Water standards for continuous deionization. You also need to establish acceptable silica and boron reduction thresholds. These elements ionize weakly in water. They remain notoriously difficult to remove completely. These specific quality targets dictate the internal design of your equipment. They determine how many membrane polishing stages you ultimately need to achieve success.
Map out your baseline, peak, and future flow rate requirements. Engineers typically measure these flows in gpm or m³/h. Accurate mapping ensures you size the system for actual facility demands. You must avoid relying on rough estimates.
Warning/Reality Check: We must highlight the danger of over-sizing your equipment. EDI stacks require a specific minimum flow to dissipate internal electrical heat. Sizing strictly for future maximums risks module failure during current low-demand periods. Under-flowing the stacks causes internal water to boil. This thermal event permanently damages the delicate ion exchange resins. You must install bypass lines or recirculation loops if your flow demands fluctuate significantly.
You must calculate the total ionic load entering your equipment. Feedwater Conductivity Equivalent (FCE) measures this exact load. FCE accounts for standard conductivity plus the hidden ionic contributions of carbon dioxide (CO2) and silica. A standard conductivity meter ignores these weakly ionized gases. However, they place a massive burden on the electrical regeneration process.
Manufacturers enforce strict limits on this metric. Your FCE typically must remain below 40 µS/cm to guarantee optimal module life. Exceeding this limit overwhelms the direct current capabilities. The resin beads exhaust faster than the electrical field can regenerate them.
FCE Composition Chart
Component |
Measurement Method |
Impact on System Capacity |
|---|---|---|
Standard Conductivity |
In-line conductivity probe |
Consumes base electrical load |
Dissolved CO2 |
Titration or calculated via pH/Alkalinity |
Rapidly exhausts anion resin capacity |
Silica (SiO2) |
Laboratory analysis |
Competes directly against other anions |
Total required flow dictates the number of EDI blocks operating in parallel. A well-designed Edi Water Treatment setup distributes water evenly across these stacks. Proper hydrodynamics prevent channeling inside the resin beds. Channeling allows untreated water to bypass the electrical field entirely.
Engineers target specific recovery rates during system design. These rates usually fall between 90% and 95%. You must calculate the concentrate stream flow accurately. Proper routing of this reject stream prevents unnecessary water waste. Many designs recirculate a portion of this concentrate back to the upstream RO system. This strategy improves overall plant water efficiency.
An industrial Electrodeionization water treatment system is only as reliable as its upstream RO pretreatment. Water entering the unit must meet incredibly strict quality parameters. Any deviation causes rapid performance degradation.
Single-Pass RO: This configuration proves sufficient when municipal feed water has low alkalinity. It works well when total dissolved solids (TDS) remain naturally low.
Double-Pass RO: You must use this design when elevated CO2 and hardness threaten the downstream stacks. It provides a robust safety net against seasonal water quality shifts.
Membrane Degassing: Engineers often pair degassers alongside single-pass RO. This removes dissolved CO2 efficiently without requiring a bulky second RO pass.
You must identify the maximum allowable hardness entering the EDI unit. Industry standards typically mandate keeping total hardness below 1.0 ppm (measured as CaCO3). Calcium and magnesium ions behave aggressively in electrical fields.
Implementation Risk: Unexpected spikes in feed hardness create severe operational problems. Localized high-pH zones inside the module cause calcium carbonate to precipitate. This scaling quickly fouls the ion exchange resin within the stack. Severe scaling restricts water flow and increases electrical resistance. This fouling necessitates aggressive chemical cleaning. It ultimately causes expensive production downtime.
Standard Pretreatment Limits
Parameter |
Maximum Allowable Limit |
Primary Consequence of Exceeding |
|---|---|---|
Total Hardness (as CaCO3) |
< 1.0 ppm |
Internal membrane scaling |
Total Chlorine |
< 0.05 ppm |
Irreversible resin oxidation |
Total Organic Carbon (TOC) |
< 0.5 ppm |
Resin fouling and microbial growth |
Feedwater Conductivity Equivalent directly determines your required electrical current. Higher ionic loads require higher amperage. This current continuously drives dissolved ions through the selective membranes. If your amperage falls too low, the resin beads saturate. The system will quickly lose its ability to produce ultrapure water.
You must select standard or oversized power supplies based on historical water quality data. Seasonal fluctuations often require additional amperage overhead. Here is the standard decision framework for sizing your DC rectifier:
Analyze historical seasonal shifts in municipal feed water conductivity.
Calculate the absolute maximum FCE during known worst-case scenarios.
Select a DC rectifier capable of exceeding peak load requirements by at least 15%.
Ensure the rectifier features ultra-low output ripple to protect membrane integrity.
Voltage scales directly based on the number of cell pairs in your chosen stack. A larger stack requires higher voltage to push current across wider distances. The resistivity of the product water also influences voltage demands heavily.
As water becomes purer, its electrical resistance increases significantly. Ultrapure water acts as a strong electrical insulator. Your power supply must deliver sufficient voltage to overcome this extreme resistance. High voltage ensures continuous electrochemical splitting of water molecules into H+ and OH- ions. These ions continuously regenerate the internal resin beads.
Footprint considerations play a massive role for skid-mounted units. Industrial floor space carries high value. Fortunately, modern stacks offer compact vertical orientations. This modularity allows engineers to build dense, space-saving skids.
Many critical facilities utilize an "N+1 redundancy" strategy. You install one extra stack directly on the operational skid. This approach allows scheduled maintenance rotations. You can isolate one module while the rest continue operating normally. You never have to halt active production. Modularity ensures technicians can swap exhausted modules quickly and safely.
Strict standard operating procedures (SOPs) keep pharmaceutical and power-generation plants running smoothly. Plant operators must continuously monitor flow rates, voltage readings, and differential pressures. You cannot manage these systems using a "set and forget" mentality.
Daily logging of these metrics prevents catastrophic membrane failures. Routine data analysis helps you predict exactly when modules require preventative maintenance. Eliminating hazardous chemical regeneration removes severe safety risks. However, operators must shift their attention toward monitoring electrical trends. A sudden spike in electrical resistance usually indicates scaling. A drop in pressure usually indicates a mechanical leak. You must address these symptoms immediately.
We strongly advise buyers to request detailed output projections. Reputable manufacturers use proprietary sizing software for these critical calculations. Always demand they use actual site feed water lab analyses. You must provide them a comprehensive water test.
Generic municipal data often leads to undersized or oversized system quotes. Municipal water changes daily. A site-specific projection reveals the true capability of the proposed stack configuration. It ensures the proposed power supply can handle your specific ionic load under worst-case conditions.
Examine performance guarantees carefully during the evaluation phase. Manufacturers often make warranties contingent on specific upstream RO performance metrics. Read the fine print carefully. If your RO system fails to meet these strict parameters, the EDI warranty becomes instantly void.
Next Steps: We recommend initiating a pilot test for highly critical manufacturing applications. Rent a small test unit. Run it using your actual RO permeate for several weeks. Always request detailed P&ID (Piping and Instrumentation Diagram) schematics from your shortlisted vendors. These documents help your engineering team verify integration compatibility before signing purchase orders.
Proper sizing of an industrial water treatment system requires a delicate balancing act. You must carefully align flow dynamics, complex feed chemistry, and precise electrical power capabilities. Focusing solely on flow rate guarantees system failure. Decision-makers should always lock in their RO permeate water analysis before finalizing procurement. Guessing feed parameters leads directly to scaling, thermal damage, and expensive downtime. We encourage you to consult a qualified application engineer today. Have them run a site-specific feed water projection for your facility. Taking these proactive steps ensures your equipment delivers flawless ultrapure water for years to come.
A: Dropping below the minimum flow rate causes severe thermal damage. The DC power supply continuously generates heat inside the module. Water flow acts as the primary cooling mechanism. Insufficient flow causes the internal water to boil, melting the delicate membranes and destroying the ion exchange resin permanently.
A: No. You cannot simply bolt it onto an existing RO system. You must first evaluate the upstream CO2 and hardness levels. Older RO systems often pass too much CO2. You will likely need to install a membrane degasser or a second RO pass to protect the new equipment.
A: When sized correctly and fed with properly pretreated water, modules provide excellent longevity. Industry baseline expectations suggest a lifespan of 5 to 7 years. Facilities maintaining perfect feed conditions often see their modules last well beyond 10 years without requiring replacement.
A: The system relies on a continuous electrochemical regeneration process. It uses direct current (DC) to split water molecules into hydrogen and hydroxyl ions. These ions continuously regenerate the resin bed. Standard alternating current (AC) cannot drive ions in a single, continuous direction across the membranes.
