Electrodeionization provides a superior, chemical-free method for producing ultrapure water across highly regulated industries. However, a core operational reality dictates system success. The module's lifespan and efficiency depend entirely on the feed water quality it receives. Single-stage Reverse Osmosis (RO) often fails to consistently meet the strict feed requirements of these sensitive systems. Trace amounts of hardness, reactive silica, and dissolved carbon dioxide easily slip through single-pass membranes during seasonal water fluctuations.
This compromised feed water causes irreversible internal scaling. It elevates electrical resistance and accelerates catastrophic module failure. To solve this, facility engineers rely on double-stage RO as a critical pre-treatment safeguard. This dual-barrier configuration standardizes feed water quality. It stabilizes continuous operation even under heavy production demands. By reading further, you will learn exactly how upgrading your pre-treatment protects your capital investment. We will explore system mechanics, integration realities, and the long-term operational advantages of combining these powerful water purification technologies.
Protects the EDI Module: Double-stage RO drastically reduces feed water conductivity and hardness, eliminating the primary causes of scaling and resin fouling in EDI systems.
Reduces Operational Expenditures (OPEX): By lightening the ionic load on the EDI stack, facilities experience lower electrical consumption, zero chemical handling, and fewer module replacements.
Ensures Uninterrupted Compliance: Guarantees stable production of high-resistivity water (up to 18.2 MΩ.cm) required by pharmaceutical, power generation, and semiconductor industries.
Increases Initial CAPEX for Long-Term Gain: While requiring a higher upfront investment and larger footprint, the combined RO-RO-EDI configuration yields highly favorable lifecycle returns for high-volume pure water demands.
Electrodeionization acts strictly as a polishing technology. It is not designed to handle bulk ion removal. It uses DC voltage, ion exchange membranes, and specialized resin to remove trace impurities from water. Exposing an EDI stack to marginal feed water immediately compromises production reliability. The modules expect water that is already highly purified.
Single-stage RO systems present specific limitations when feeding downstream polishers. While a single pass removes about 98% to 99% of dissolved solids, the remaining 1% to 2% can devastate sensitive equipment. When source water quality fluctuates, single-stage RO lets dangerous contaminants pass through. Common problematic impurities include:
Trace Hardness (Calcium and Magnesium): Even tiny amounts will precipitate on the concentrate side of the membranes.
Reactive Silica: Weakly ionized silica polymerizes easily, coating the resin beads and blocking ion transfer.
Dissolved Carbon Dioxide (CO2): RO membranes cannot reject dissolved gases. CO2 passes freely into the product water, creating a massive anionic load.
Poor pre-treatment directly dictates the cost of stack failure. When hardness and silica bypass the RO system, they cause internal scaling within the concentrate chambers. This scale acts as an insulator. The system suddenly requires more voltage to move ions through the fouled resin. Increased electrical resistance leads to localized overheating. Eventually, the plastic components warp, the membranes burn, and you face catastrophic module failure. Replacing a damaged stack requires expensive parts, extensive labor, and unacceptable facility downtime.

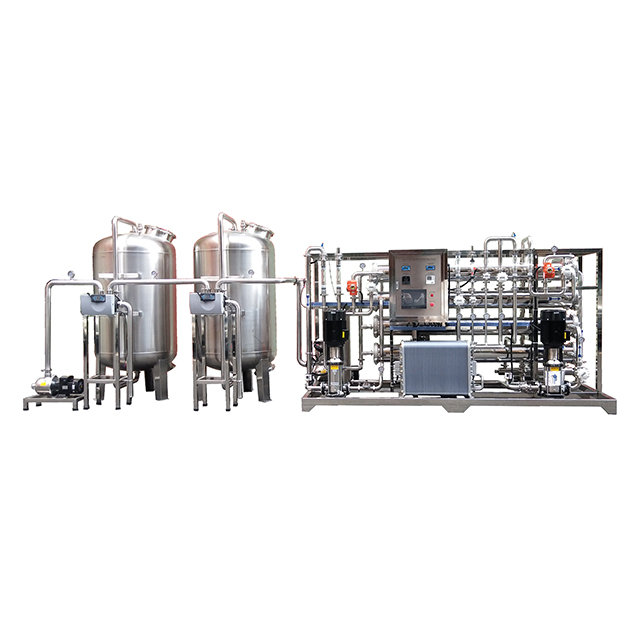

To eliminate these risks, engineers implement a two-pass system. The mechanics are highly effective. Water feeds into the first RO stage. The purified water (permeate) from this first stage immediately acts as the feed water for the second RO stage. This dual-barrier approach drastically lowers Total Dissolved Solids (TDS). By running the water through two consecutive high-rejection membranes, the final product achieves exceptional purity before it ever reaches the polisher.
Managing CO2 and alkalinity represents the most critical advantage of this configuration. Because gases pass through RO membranes, the first stage does not remove CO2. However, a double-stage system allows for inter-stage pH adjustment. Operators dose a small amount of sodium hydroxide (caustic) into the water between the first and second RO passes. This raises the pH. The elevated pH converts dissolved CO2 gas into bicarbonate and carbonate alkalinity. Unlike dissolved gases, the second RO membrane easily rejects these alkaline ions. This process prevents CO2 from heavily taxing the downstream Electrodeionization water treatment system.
Double-stage RO also ensures exceptional Feedwater Conductivity Equivalent (FCE) reduction. FCE is a critical metric used by manufacturers to measure the total ionic load entering the stack. Top-tier manufacturers impose strict FCE limits to guarantee module lifespan. A well-designed double-stage RO system consistently delivers feed water well below these maximum limits. This clean feed ensures optimal ion exchange efficiency, keeps electrical consumption low, and prevents premature scaling.
Implementing dual-pass RO requires a candid evaluation of CAPEX versus OPEX realities. You must acknowledge the higher upfront costs. A double-stage system requires two high-pressure pump systems, double the membrane housings, and a larger physical footprint. Energy consumption increases because you must pressurize the water twice. You also need intermediate tanks and more complex piping networks. The initial capital expenditure is noticeably higher than a single-pass alternative.
However, you offset these costs through chemical-free synergy. We must contrast the combined RO-RO-EDI setup against traditional mixed-bed ion exchange. Conventional mixed beds require hazardous acid and caustic for daily resin regeneration. This mandates strict storage compliance, safety showers, specialized operator training, and expensive chemical waste neutralization systems. By relying on highly polished water, the modern Edi Water Treatment process eliminates bulk chemical handling entirely. The OPEX savings from eliminated chemicals, reduced labor, and lower waste disposal fees quickly justify the higher initial investment.
Lifecycle predictability drives the final business decision. Frame this configuration as risk mitigation. A double-stage RO system acts as a comprehensive insurance policy for your sensitive modules. When you feed marginal water to a stack, you risk destroying it within two to three years. When you feed it highly polished, double-RO water, you extend its operational lifespan to a predictable five to seven years under continuous load. This reliability prevents unexpected production shutdowns.
Table 1: Pre-Treatment Strategy Comparison
Pre-Treatment Configuration | CO2 Removal Capability | Hardness Rejection | Module Lifespan Expectancy |
|---|---|---|---|
Single-Stage RO | Poor (Gas passes through) | Good (98-99%) | 2-3 Years (High Scaling Risk) |
Double-Stage RO (with pH adjustment) | Excellent (Converts to alkalinity) | Exceptional (>99.5%) | 5-7+ Years (Low Risk) |
Even the most advanced two-pass systems require robust upstream protection. A double-stage RO is not a magic filter for raw city water. You must properly design multimedia filtration or ultrafiltration to catch suspended solids. Carbon filtration or sodium bisulfite dosing remains mandatory to remove free chlorine, which oxidizes and destroys polyamide membranes. Antiscalant dosing prevents the first-pass membranes from fouling. Upstream pre-treatment dictates the success of the primary RO, which in turn dictates the success of the secondary RO.
System footprint and layout constraints present real-world challenges for facility managers. Double-stage RO requires significantly more skid space. You must plan for additional high-pressure piping. Most designs require an intermediate break tank between the first and second stages to balance flow rates. If you plan to retrofit an existing facility, you must verify ceiling heights, door widths, and floor load capacities before ordering the equipment.
Automation and control complexity also increase. You cannot operate these connected systems manually. Integrated Programmable Logic Controllers (PLCs) are strictly necessary. The PLC must seamlessly manage variable flow rates and monitor pressure differentials across multiple membrane arrays. It must orchestrate automated flushing cycles between the RO stages and the polishing unit during shutdown sequences. If water stagnates in the piping, biofouling will occur rapidly, degrading water quality and fouling the downstream resin.
Certain high-purity industry mandates make this configuration a non-negotiable requirement. Pharmaceutical facilities producing USP Purified Water or Water for Injection (WFI) cannot tolerate sudden drops in water quality. Microelectronics and semiconductor fabs require trace metals removed to parts-per-trillion levels. Power plants running high-pressure boiler feeds must aggressively limit silica to prevent turbine blade scaling. In these sectors, double-stage pre-treatment ensures absolute compliance.
Evaluating source water variability helps finalize the engineering design. Decision-makers must audit their municipal or well water reports over a 12-month period. Consider these factors:
High baseline TDS (above 500 ppm) usually overwhelms a single pass.
Seasonal quality shifts introduce unpredictable spikes in hardness.
High baseline silica content dictates the need for a double-stage approach to prevent downstream polymerization.
System Performance Parameters Chart
Parameter | Target Feed Limit | Achieved by Double-Stage RO |
|---|---|---|
Feed Conductivity | < 40 µS/cm | < 5 µS/cm |
Total Hardness (as CaCO3) | < 1.0 ppm | < 0.1 ppm |
Silica (SiO2) | < 0.5 ppm | < 0.05 ppm |
If your facility faces these challenges, follow these next steps to secure a reliable purification system:
Conduct a comprehensive, multi-seasonal water quality analysis of your source feed.
Establish the absolute required product water resistivity limits for your specific manufacturing process.
Request long-term cost projections and comparative skid designs from specialized vendors to evaluate single versus double-stage pre-treatment.
Pairing double-stage RO with your final polishing equipment is not an over-engineering tactic. It is a calculated engineering necessity for modern manufacturing facilities. Operations that cannot tolerate costly downtime, resin scaling, or fluctuating product water quality rely on this robust dual-barrier method. Standardizing the feed water fundamentally guarantees the success of the polishing stage.
While initial capital expenditures run higher, the resulting system delivers unparalleled reliability. You achieve complete chemical-free safety and massive long-term OPEX reductions. By eliminating hazardous acid and caustic handling, you protect your staff and simplify compliance. Do not let poor pre-treatment destroy your capital investment. Schedule a technical consultation today or submit a recent feed water analysis report to determine the exact pre-treatment requirements for your specific pure water application.
A: Not always. While double-stage RO with inter-stage pH adjustment removes significant amounts of CO2, highly alkaline source water may still require a membrane contactor (degasser). If the initial CO2 load is extreme, a degasser ensures CO2 levels stay well below the strict feed specifications required to prevent module failure.
A: Overall system recovery typically ranges from 60% to 75%. This depends heavily on initial feed water quality and temperature. To minimize water waste, engineers usually recycle the second stage RO reject stream back to the feed of the first stage, as this water is already cleaner than raw municipal water.
A: Retrofitting is possible but requires careful evaluation. You must assess current pump capacities, available facility footprint, and control system capabilities. In space-constrained environments, engineers often evaluate adding a small RO polishing skid or installing a membrane degasser as a localized fix instead of a full system rebuild.
A: Reactive silica is weakly ionized. This makes it extremely difficult for the module to remove. If silica bypasses the pre-treatment stages, it rapidly precipitates and polymerizes inside the concentrate chambers. This causes irreversible internal scaling, blocks ion exchange pathways, and leads to immediate drops in product water resistivity.
