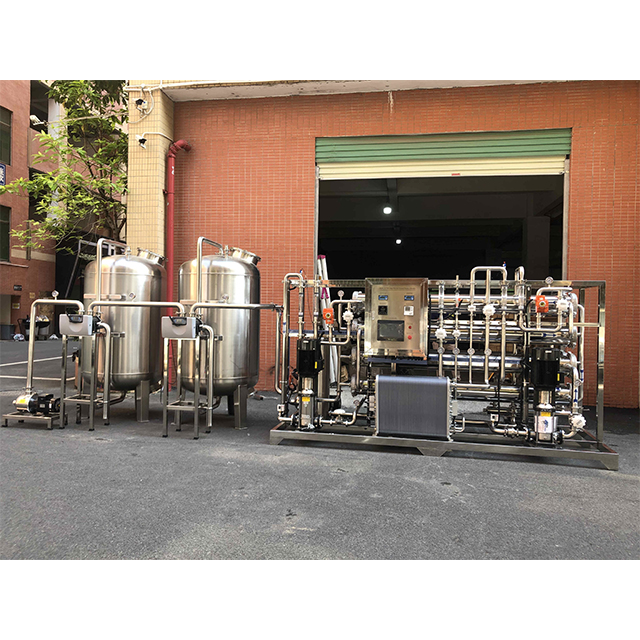

Operating an EDI module without granular electrical monitoring poses a direct, immediate risk to your facility. It jeopardizes capital expenditure through early, preventable module replacements. Furthermore, it threatens critical facility compliance due to unexpected water quality deviations. In high-purity water applications, electrical parameters act as the primary health indicators for your system. They accurately reveal hidden internal scaling risks before they cause damage. They also reflect the real-time efficiency of the ion-exchange process occurring within the stack itself.

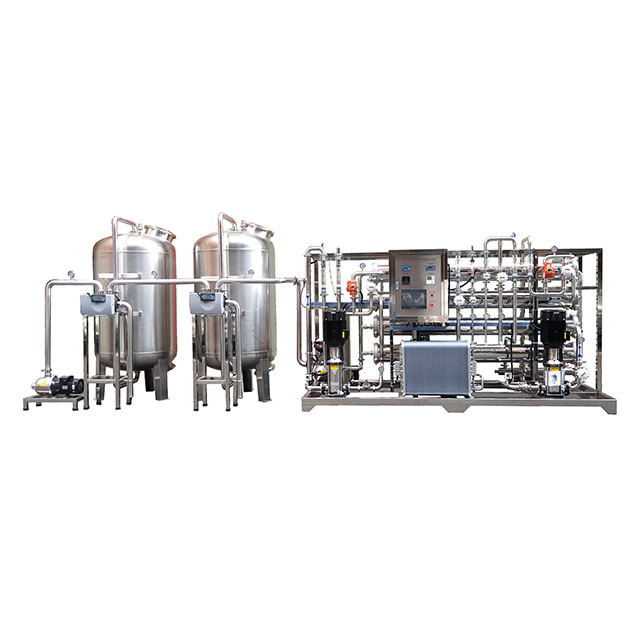

Facility managers evaluating or maintaining an Edi Water Treatment system must establish strict baseline metrics. You will learn how to monitor voltage, current, and electrical resistance effectively. We will explore how these specific practices prevent catastrophic module failures. Implementing these strategies ensures continuous, reliable plant operation and safeguards your critical water assets.
DC Current (Amperage) dictates water quality: It is the driving force for ion removal and continuous resin regeneration; drops indicate flow or feed water issues.
DC Voltage is the primary health indicator: Gradually increasing voltage to maintain a constant current strongly signals internal scaling or fouling.
Power Supply Unit (PSU) specifications matter: Selecting a PSU with "constant current" capabilities and low ripple is essential when upgrading or specifying new Electrodeionization water treatment systems.
SCADA integration is non-negotiable for enterprise systems: Automated alarm thresholds for electrical resistance (V/A) prevent irreversible thermal damage to module internals.
EDI modules act as high-value, sensitive assets inside your plant. Premature failure due to localized overheating directly impacts plant uptime. Irreversible scaling inside the chambers also shrinks operational budgets heavily. Replacing a fouled EDI stack costs significantly more than implementing early-warning electrical monitoring systems. Ignorance often leads to emergency maintenance and disrupted production schedules. We must prioritize predictive maintenance to protect these investments effectively.
In the life sciences sector, facilities adhere to strict USP/EP standards. Microelectronics plants demand flawless Type 1 ultra-pure water continuously. Minor fluctuations in the electrical field can cause trace ion leakage. This threatens product yield immediately. Downstream resistivity meters often detect the fault far too late. Contaminated water might already reach critical process areas before alarms trigger. You must shift from viewing these systems as a "black box." Instead, treat them as delicate electro-chemical assets. They require strict operational envelopes for maximum longevity.
DC current determines the exact rate of ion transfer across the membranes. It serves as the primary driving force for water splitting. This process generates essential hydrogen and hydroxyl ions. These ions facilitate continuous resin regeneration during active operation. You must evaluate the applied current against your feed water conductivity. Always factor in the incoming flow rate for accurate assessments.
Ensure the system operates perfectly within the manufacturer's specified limits. Operating below the minimum limit leads to rapid resin depletion. Exceeding the maximum limit causes severe internal burning. We recommend establishing precise current setpoints based on real-time feed conditions to prevent irreversible damage.
DC voltage represents the electrical pressure needed for reliable operation. It pushes your target current through the module's inherent internal resistance. You must establish a "clean baseline" voltage during initial commissioning. Record this exact value meticulously for future reference.
Voltage acts as a highly dynamic variable during daily operations. Tracking its trend over weeks or months provides tremendous diagnostic value. This trend tracking remains the absolute most reliable way to predict upcoming maintenance needs. Any sudden voltage spikes demand immediate operator attention.
Electrical resistance outlines the total ohmic resistance of your system. It combines the physical resistance of resin beds, membranes, and feed water. You calculate this by dividing voltage by amperage (V/A). Track this specific ratio continuously in your control system.
A steadily rising V/A ratio indicates dangerous internal resistance increases. This typically points to harmful scaling forming in the concentrate chambers. Monitoring this calculation offers a clearer picture than tracking voltage alone. It normalizes the data against any intentional current adjustments made by your operators.
Electrical behavior tells a detailed story about internal module health. Recognizing specific fluctuation patterns allows you to act proactively before failure occurs. The diagnostic chart below summarizes the most common failure modes and necessary operator responses.
Diagnostic Scenario | Observed Symptoms | Likely Root Causes | Recommended Action |
|---|---|---|---|
Rising Voltage at Constant Current | System requires more power for the same ion removal rate | Hardness scaling (Ca/Mg); Organic membrane fouling | Trigger CIP protocols immediately |
Current Spikes or Voltage Drops | Highly erratic and unstable electrical behavior | Internal short circuit; Chlorine membrane degradation | Execute immediate system shutdown |
Consistently Low Current | Inability to maintain target current setpoints | PSU hardware failure; Severe air entrapment | Inspect electrical connections; Vent module |
Operators often notice the system requiring more power over time. The module demands higher voltage to achieve the exact same ion removal rate. This symptom strongly suggests internal hardness scaling. Calcium and magnesium deposits actively form in the concentrate or anode compartments. Organic fouling on the membrane surfaces produces a nearly identical electrical signature.
You must trigger CIP (Clean-In-Place) protocols promptly. Do this before scaling bridges the internal spacers entirely. Bridging eventually causes physical membrane rupture and total module failure. Early intervention saves the module from permanent physical damage.
Sometimes the monitoring system displays highly erratic electrical behavior unexpectedly. You might see a sudden drop in voltage or wild current spikes. This indicates a severe internal short circuit. Poor feed water quality often causes this catastrophic event directly. Chlorine oxidation can physically degrade and destroy the delicate membrane structure.
Localized thermal degradation also melts internal components together rapidly. This specific scenario requires an immediate, automatic system shutdown. It usually indicates potential irreversible module failure. You will likely need to order and install a replacement stack.
In this scenario, the system simply cannot maintain the desired current. Product water quality degrades rapidly alongside this sudden power failure. The root cause often traces back to external hardware issues rather than chemistry. A failing Power Supply Unit (PSU) severely limits the available amperage.
Loose electrical connections also throttle the current flow invisibly. Alternatively, severe feed water starvation introduces excessive air into the module. Air pockets create massive electrical resistance zones across the internal chambers. You must verify water flow and bleed all trapped air immediately.
Not all commercial DC power supplies fit industrial water applications securely. Buyers must evaluate PSUs based on highly specific electrochemical requirements. A standard unit will not protect your critical assets effectively.
Always specify "Constant Current" (CC) control when purchasing equipment. This represents a fundamental requirement for optimal module performance. The PSU must automatically adjust voltage outputs dynamically. It does this to maintain the required amperage steadily.
Feed water conditions and internal resistance change constantly during normal daily operation. A constant current supply guarantees stable ion removal rates regardless of these fluctuations. Standard constant voltage supplies fail to provide this necessary stability, leading to quality drops.
Direct current power supplies often retain some alternating current characteristics natively. We call this residual AC component the "ripple effect." High AC ripple in the DC output heavily degrades module efficiency.
It continuously pulses the electrical field within the module stack. This rapid pulsing physically degrades and damages the sensitive ion-exchange resin beads. You must explicitly specify PSUs featuring a ripple factor securely below 5%. Ideally, target a ripple factor under 2% for ultra-pure water applications.
Industrial PSUs require robust, fail-safe hardware mechanisms integrated directly. Ensure the PSU features hardware-level interlocks physically tied to flow switches. Applying electrical power to a dry EDI module guarantees disaster. It causes instantaneous and fatal thermal damage to the internal spacers.
Software-based flow alarms do not offer sufficient protection alone. You need hardwired relays that physically break the power circuit upon flow loss. This structural failsafe prevents operator error from destroying the module.
Standalone monitoring systems leave critical data isolated on the factory floor. Enterprise operations demand comprehensive data integration for reliable predictive maintenance.
Storing performance data locally on a basic HMI is entirely insufficient. Operators rarely review historical screens on local panels during normal shifts. You must export voltage, current, and resistivity data continuously without interruption.
Send this precise telemetry to a centralized plant historian platform. This enables engineering teams to conduct detailed long-term trend analysis smoothly. Automated logging removes human error from your daily data collection processes entirely.
Implement a tiered alarm strategy within your centralized SCADA system.
Warning Alarm: Set this alert at a 15-20% increase over the clean baseline voltage. This prompt allows engineers to schedule chemical cleaning during planned downtimes.
Critical Trip: Set this final interlock slightly below the module's absolute maximum voltage rating. This initiates an automated power cut-off mechanism rapidly. It safely shuts down the system to save the asset from complete destruction.
Data quality depends entirely on your initial sensor accuracy. Ensure regular, documented calibration of all current transducers on site. Calibrate the voltage dividers carefully during every major annual shutdown.
Uncalibrated sensors inevitably lead to frustrating false alarms. Worse, they allow slow-burn internal failures to proceed completely undetected by operators. Treat your electrical sensors with the exact same care as your final resistivity meters.
Effective monitoring of your water system requires proactive, daily engagement. It goes far beyond simply checking the final product water resistivity. True asset protection requires active surveillance of DC current and dynamic voltage trends.
Investing in robust electrical monitoring maximizes module lifespan heavily.
Installing a high-quality, constant-current PSU ensures stable daily operations.
Tracking the V/A resistance ratio predicts scaling before irreversible damage occurs.
Automated SCADA interlocks prevent catastrophic dry-running thermal events perfectly.
Take action by conducting an immediate audit of your current HMI setup. If you are not actively logging the historical V/A ratio, change your protocols. Prioritize integrating this specific resistance calculation into your next scheduled SCADA update.
A: Excessive current forces water splitting well beyond what is actually needed for regeneration. This unnecessary reaction generates significant excess heat quickly. This extreme heat can warp internal plastic spacers permanently. It will eventually melt the ion-exchange resins together. This inevitably causes irreversible internal short-circuiting and total module failure.
A: A gradual voltage increase typically indicates internal scaling from mineral deposits. Calcium and magnesium precipitate actively inside the concentrate chambers. Membrane fouling from organics also causes this exact electrical symptom. Both issues directly increase the module's internal electrical resistance, forcing the power supply to push harder.
A: No. These systems require highly specific Constant Current control to function safely. They also need exceptionally low AC ripple, strictly kept under 5%. Furthermore, they demand critical safety interlocks, like immediate flow loss cut-offs. Standard commercial power supply units simply do not provide these essential protective features.
A: For continuous industrial operations, log voltage and current automatically. Your SCADA system should record these data points every 15 to 30 minutes. This precise frequency allows engineers to accurately capture long-term trends. It also helps them identify sudden anomalies before catastrophic asset failure ever occurs.
