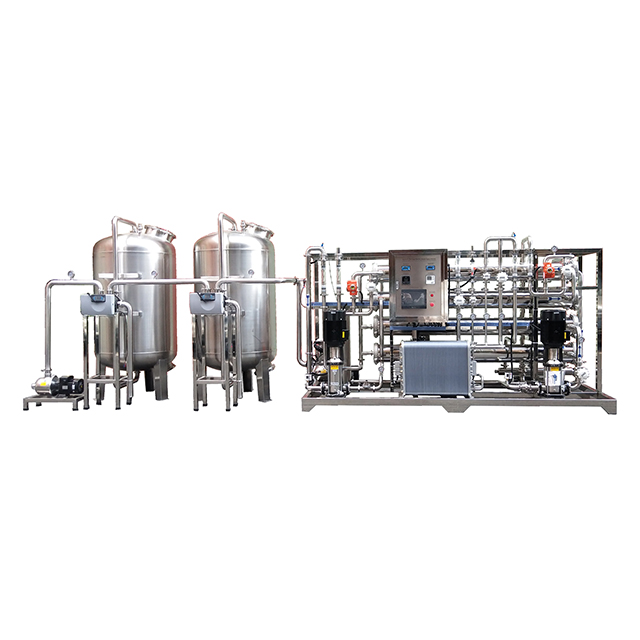

In ultrapure water production, recovery rates directly dictate operational efficiency and wastewater volume. Every drop of water counts. Yet, facility managers and process engineers often struggle to balance competing goals. They desire maximum water conservation across their facilities. However, pushing these limits brings a severe risk of premature module failure due to scaling. Today, many facilities rely on Electrodeionization water treatment as the standard for continuous, chemical-free deionization. Finding its optimal recovery rate requires a careful approach. You must weigh feed water quality against system design and daily operational goals. In this article, you will learn the standard recovery benchmarks. We will explore how upstream pre-treatment influences your equipment limits. You will also discover practical strategies to evaluate systems and commission them safely.
Standard Baseline: The recommended recovery rate for an industrial EDI system typically ranges from 90% to 95%.
The Pre-Treatment Dependency: Achieving recovery rates above 95% is technically possible but strictly requires high-quality single or double-pass Reverse Osmosis (RO) permeate to prevent scaling.
Cost of Over-Optimization: Pushing recovery rates beyond the manufacturer's specified threshold drastically increases the risk of hardness scaling, membrane fouling, and module replacement costs.
System Configuration: Reject water recirculation can improve overall plant efficiency, but requires careful evaluation of silica and CO2 buildup.
Experts widely accept the 90% to 95% range as the industry benchmark. This specific window acts as a functional sweet spot. It maximizes product water generation for your facility. Simultaneously, it maintains enough concentrate flow to safely flush out removed ions. If you drop below 90%, you waste too much water. If you exceed 95%, you risk severe internal scaling.
We calculate recovery in a very straightforward manner. You divide the product flow by the feed flow. Then, you multiply the result by 100. Understanding this math remains vital for facility engineers. The feed flow represents the total water entering the unit. The product flow is the highly purified water exiting the system. The difference between them becomes your concentrate or reject stream. You must constantly balance these flows.
Different industries require different operational targets. System scale directly dictates these goals. Let us look at typical application variances in the field.
Industrial and Power Generation: Boiler feed applications demand massive water volumes. Therefore, operators often target higher recovery rates near 95%. The sheer scale makes water conservation a critical financial priority.
Laboratory and Pharmaceutical: USP Purified Water systems prioritize absolute purity. They value reliability over marginal volume gains. These applications usually sit closer to the 90% mark. They prefer a wider safety buffer. Semiconductor facilities also fall into this category. They need uninterrupted ultrapure water streams. A sudden failure halts production. Thus, they sacrifice a few percentage points of water to ensure continuous operation.
Your modules do not operate in a vacuum. They rely heavily on your upstream Reverse Osmosis (RO) system. This upstream RO permeate quality establishes the absolute ceiling for your recovery rate. High recovery demands excellent feed water.
You must monitor your Feed Equivalent Conductivity (FCE). FCE measures the total ionic load entering the module. High FCE values force you to lower your recovery expectations. You cannot push heavy ionic loads into a restricted concentrate stream.
Hardness presents the most significant scaling risk. When you run at higher recovery, you reduce the concentrate flow. This reduction concentrates calcium and magnesium inside the reject chamber. Eventually, these minerals precipitate out of the solution. Scaling quickly destroys the internal membranes.
You also must consider un-ionized gases. Carbon dioxide and silica readily pass through most standard RO membranes. These contaminants force the module to work significantly harder. Carbon dioxide exists as a dissolved gas. Once inside the electrical field, it converts into ionic species. This conversion consumes electrical current. It forces the system to work harder than necessary. Silica requires high pH environments for proper removal. Both variables drastically reduce your safe maximum recovery limit.
Feed Water Parameter | Impact on Safe Recovery Limits |
|---|---|
Feed Equivalent Conductivity (FCE) | High FCE dictates a lower recovery target to prevent ion overload. |
Total Hardness (Calcium/Magnesium) | Requires high concentrate flow (lower recovery) to avoid internal scaling. |
Dissolved Carbon Dioxide (CO2) | Increases electrical resistance. Requires lower recovery to flush effectively. |
Silica | Needs specific pH conditions. High levels mandate lower recovery rates. |
Facility leaders constantly weigh water efficiency against equipment lifespan. Operating outside recommended parameters carries hidden penalties. You must understand the true impact of these operational decisions.
When you run at low recovery rates below 85%, your operational expenses spike. You essentially waste perfectly good RO permeate. When you waste RO permeate, you throw away resources. Producing RO water requires massive high-pressure pumps. It requires antiscalant chemicals. It uses expensive filter cartridges. Every gallon of reject water represents lost energy. Therefore, dropping below 85% efficiency hurts your operational budget. You spend resources preparing water only to dump it down the drain.
Conversely, pushing recovery above 95% introduces severe capital and operational risks. You might save a small amount of water. However, the resulting equipment damage far outweighs those marginal savings.
High recovery means less sweep water in the concentrate chamber. Reduced sweep water simply fails to clear ions fast enough. This stagnation leads directly to internal scaling. Scaling acts like concrete inside the chambers. It physically blocks the narrow flow channels. The sweep water cannot reach the affected areas. This creates dangerous hot spots. The direct current continues to flow. However, there is no water to absorb the heat. The resin beads literally melt. The membranes rupture. You face days of unplanned downtime. Replacing a ruined module becomes a massive, unexpected expense.
Higher recovery rates change the internal electrical dynamics. They often require significantly higher DC voltage. The system needs this voltage to maintain ion migration against a steeper concentration gradient. You force the equipment to push ions into a highly concentrated reject stream. Electrical costs add up quickly. Your power supply unit must push harder. It draws more amperage from your facility grid. Over an entire year of continuous operation, this extra power draw becomes significant. Balancing your flow dynamics prevents this energy waste.
Selecting the right equipment requires careful evaluation. Not all designs handle aggressive recovery targets equally. You need to scrutinize several dimensions before making a purchase.
First, module architecture matters immensely. We typically see two main designs in the field. Plate-and-frame models and spiral-wound models offer different tolerances. You must align the architecture to your specific site conditions.
Module Architecture | Tolerance for High Recovery | Maintenance Profile |
|---|---|---|
Plate-and-Frame | Generally robust. Handles moderate scaling events better due to thicker channels. | Allows for easier chemical cleaning. Technicians can sometimes replace individual parts. |
Spiral Wound | Requires highly stable flow. Less tolerant of extreme concentration gradients. | Compact design but harder to clean. Usually requires full replacement upon failure. |
Many modern setups offer concentrate recirculation capabilities. This feature routes the reject stream back to the upstream RO feed tank. We highly recommend this plumbing configuration. It satisfies environmental mandates for zero liquid discharge. It keeps the internal module flows fast and safe. Recirculation provides a brilliant operational advantage. It allows the actual unit to run at a very safe internal recovery, such as 90%. Yet, the overall plant achieves a much higher system-wide recovery, often approaching 99%.
You must demand strict vendor transparency. Watch out for clear red flags during the sales process. Maintain healthy skepticism toward vendors promising 99% internal recovery. If they do not stipulate rigorous double-pass RO feed requirements, walk away. Such promises usually lead to rapid system failure.
Finally, prioritize compliance and reporting features. Integrating a reliable Edi Water Treatment setup requires robust data logging. Ensure the system includes high-quality instrumentation. You need accurate, continuous monitoring of flow rates and resistivity. These sensors help you maintain compliant recovery thresholds. This level of control remains absolutely critical for the pharmaceutical and semiconductor sectors.
Rolling out an equipment upgrade requires practical experience. You cannot rely solely on theoretical projections. We always recommend specific risk mitigation strategies during implementation.
Always conduct thorough pilot testing. You must test the unit using your actual site feed water. Many vendors use proprietary projection software. Software models assume ideal conditions. They assume perfectly stable temperatures. They assume zero biological fouling. Your real-world facility rarely matches these ideal conditions. Piloting proves the concept. It uncovers seasonal temperature drops. Cold water changes the flow dynamics. Real-world piloting exposes hidden silica or carbon dioxide spikes early. You must adjust your targets accordingly.
Adopt a phased commissioning approach. You should dial in recovery rates conservatively during the first 30 days. Start closer to 85% or 90%. Use this initial period to monitor scale formation closely. Watch your product resistivity stability. Once you verify stable operation, you can slowly inch the recovery upward.
Establishing robust maintenance protocols prevents catastrophic failures. You must create a daily baseline for your voltage-to-current ratios.
Record the baseline DC voltage and current upon startup.
Track these metrics at the exact same time every day.
Watch for sudden voltage spikes required to maintain the same current.
Treat these electrical spikes as early warning indicators.
Sudden spikes usually mean the recovery rate is set too high. The internal resistance is rising due to localized scaling. Promptly lowering the recovery can often reverse early-stage scaling. You must act before permanent damage occurs.
The ideal recovery rate is never a static, fixed number. It remains a carefully calculated balance. You must weigh your upstream RO feed quality against your specific module tolerance. In most industrial scenarios, this safe balance resides firmly between 90% and 95%.
We strongly advise all buyers to audit their current RO permeate data. Specifically, test your hardness, carbon dioxide, and silica levels. You need this precise data before requesting an equipment quote. It ensures the manufacturer sizes your reject flows accurately.
Ultimately, prioritize stable, long-term operation. Module lifespan always matters more than marginal gains in water recovery. A conservative approach minimizes downtime. It ensures you produce consistent ultrapure water year after year.
A: Yes, you can easily recycle the reject water. The concentrate stream is often of much better quality than raw municipal feed water. It is standard industry practice to route this reject back to the upstream RO break tank. This strategy improves overall plant efficiency and conserves significant water resources without stressing the module.
A: This struggle usually points directly to upstream pre-treatment issues. Degrading RO membranes likely allow excess hardness or un-ionized carbon dioxide into the feed. When these contaminant loads increase, the module works harder and scales faster. The operator must increase the reject flow to flush out the excess minerals, thereby lowering the overall recovery.
A: Reverse Osmosis (RO) systems typically operate at lower efficiencies. A single-pass RO usually runs between 50% and 75% recovery. A double-pass RO might push up to 80% or 85%. In contrast, electrodeionization handles highly purified feed water. Because the mineral load is already very low, it can safely operate at 90% to 95% recovery.
A: No. Applied voltage drives the actual ion removal process and determines product purity. It does not dictate flow dynamics or water efficiency. If you increase the voltage without providing sufficient concentrate flow, you create severe problems. This imbalance causes localized overheating, rapid hardness scaling, and eventual module burning.
