Transitioning from traditional mixed-bed resins to modern EDI systems eliminates hazardous chemical handling. However, it introduces a strict dependency on feed water quality. You must specifically manage dissolved gases to ensure system reliability. Reverse Osmosis (RO) typically precedes EDI in most industrial setups. RO membranes efficiently remove the bulk of the ionic load. They allow dissolved gases like carbon dioxide (CO2) to pass through freely.
Without targeted CO2 removal prior to the EDI module, facilities risk degraded water resistivity. You might also face compromised silica and boron rejection. Ultimately, unchecked CO2 leads to premature module failure. This guide breaks down the operational impacts of dissolved gases. We explore the dominant removal technologies available today. You will learn how to evaluate the right degassing solution for your facility.
Dissolved CO2 acts as an invisible ionic load in EDI systems, converting into bicarbonate and carbonate ions that rapidly exhaust resins.
High CO2 levels directly inhibit the removal of weakly ionized species, causing treated water to fail stringent silica and boron specifications.
Implementing membrane degassing or chemical dosing before Electrodeionization water treatment reduces electrical operating costs and extends the lifespan of the EDI stack.
Selecting a CO2 removal method requires balancing CAPEX (equipment footprint) with OPEX (maintenance, energy, and chemical consumables).

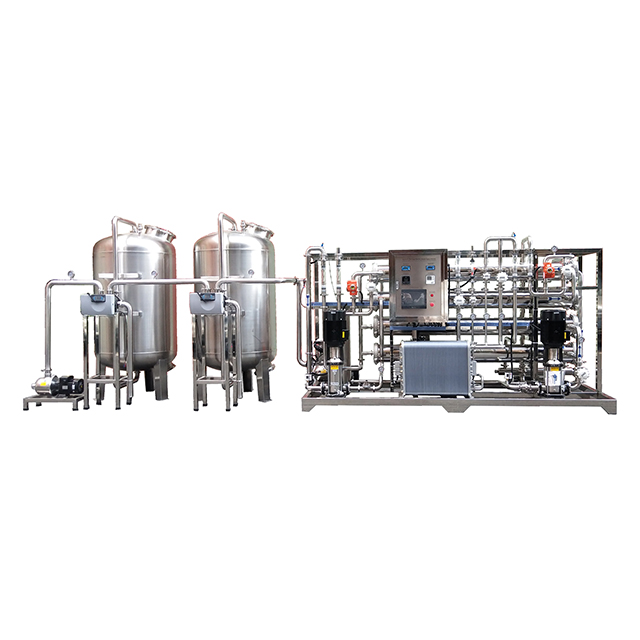

Reverse osmosis forms the backbone of most industrial water purification systems. RO membranes excel at rejecting dissolved mineral salts. They block large organic molecules effectively. However, these membranes possess a significant blind spot. They are virtually transparent to dissolved gases. Uncharged gas molecules easily slip through the membrane pores. They travel right alongside the water molecules.
This reality presents a massive challenge for downstream purification. When dissolved CO2 enters the EDI stack, a problematic chemical shift occurs. The internal environment of an EDI module facilitates rapid reactions. We can break this process down into a simple sequence:
Feed water carrying dissolved CO2 enters the module.
The CO2 reacts immediately with the water molecules.
This reaction forms weak carbonic acid inside the stack.
The carbonic acid dissociates into bicarbonate (HCO3-) ions.
Further dissociation creates carbonate (CO3^2-) ions under specific pH conditions.
These newly formed ions create severe operational hurdles. They artificially inflate the Feed Equivalent Conductivity (FCE). FCE measures the total ionic burden placed on the EDI module. FCE calculations must include standard dissolved solids, silica, and CO2. Often, carbon dioxide contributes more to the FCE than all other trace minerals combined.

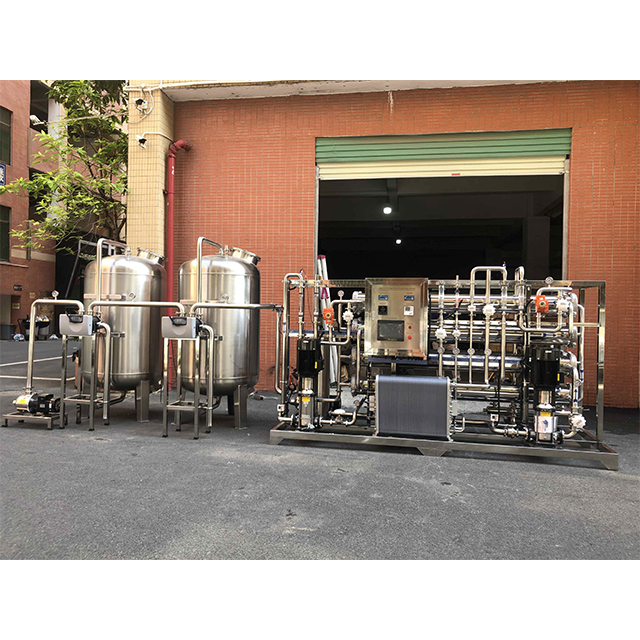

These carbon-derived ions compete directly for space. They seek attachment points on the ion exchange resins. Carbonate and bicarbonate ions carry a strong charge. They actively displace weakly ionized species. The EDI system is specifically designed to target these weak species. Silica and boron represent the most critical weakly ionized targets. When CO2 dominates the resin bed, silica and boron simply slip through. This competition compromises the entire purification process. Proper Edi Water Treatment demands the elimination of this hidden load.
Ignoring dissolved gases generates immediate and severe business consequences. Facility managers often notice the first signs of trouble in their water quality logs. Failing to meet Ultrapure Water (UPW) specifications becomes a recurring nightmare. Many high-tech industries require water resistivity to hit exactly 18.2 MΩ·cm. Semiconductor fabrication and pharmaceutical manufacturing demand absolute perfection.
When the stack becomes overwhelmed by carbon-derived ions, resistivity plummets. It becomes incredibly difficult to maintain consistent quality. Silica and boron breakthrough occurs rapidly. These impurities can ruin entire product batches. A single contaminated batch often costs far more than proper degassing equipment.
Beyond water quality, the physical hardware suffers immensely. Accelerated module degradation represents a massive hidden cost. To move a heavy ionic load, the system draws excess electrical current. Operators often increase the amperage to force the system to perform. This constant, excessive electrical current generates intense internal heat.
Excess heat degrades the delicate ion exchange resins prematurely. It damages the sensitive ion-selective membranes. Localized hot spots develop inside the stack. These hot spots physically melt the internal components. Once thermal degradation occurs, the damage becomes irreversible. You cannot simply clean or backwash a melted module.
This degradation directly causes massive spikes in operating costs. You will face financial impacts across multiple operational areas:
Energy Consumption: The system demands higher amperage constantly. Processing an inflated ionic load wastes massive amounts of electricity.
Unplanned Downtime: Maintenance frequencies skyrocket. You must pause production to troubleshoot failing water quality.
Hardware Replacement: Burned-out EDI stacks require complete replacement. These modules represent a significant capital expense.
Facilities have several established methods to tackle dissolved carbon dioxide. Each technology targets the gas before it reaches the EDI module. Understanding how these solutions work helps you make an informed engineering choice.
Membrane contactors offer an elegant, highly effective solution. They use thousands of microporous hydrophobic hollow fibers. Water flows around the outside of these fibers. A vacuum or sweep gas runs through the hollow centers. The hydrophobic nature prevents liquid water from entering the pores. However, dissolved gases easily pass through the micropores. The vacuum actively extracts CO2 from the water phase into the gas phase.
This approach offers fantastic benefits. It is completely chemical-free. It features a minimal physical footprint. It integrates perfectly into continuous workflows. The primary drawback involves initial capital expenditure. These systems cost more upfront. Furthermore, they require clean, filtered sweep gas. Poor quality sweep gas causes rapid membrane fouling.
Caustic dosing takes a strictly chemical approach. Operators inject sodium hydroxide (NaOH) directly into the feed water. This injection occurs prior to the primary RO pass. The chemical raises the water's pH significantly. At a higher pH, gaseous CO2 converts into liquid bicarbonate. The RO membrane can then reject this charged bicarbonate ion.
This method boasts a very low initial equipment cost. It utilizes your existing RO infrastructure. You simply add a dosing pump and a chemical tank. However, it introduces serious operational risks. Raising the pH increases the scaling risk exponentially. Calcium carbonate scale can quickly blind the RO membranes. It also reintroduces hazardous chemical handling. You must continuously purchase and store chemical consumables.
Forced draft decarbonators rely on traditional air-stripping mechanics. Water cascades down through a large tower. The tower contains specialized packing media to increase surface area. A massive blower forces air upward. The air strips the CO2 out of the falling water droplets.
These towers handle extremely high CO2 loads efficiently. Heavy industrial applications often rely on them. However, they possess distinct drawbacks. They require a massive physical footprint. They also present a severe risk of airborne biological contamination. The open air intake can suck in bacteria and mold. You must install aggressive post-filtration to protect downstream equipment.
Technology | Removal Mechanism | Primary Advantage | Main Drawback |
|---|---|---|---|
Membrane Contactors | Hydrophobic fibers and vacuum extraction | Chemical-free, compact footprint | Higher initial CAPEX, needs clean sweep gas |
Caustic Dosing | pH adjustment converts gas to ions for RO rejection | Low initial equipment cost | High scaling risk, ongoing chemical usage |
Forced Draft | Air stripping via counter-current tower | Handles massive incoming CO2 loads | Large footprint, biological contamination risk |
Selecting the right degassing strategy requires careful technical analysis. You cannot simply pick the most popular option. You must evaluate your specific facility constraints. We recommend looking closely at several key dimensions.
You must evaluate your initial alkalinity and hardness levels thoroughly. High hardness makes caustic dosing incredibly risky. When you raise the pH to capture CO2, you alter the Langelier Saturation Index. Calcium and magnesium will precipitate out of the solution rapidly. This precipitation forms rock-hard scale on your RO membranes.
If your feed water contains high hardness, membrane contactors become the favored choice. They remove gas without altering the pH. This choice directly relates to evaluating standard EDI against high-hardness tolerant configurations. Proper pretreatment dictates the survival of the final stack.
You must assess your available physical footprint. Many advanced manufacturing facilities lack extra floor space. Cleanrooms operate under strict spatial limitations. Forced draft towers simply will not fit indoors. They require excessive vertical clearance.
Membrane contactors offer a modular design. They easily mount onto standard equipment skids. This flexibility proves ideal for compact laboratory environments. Pharmaceutical facilities also favor this low-profile approach.
Different industries enforce wildly different purity standards. Microelectronics fabrication requires zero silica breakthrough. Pharmaceutical applications demand absolute control over trace elements. For these sectors, introducing chemicals creates unacceptable risks.
Chemical dosing always carries the threat of over-injection. Impurities inside the caustic soda can slip past the RO. Membrane degassing provides the most predictable FCE reduction. It achieves this without introducing any foreign chemical impurities. You guarantee a pristine feed for your Electrodeionization water treatment system.
Even the best removal strategies present implementation challenges. You must anticipate operational realities before installation. Trustworthy system design demands proactive risk management.
Modifying pH before the RO impacts everything downstream. It alters the rejection rates of various trace ions. You cannot model these adjustments in isolation. A higher pH might improve CO2 rejection. However, it might simultaneously reduce the rejection of other critical contaminants.
Engineers must model these dynamics dynamically. You need comprehensive software projections. These projections ensure the overall permeate quality remains balanced. Failing to model the entire system leads to unexpected purity drops.
Facility managers often underestimate the required upkeep. Membrane contactors are not set-and-forget devices. They require dedicated, ongoing maintenance. The vacuum pumps need regular oil changes. The sweep air filters demand frequent replacement.
Furthermore, you must protect the contactors from organic fouling. Trace organics can coat the hydrophobic fibers. This coating allows liquid water to penetrate the pores. Once the fibers flood, gas extraction stops completely. Pre-filtration remains mandatory.
Under-sizing the degassing unit presents a massive risk. Many designers calculate capacity based on summer water temperatures. This mistake proves disastrous during winter months. Henry's Law dictates gas solubility behavior. Colder water holds significantly more dissolved gas.
During seasonal temperature drops, the CO2 load increases dramatically. An undersized unit will allow breakthrough CO2. This sudden spike hits the EDI stack hard. You must size the degassing equipment based on the lowest expected annual water temperature. Generous sizing prevents seasonal performance crashes.
Successful EDI operation relies entirely on proper pretreatment. The quality of the final product mirrors the quality of the feed water. Treating dissolved carbon dioxide is never an optional upgrade. It represents a fundamental engineering requirement for reliable ultrapure water production.
Audit Your Water: Immediately test your current RO permeate for dissolved CO2 levels. Gather accurate baseline data.
Calculate True FCE: Determine your actual Feed Equivalent Conductivity. Ensure you include the hidden gas load in your math.
Evaluate Chemistry: Review your feed hardness to eliminate risky chemical dosing options early.
Size Conservatively: Always design your chosen degassing system to handle winter temperature extremes.
Advise your engineering teams to prioritize gas removal. Secure your equipment investment before procuring or replacing another EDI stack. Proactive CO2 management guarantees long-term purity and system stability.
A: Typically, manufacturers recommend CO2 levels be kept below 5 ppm. Ideally, you should maintain levels below 1 ppm. This ensures optimal resistivity and protects silica rejection capabilities. However, specific thresholds always depend on the overall Feed Equivalent Conductivity (FCE) of your unique system.
A: RO membranes rely on ionic charge and molecular size to reject contaminants. Dissolved CO2 is an uncharged gas. It features a very small molecular footprint. Therefore, it easily passes through the membrane pores right alongside the water molecules without facing any physical or chemical resistance.
A: Yes. Silica and boron are weakly ionized. When CO2 enters the EDI, it converts into highly conductive bicarbonate. The system prioritizes removing this strong bicarbonate charge. It leaves the weaker silica and boron in the product water. Removing CO2 eliminates this internal competition completely.
