KY-RO6000L/H
KAIYUAN
Product Description

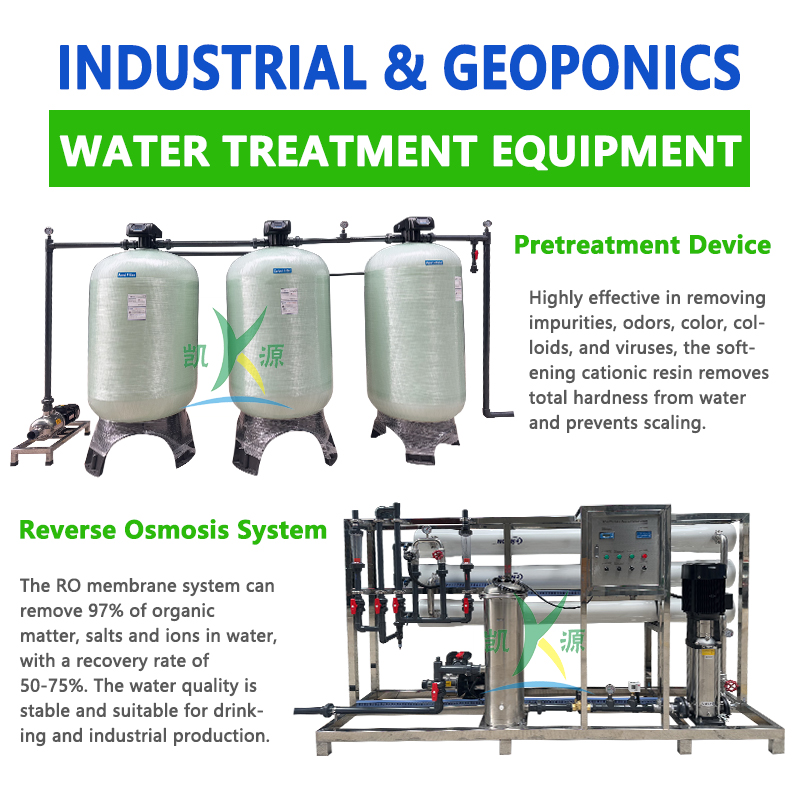

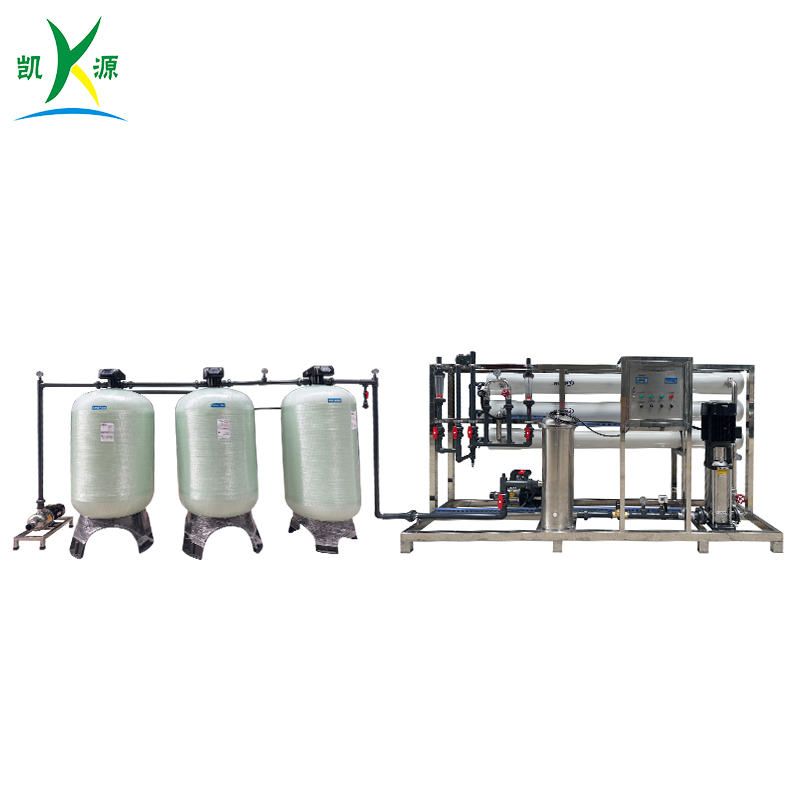

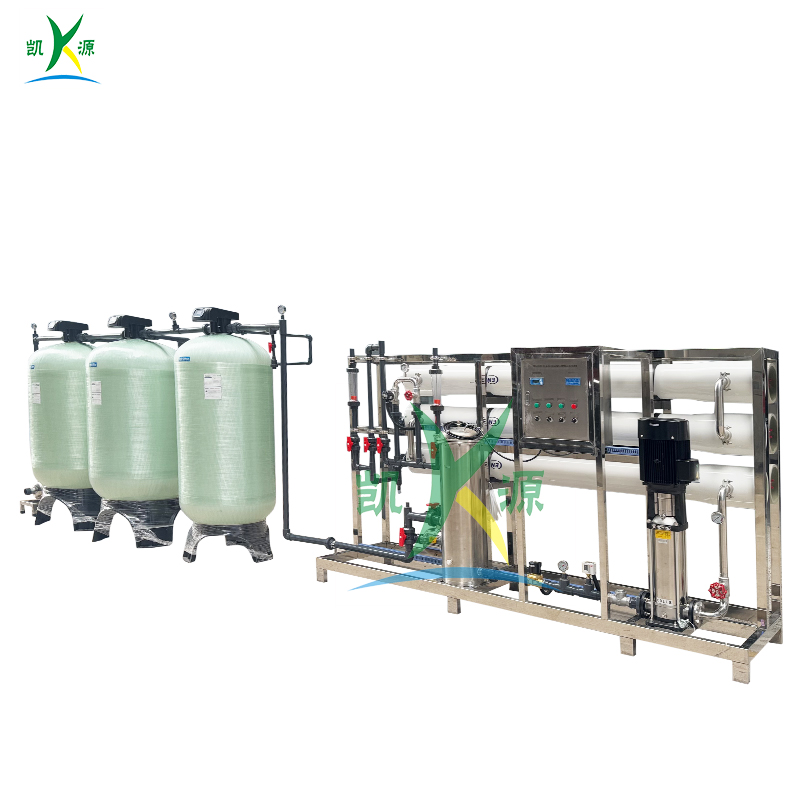

This 6000L/H (6 ton per hour) reverse osmosis water purification system is a complete split-type industrial pure water production unit. It consists of a pretreatment section and a main RO reverse osmosis section, consistent with the structure shown in the prototype photo. The pretreatment unit adopts three series-connected FRP tanks: quartz sand filter, activated carbon filter and water softener, equipped with a feed booster pump to preliminarily purify raw water. It removes sediment, residual chlorine and hardness ions to protect the downstream RO membrane elements. The RO main frame is fitted with stainless steel frame, high pressure pump, membrane housings, electric control cabinet, pipeline valves and online monitoring instruments. Adopting mature RO membrane separation technology, the system efficiently removes salts, heavy metals, colloids, bacteria and microorganisms from water to produce industrial-grade qualified pure water. Every unit passes hydraulic pressure test and trial run before delivery. On-site pipeline connection and wiring are all that is required for commissioning, making it suitable for continuous pure water production in various factories.
| Item | Parameter |
|---|---|
Rated Water Output | 6000L/H (6 Ton/Hour) |
Water Treatment Process | Pretreatment + Single-stage RO Reverse Osmosis |
Salt Rejection Rate | ≥97% |
Pretreatment Configuration | FRP Quartz Sand Filter + Activated Carbon Filter + Water Softener |
Main Frame Material | Stainless Steel Frame |
Membrane Element | Industrial Brackish Water RO Membrane |
Control Mode | Centralized electric cabinet, manual start & stop available |
Operation Mode | 24-hour continuous stable operation |
Equipped with industrial-grade RO membranes, the salt rejection rate keeps above 97%. Water quality remains stable during long-time continuous operation to meet factory’s steady water demand.
The three pretreatment tanks and RO main unit are separated. The layout is flexible and suitable for workshops with limited space.
Automatic backwashing for pretreatment tanks reduces manual work. All spare parts are standard universal types, filter media and RO membranes can be purchased and replaced easily with low maintenance threshold.
FRP tanks resist acid and alkali corrosion; stainless steel main frame is rust-proof. UPVC industrial pipelines adapt to raw water with complex water quality.
Hydraulic test and trial run are finished in factory. On-site work only includes pipe connection and power access, which helps quick commissioning and saves installation time.
Pretreatment tanks and RO host are packed separately. Large frames are reinforced with solid wooden crates. Precision instruments such as pressure gauges and flow meters are wrapped individually with buffer materials to avoid collision damage during transit. Accessories are packed in separate boxes.
Split modules can be loaded separately to reduce single-piece size, convenient for truck delivery and container loading for export.
Please inspect tanks, frames, pipelines and instruments immediately after receiving goods. Operation manual, spare parts list and piping drawings are delivered together. Photos can be submitted for after-sales support if damaged during transportation.
We purchased this 6 ton/hour RO system for beverage production. The three-stage pretreatment works well and RO produces stable pure water. Split layout fits our workshop perfectly. The unit was pre-tested by manufacturer, our installation team finished commissioning quickly.
The machine runs stably 24 hours a day and the water quality meets our standard. Automatic backwashing of pretreatment tanks saves frequent manual cleaning. Spare parts are common models and easy to replace later.
Separate wooden crate packing is sturdy and no parts were damaged after sea freight. Complete drawings and operation manuals are provided. Our overseas engineers finished installation and commissioning smoothly on site, we are satisfied with this machine.
