KY-RO2000L/H
KAIYUAN
Product Description

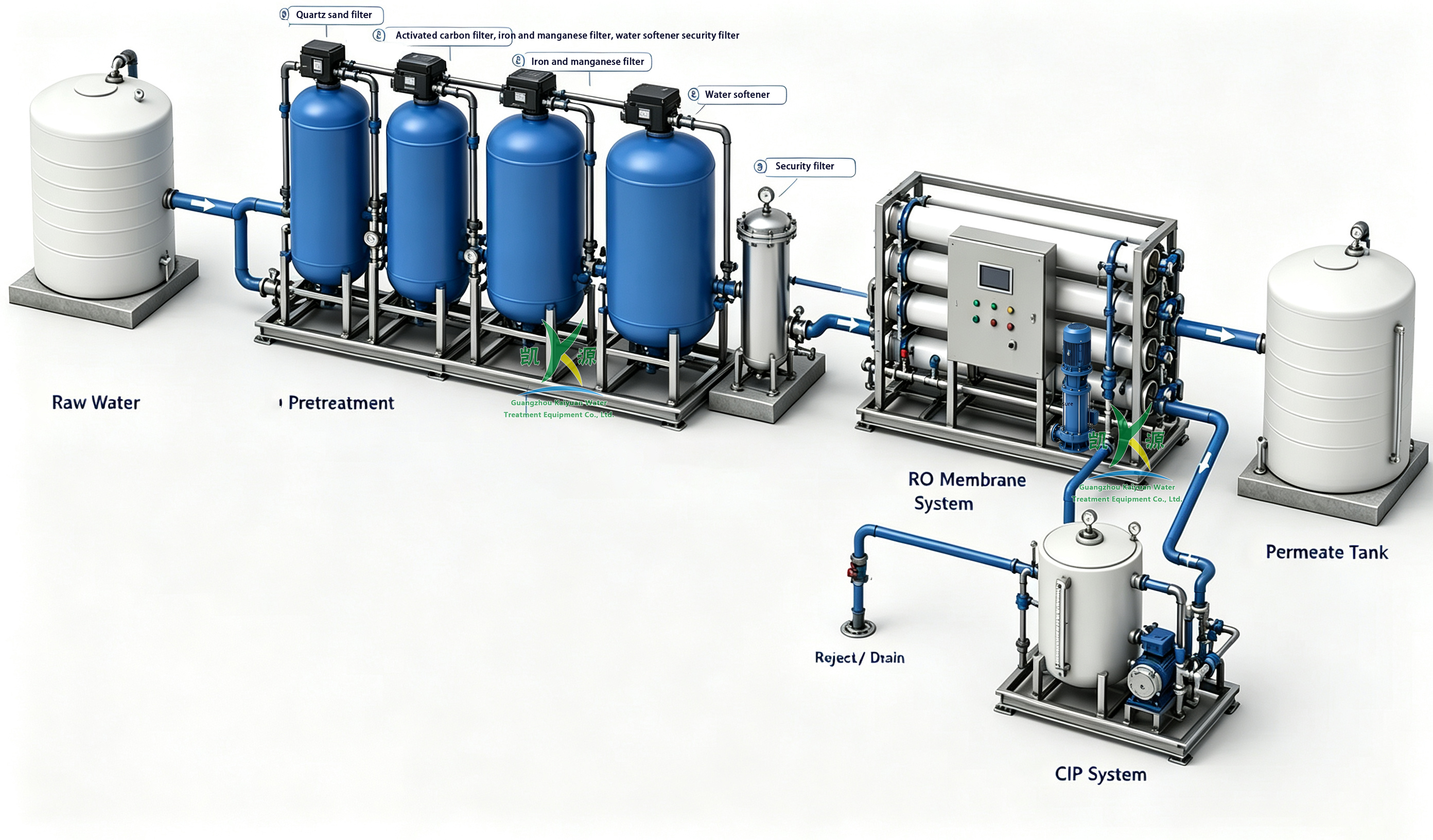

Quartz sand filter + activated carbon filter + softener (optional) + iron/manganese filter + precision security filter, progressively intercepting suspended solids, colloids, residual chlorine, and hardness ions, building a complete defense for RO membrane elements and extending membrane life.
PLC or microcomputer controller monitors inlet water pressure, membrane pressure difference, conductivity, and liquid level in real time, featuring low-pressure protection, high-pressure shutdown, automatic shutdown in water shortage, and full-water standby functions, enabling continuous and stable water production even without human intervention.
The main unit, pump set, membrane housing, and electrical control cabinet are integrated into a carbon steel powder-coated or stainless steel frame, resulting in a compact layout, small footprint, and easy handling and maintenance within the workshop.
Membrane elements, filter cartridges, and filter media all adopt industry-standard specifications, allowing users to purchase and replace them from any channel globally, freeing them from being tied to a single supplier.
An online conductivity monitoring instrument is installed at the outlet, providing a clear view of pure water quality, and the data can be integrated with enterprise management systems.
Product Areas
| Item | KY-RO-2000L/H |
|---|---|
| Rated Output | 2000 L/H |
| Desalination Rate | ≥97% |
| Product Water Quality | ≤10 μs/cm (subject to feed water conditions) |
| Recovery Rate | 60%–70% |
| Power Supply | 110V/220V/380V/440V, 60/50Hz |
| Frame Material | 304 stainless steel |
| Control Mode | Fully automatic PC/PLC |
| Pipe Material | 304/ 316 stainless steel UPVC |
Application areas of RO systems
Water Uses: Process water (beverage blending, beer brewing), CIP cleaning water, boiler and cooling system makeup water, packaging bottle rinsing water
Equipment Configuration: Reverse osmosis system using sanitary 304/316L stainless steel piping, dead-angle-free design, meets food contact standards; ultraviolet or ozone sterilization units can be added at the terminal to ensure microbiological indicators meet standards.
Water Uses: Boiler makeup water, dye and auxiliary agent preparation water, reactor process water, circulating cooling water makeup
Equipment Configuration: Softener + Reverse osmosis system effectively removes hardness ions to prevent scaling; parts in contact with corrosive media are lined with anti-corrosion rubber or fiberglass; large water points can be equipped with multi-unit parallel skid-mounted systems.
Water production applications include greenhouse irrigation, hydroponics nutrient solution preparation, livestock and poultry drinking water purification, and aquaculture recirculating water treatment.
Water production applications include office building drinking water, hotel and restaurant drinking water, school/station public drinking water, and bottled/bottled water production.
Water production applications include kitchen drinking and cooking water, whole-house washing and domestic water, bathroom soft water, and villa swimming pool circulating purification.
Product Showcase
Every stage, from pretreatment to membrane separation, is engineered for stable output
Frame, membrane housings and piping in 304 stainless steel, integrally welded — elegant appearance and rugged durability, ideal for food and pharmaceutical applications with high hygiene requirements.
Equipped with a dedicated ROC reverse osmosis controller: automatic start/stop, timed flushing, low/high-pressure protection and water shortage shutdown — no operator required.
FRP multimedia filter combined with activated carbon filter effectively removes suspended solids, residual chlorine and organics, providing qualified feed water for the membranes and extending membrane life.
CHINT breakers and contactors with neat wiring and standardized layout — safe, reliable and easy to maintain.
Feed/permeate pressure gauges, dual rotameters for permeate and concentrate, and an inline conductivity meter — water quality and flow at a glance.
The high-pressure pump set features multi-stage centrifugal boosting with low-pressure start and high-pressure shutdown protection, preventing water hammer damage to membranes.
Real machine details — quality you can see

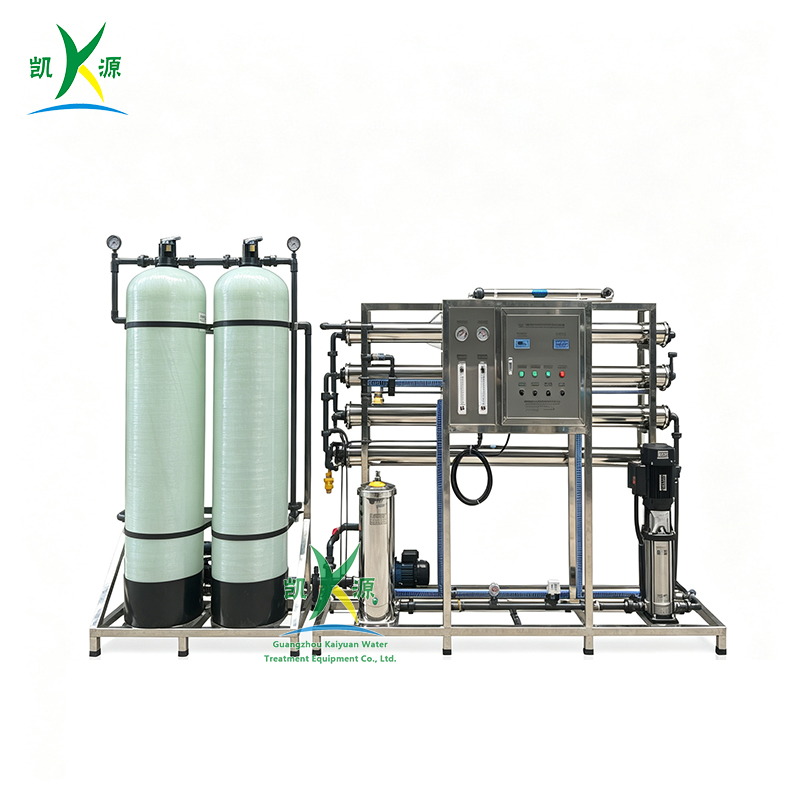

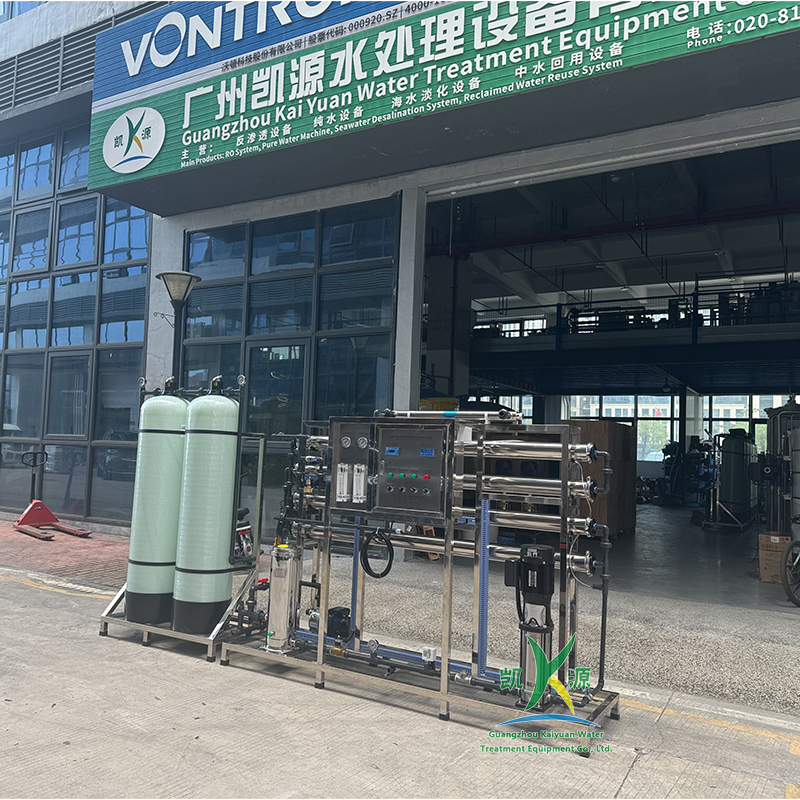

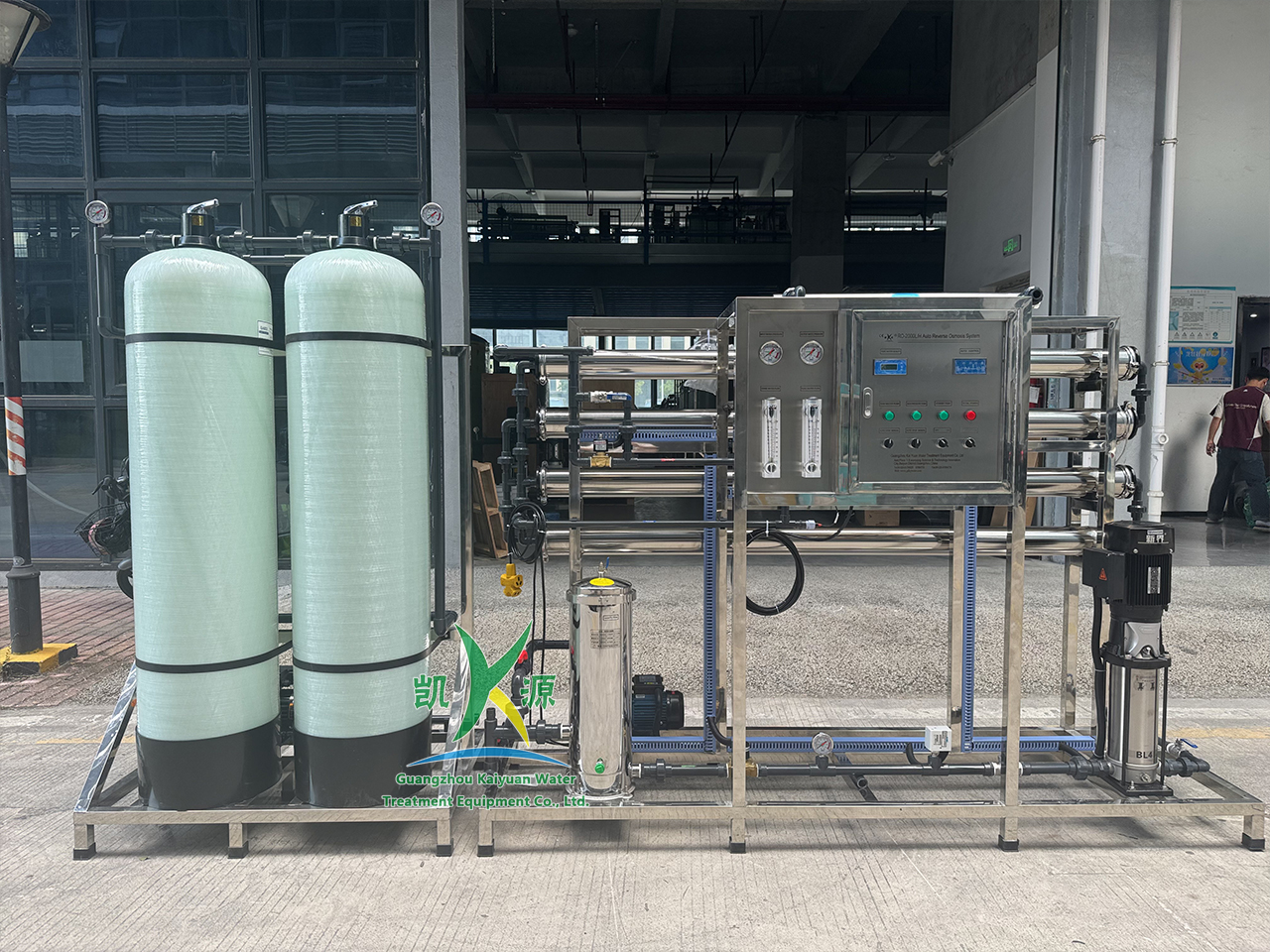

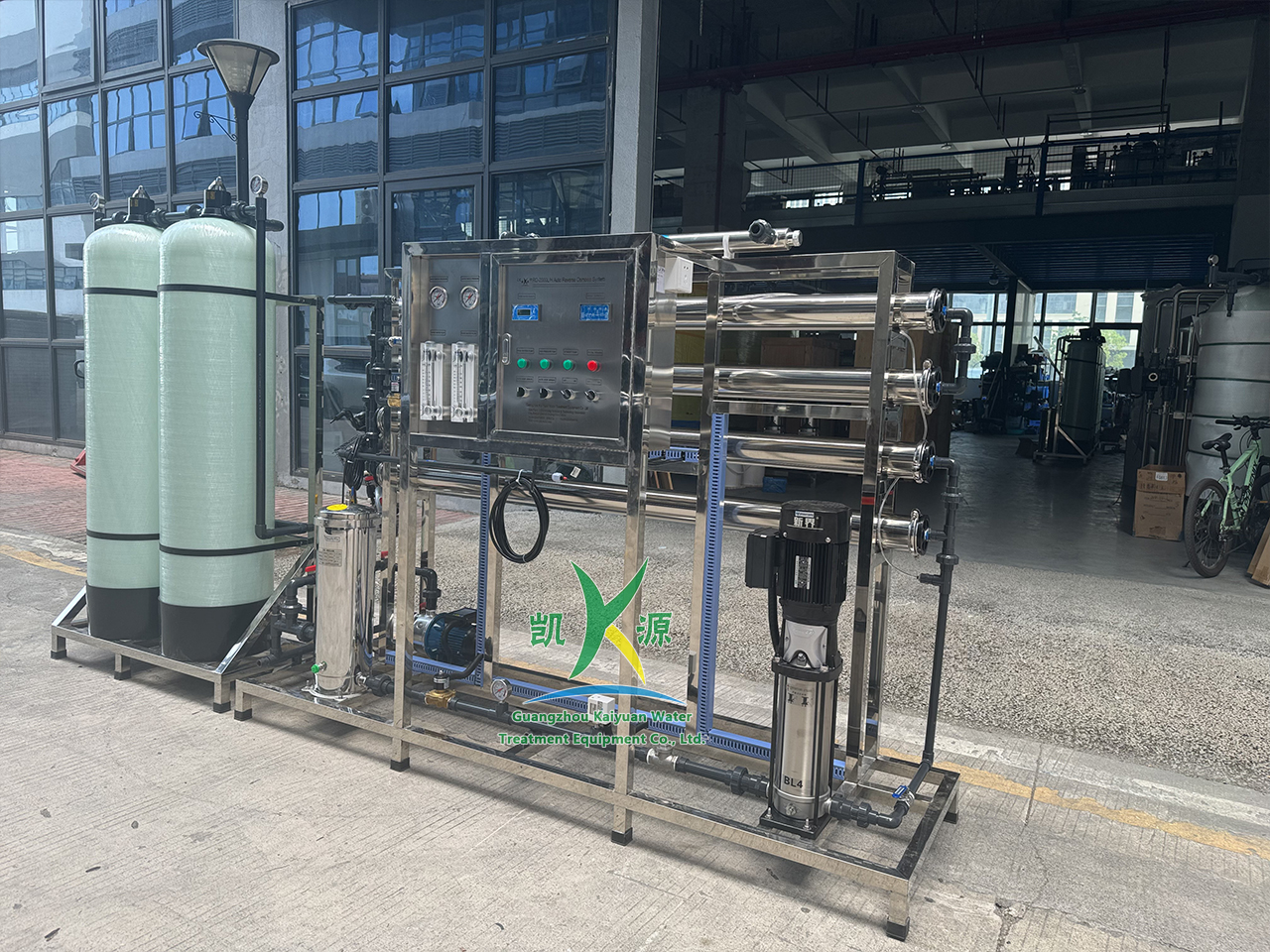

Pretreatment, membrane separation and electrical control integrated on a single base — compact footprint, fully commissioned before delivery.

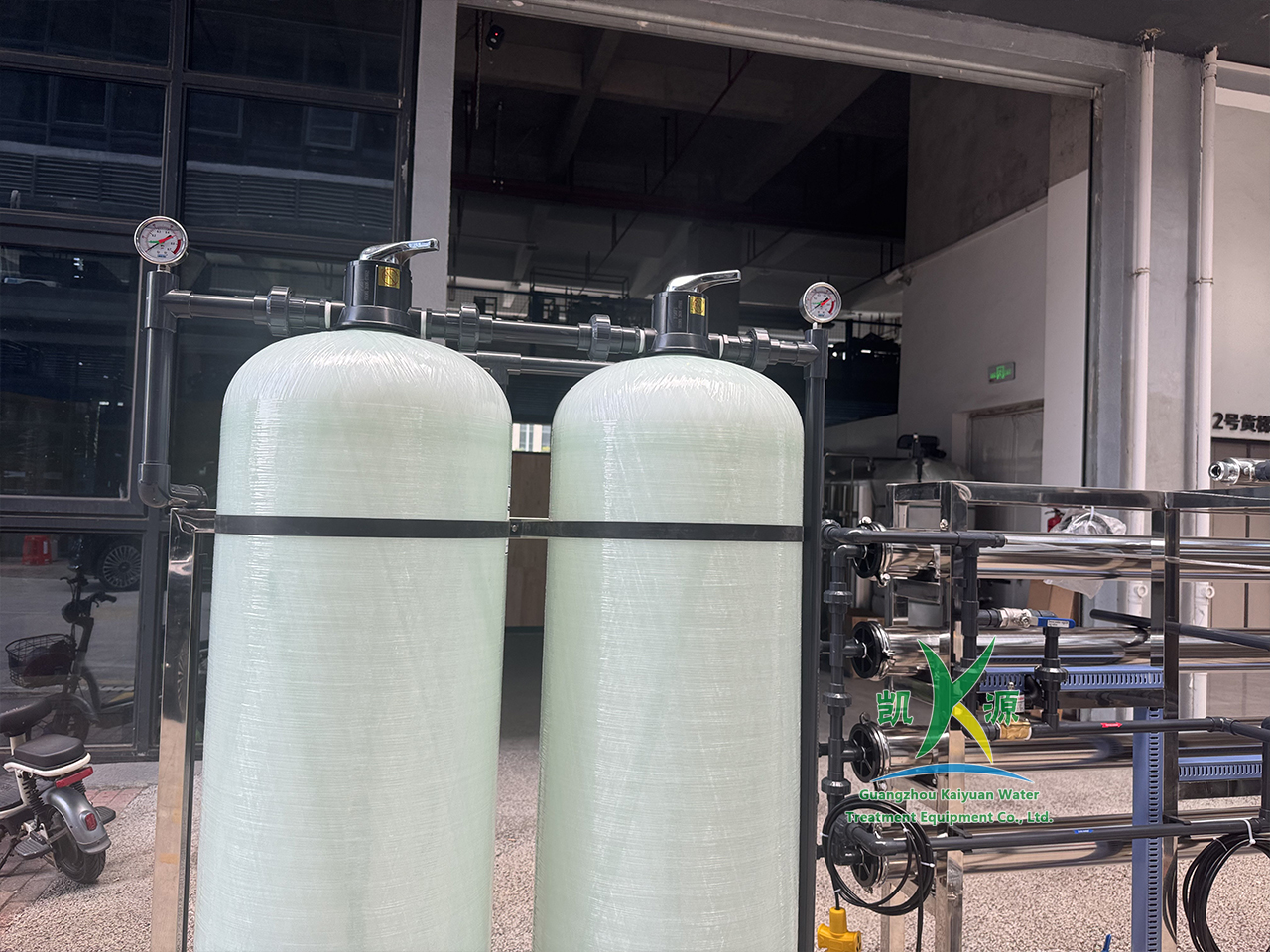

Dual FRP vessels with top-mounted pressure gauges for real-time monitoring; easy backwash operation.
Stainless steel horizontal centrifugal pump delivering stable feed pressure to pretreatment and membrane stages, with quiet and smooth operation.
Multiple stainless steel membrane housings in parallel, with hand-wheel concentrate valves for on-site recovery adjustment.

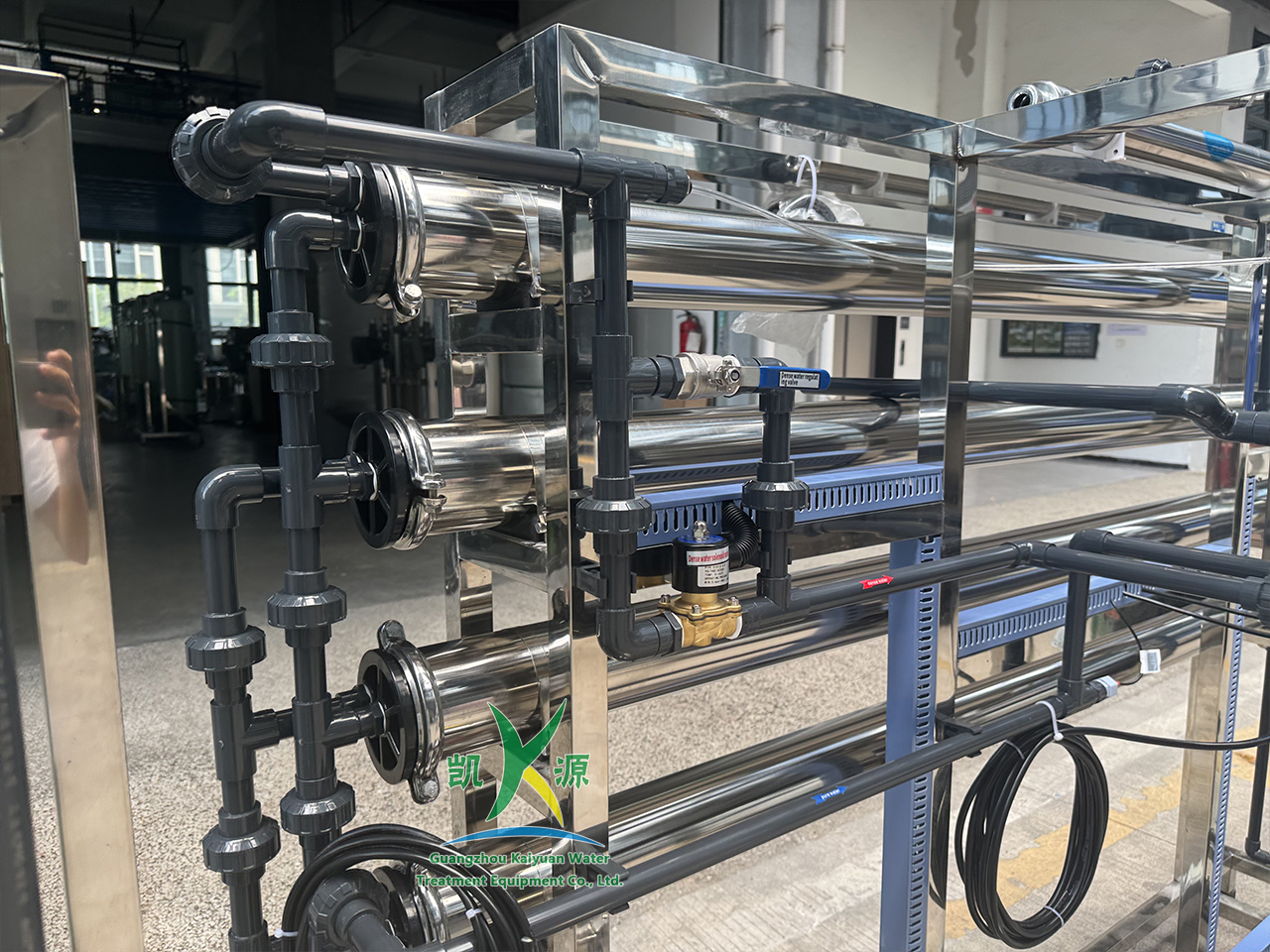

Well-organized UPVC piping with solenoid valves, check valves and ball valves — clear layout and convenient maintenance.

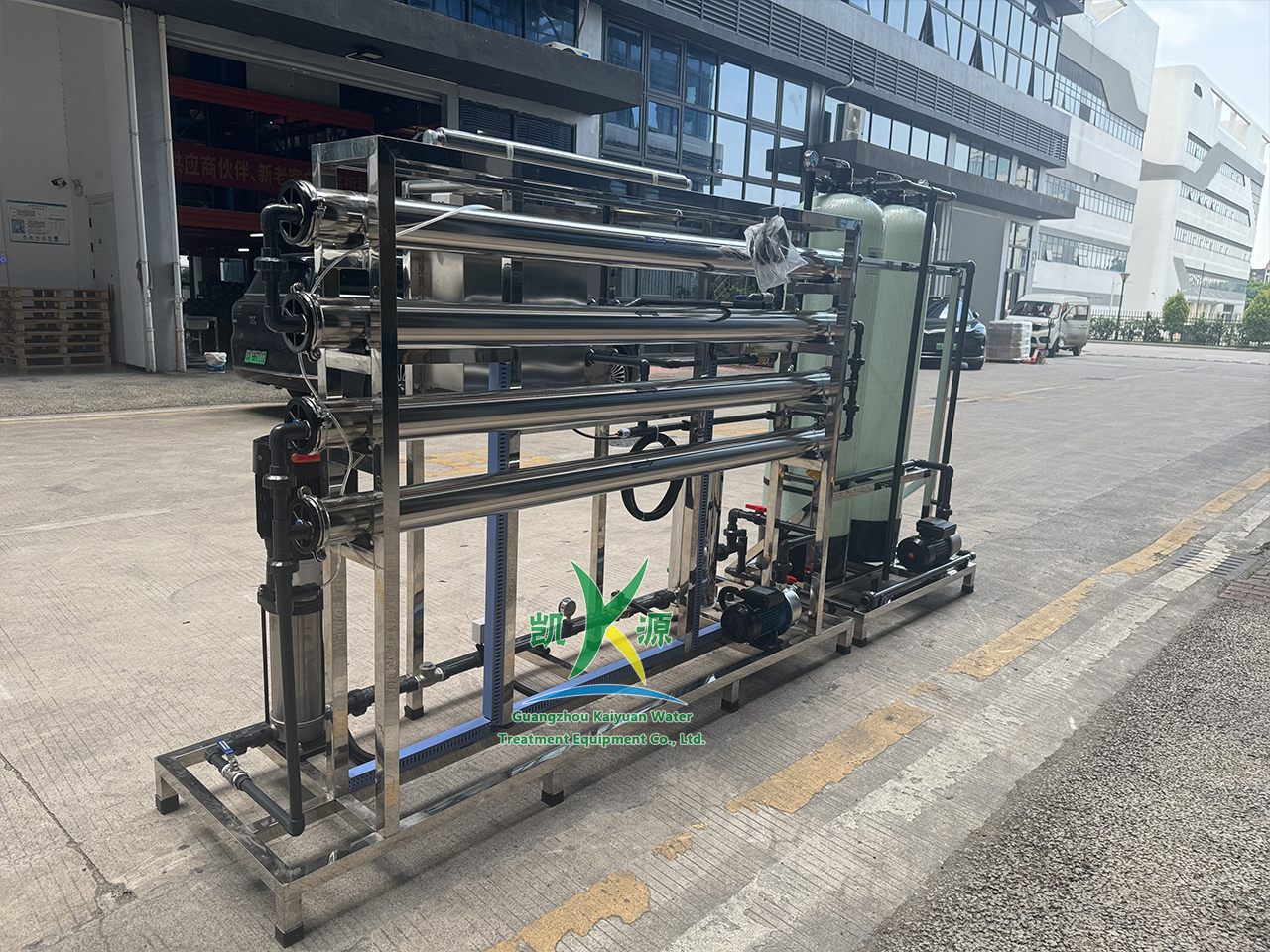

High-pressure sealed stainless steel housing ends, rated for demanding service and easy membrane replacement.

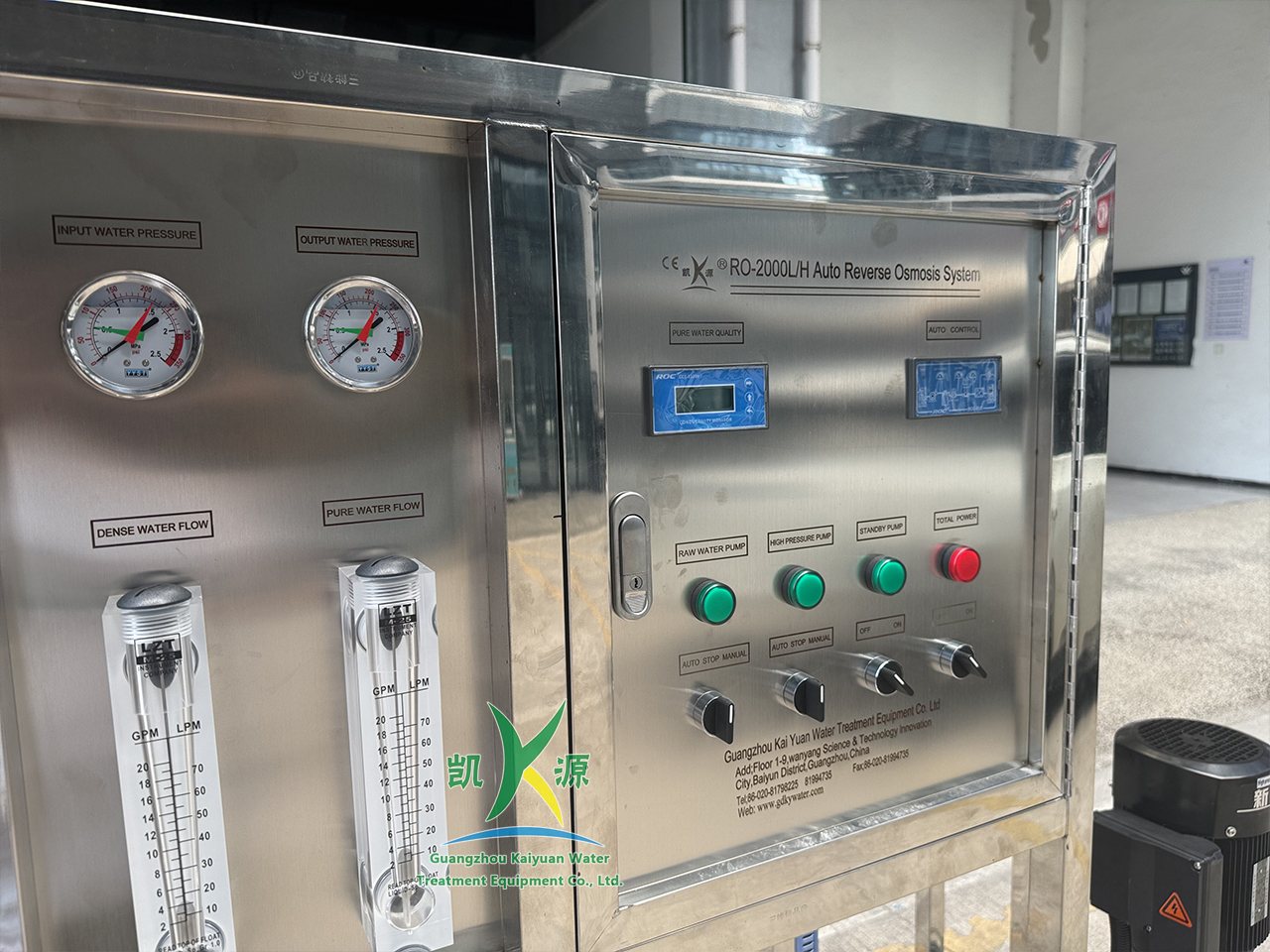

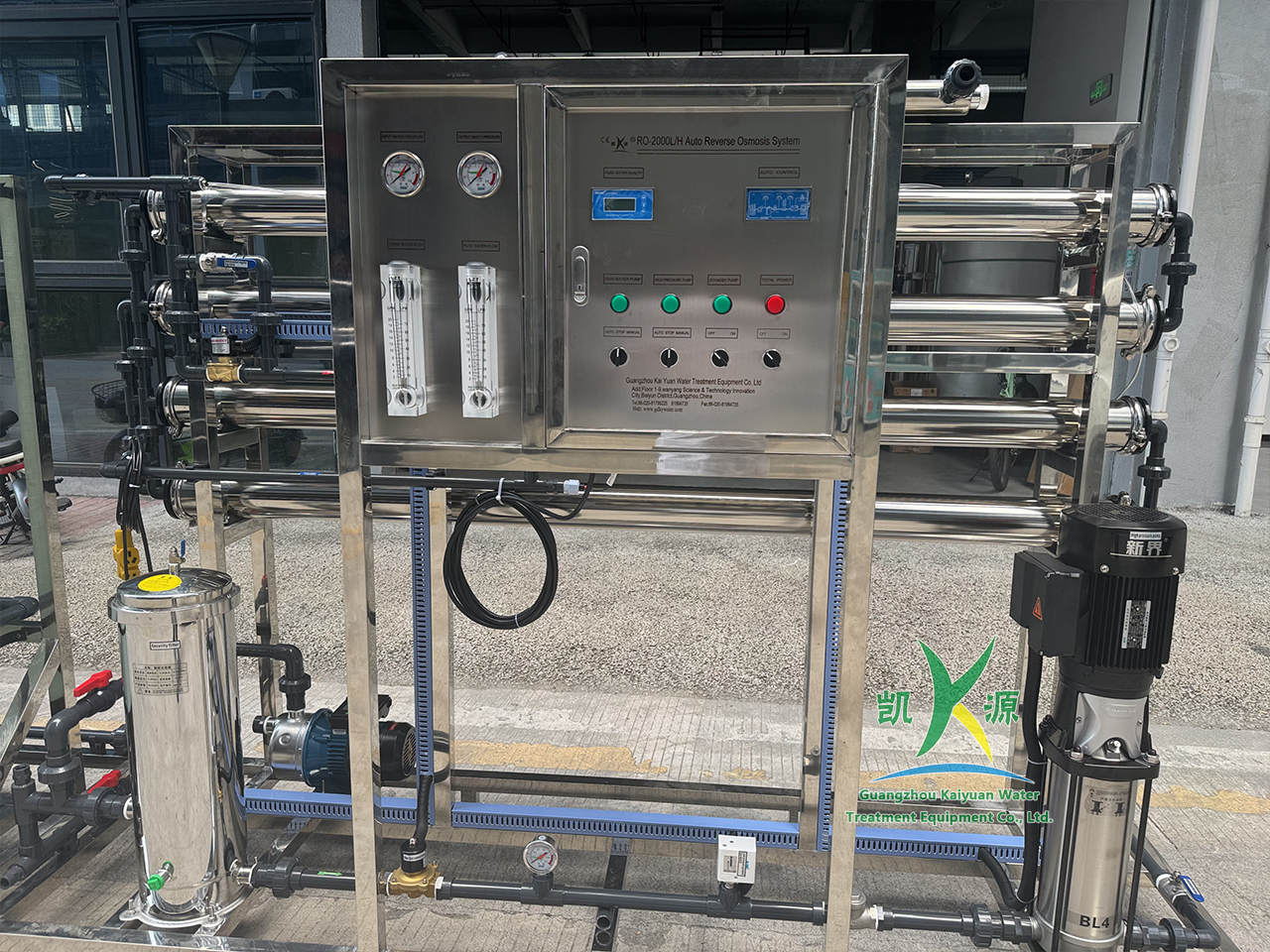

Feed/permeate pressure gauges and permeate/concentrate flow meters grouped in one view; independent push buttons for raw water pump, high-pressure pump and main power, with bilingual labeling.
Five-stage treatment for guaranteed water quality
One system meets pure water demands across industries
Send us your feed water quality report — our engineers will design your treatment solution for free
