KY-RO4000L/H
KAIYUAN
Product Description

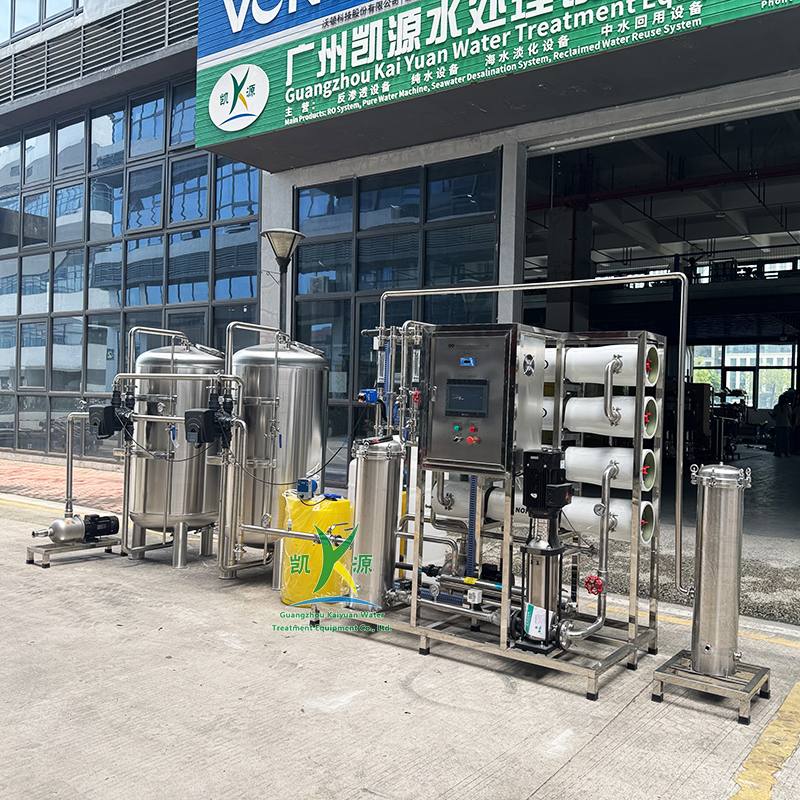

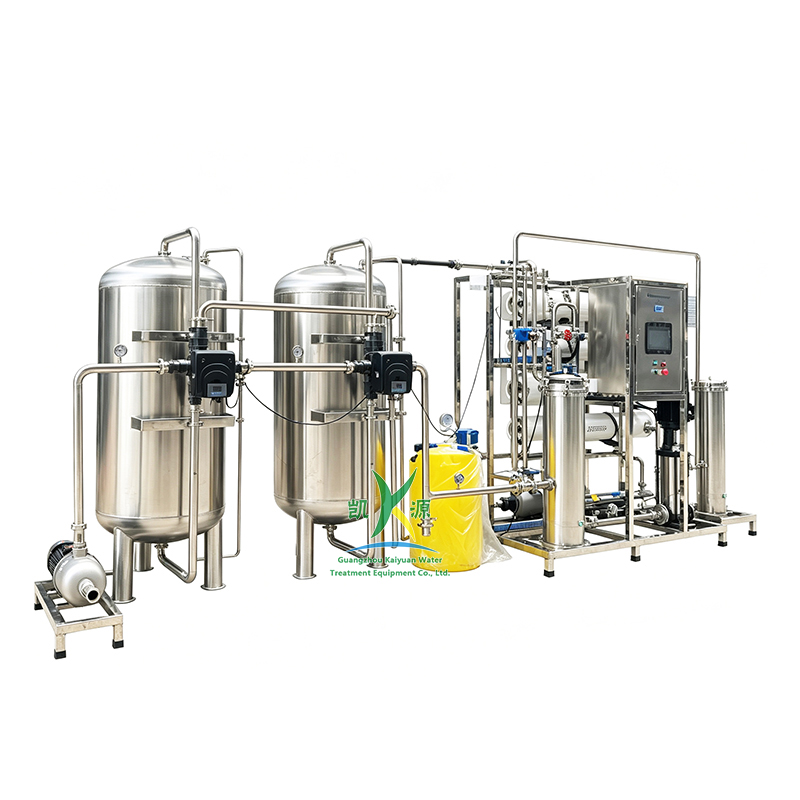

The 4000L/hour RO pure water equipment is Guangzhou Kaiyuan Water Treatment's flagship standardized industrial water purifier model, with a rated water production flow rate of 4000L/H (4m³/h). It adopts a single-stage reverse osmosis configuration and is specifically designed for high-salt and high-turbidity raw water, treating surface water, groundwater, and tap water into compliant industrial pure water to meet the production water needs of multiple industries.
Product Parameters
Item | Specification |
|---|---|
Rated Product Water Flow | 4000L/H (4m³/h) @25℃ |
System Type | Single‑stage RO (Optional) |
Inlet Water Condition | Raw water TDS ≤1000ppm, inlet pressure 0.2‑0.4MPa |
Permeate Conductivity | Single‑stage:10μS/cm; |
RO Membrane | 4 pcs 8040 high‑performance RO membranes |

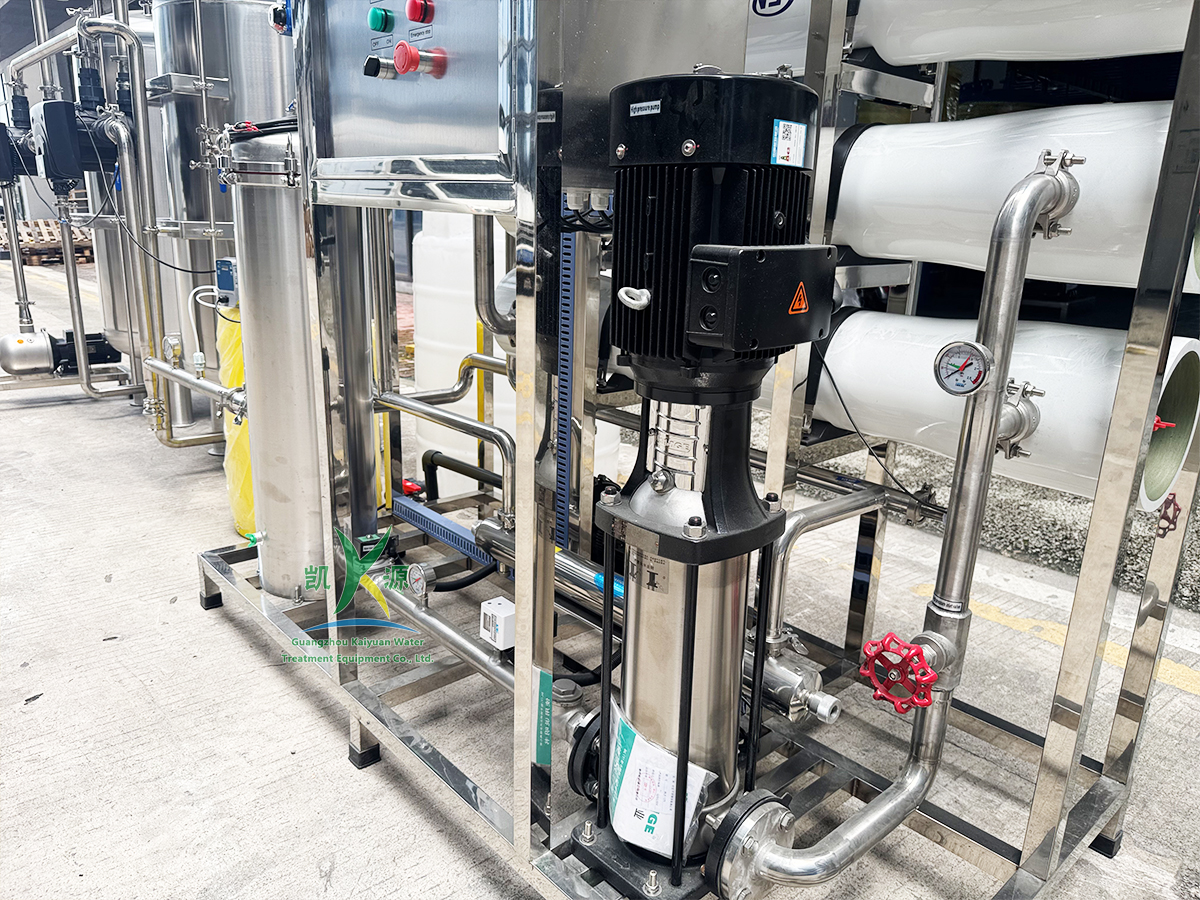

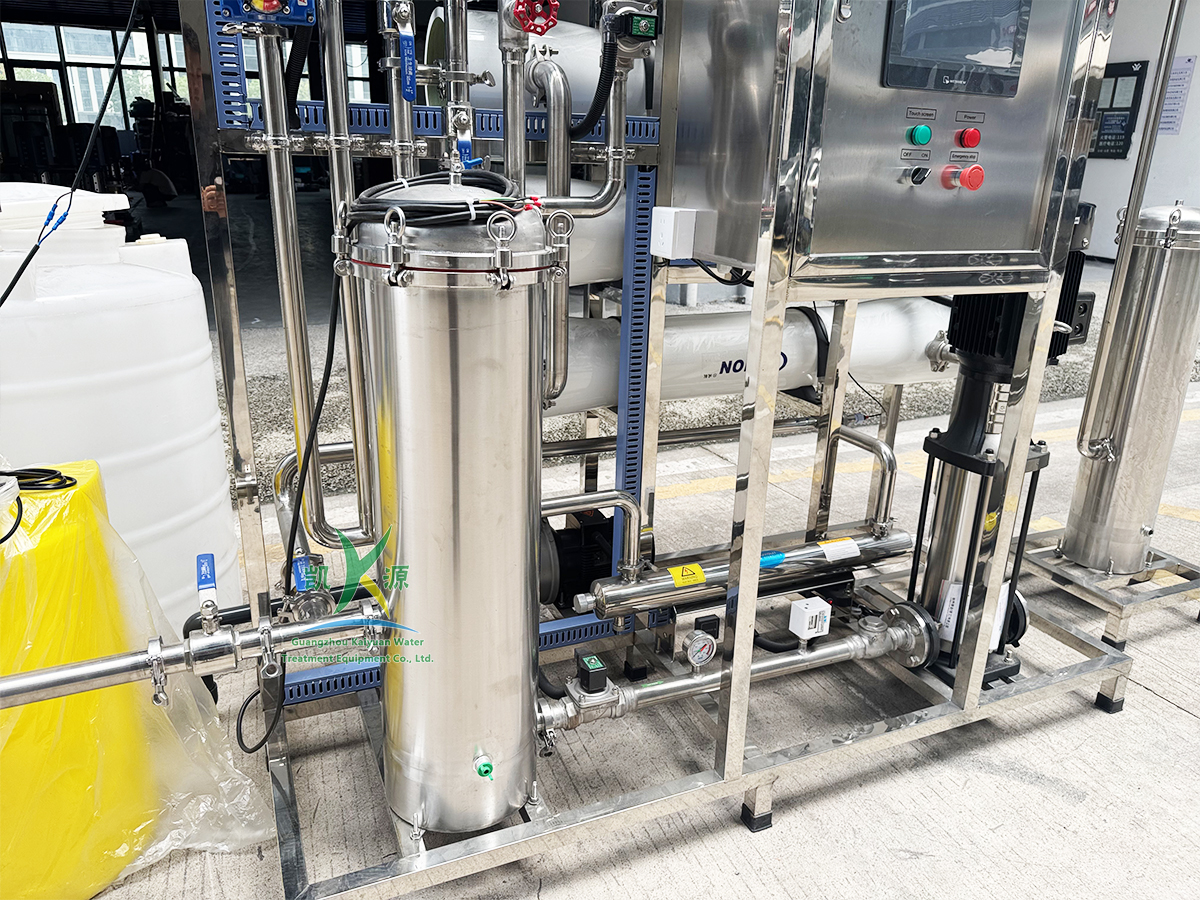

High Pressure Pump | Stainless steel vertical multistage pump |

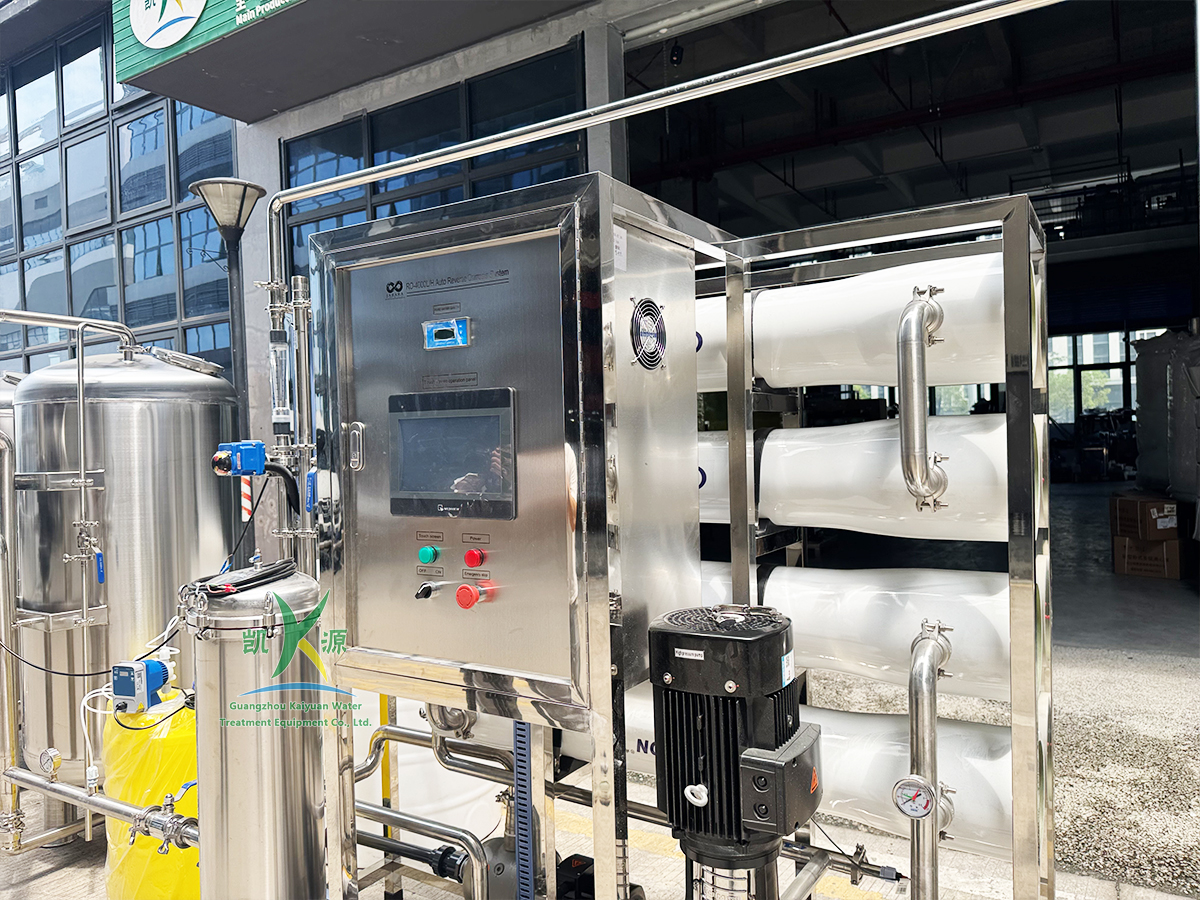

Control System | PLC /PCtouch‑screen automatic control, auto‑flush, auto start‑stop, fault alarm |

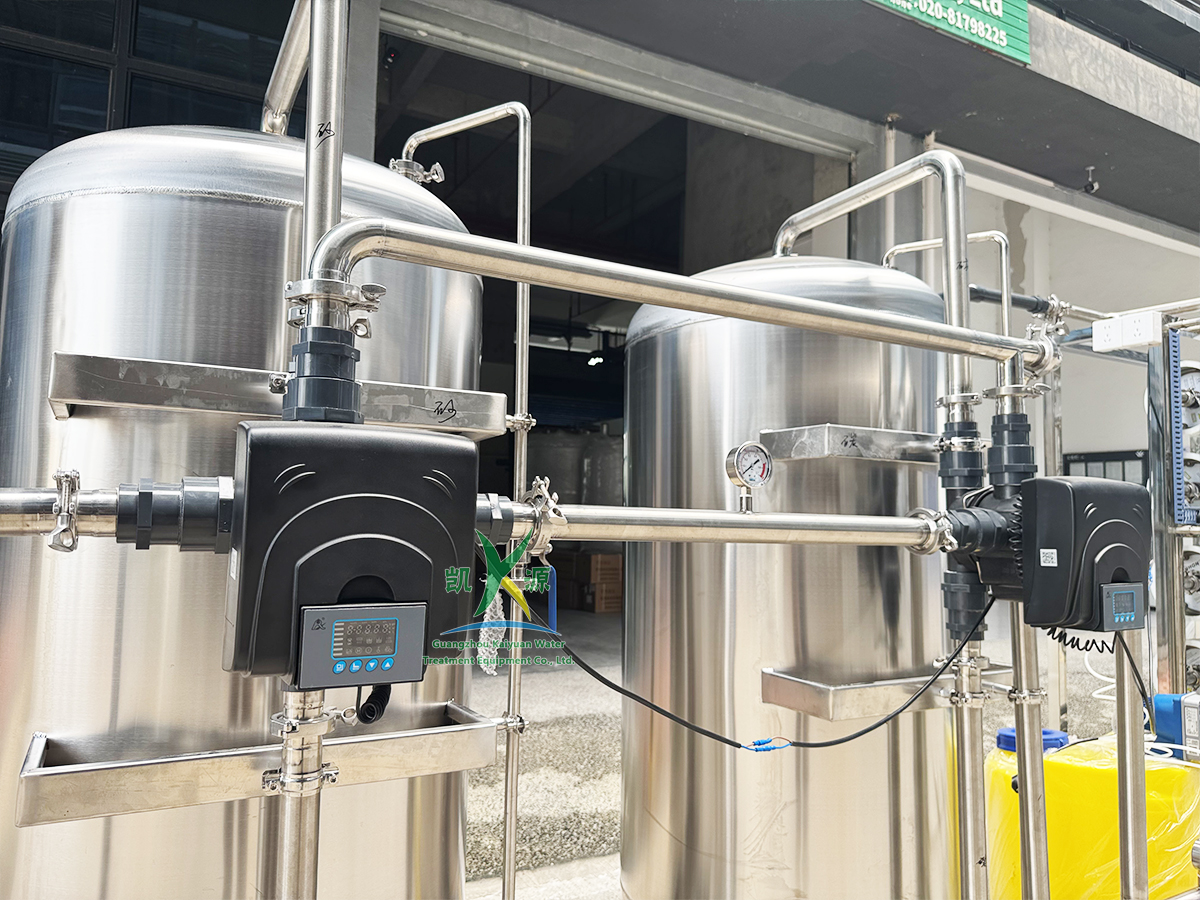

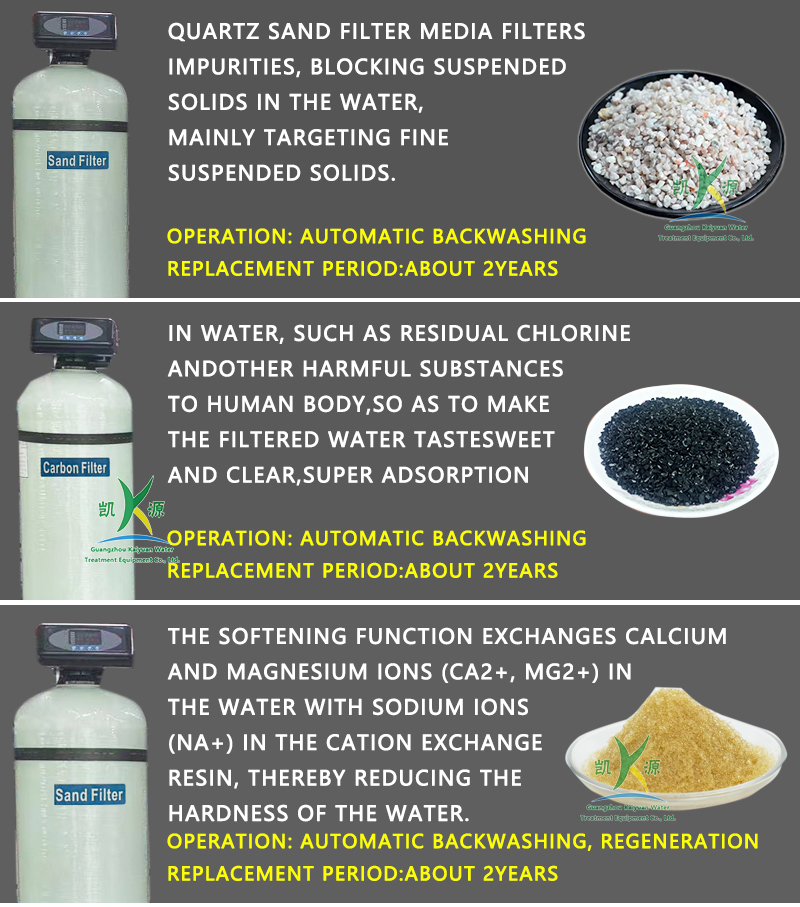

Pretreatment | SS multi‑media filter, activated carbon filter, water softener (optional) |

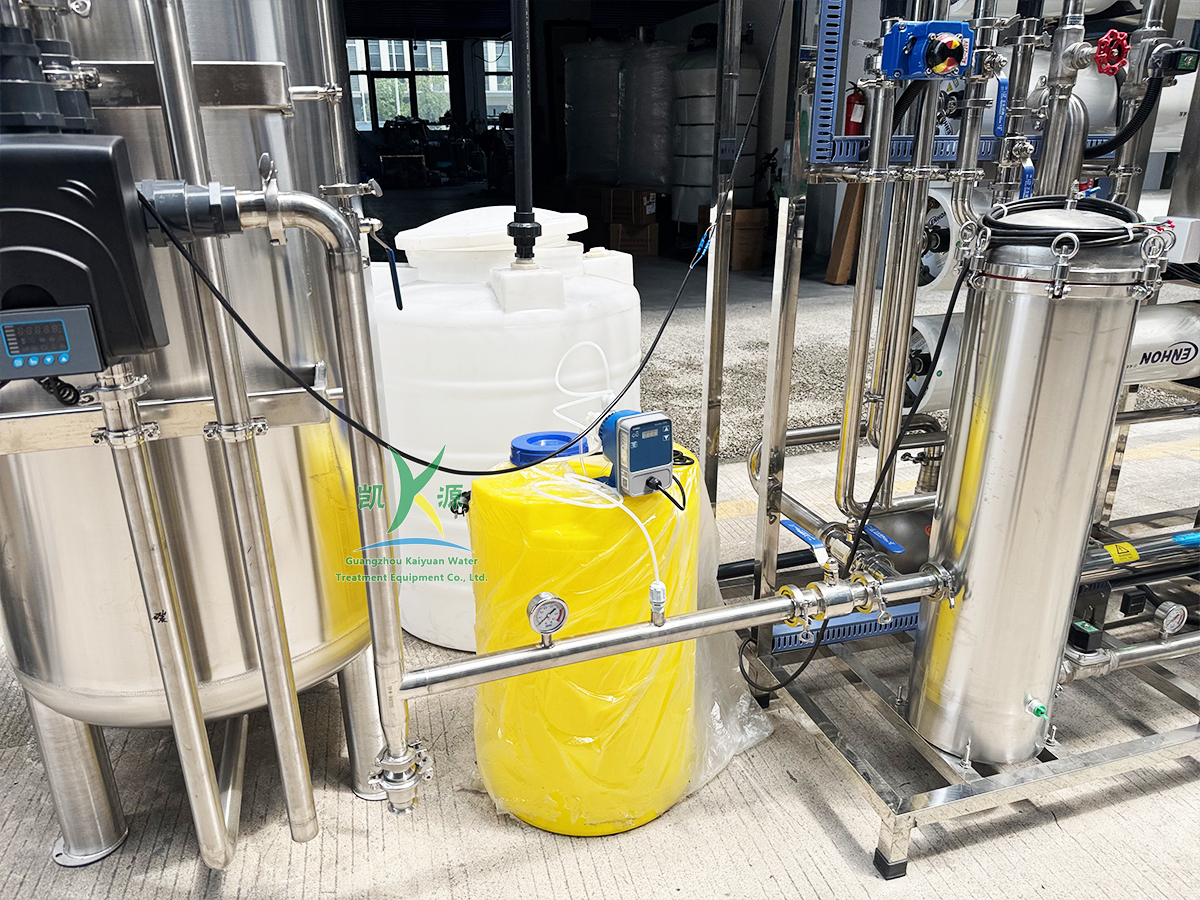

Post‑treatment | 5μm cartridge filter, anti‑scaling dosing system |
Material | 304 stainless steel frame; UPVC / SS304 pipeline optional |
Power Supply | 380V 50Hz, custom voltage for global markets |
Overall Dimension | Approx. 2000×680×2100 mm |
Operating Temperature | 5‑45℃ |
Product Areas
A 4000L/H reverse osmosis system provides stable effluent, suitable for small to medium-sized factories. Main applications include:
1. Food and Beverage Industry: Bottled water, mineral water, beverage, and juice production.
2. Manufacturing Industry: Electroplating, electronic cleaning, and cosmetic ingredient water.
3. Pharmaceutical and Biochemical Industry: Pharmaceutical intermediates and laboratory process water.
4. Agriculture and Animal Husbandry: Irrigation water and aquaculture water purification.
5. Commercial and Residential Use: Centralized drinking water supply in residential areas and hotel water supply.
6. Others: Brackish water desalination and boiler feedwater.

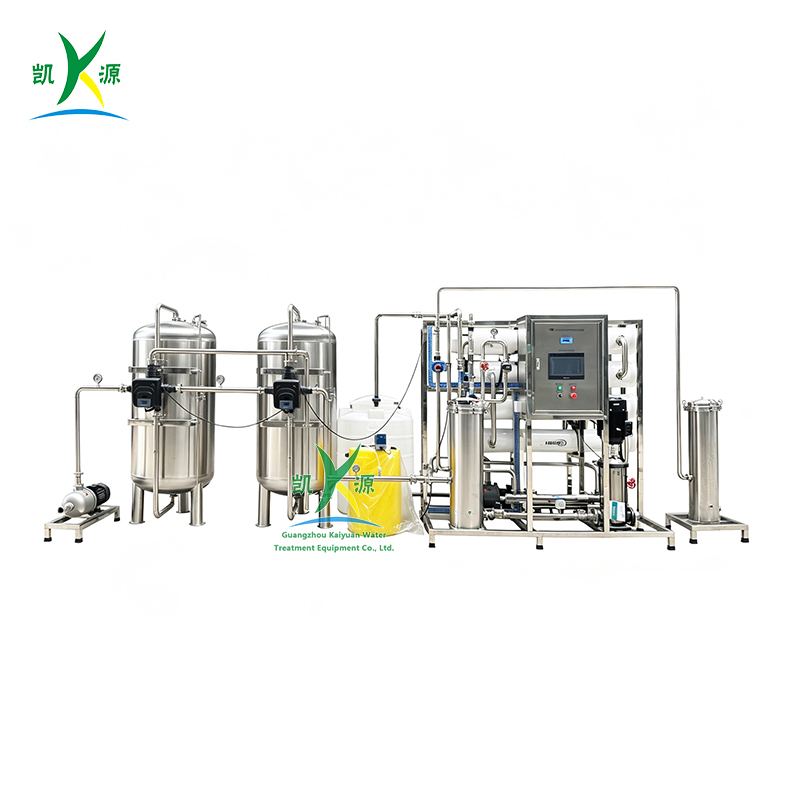

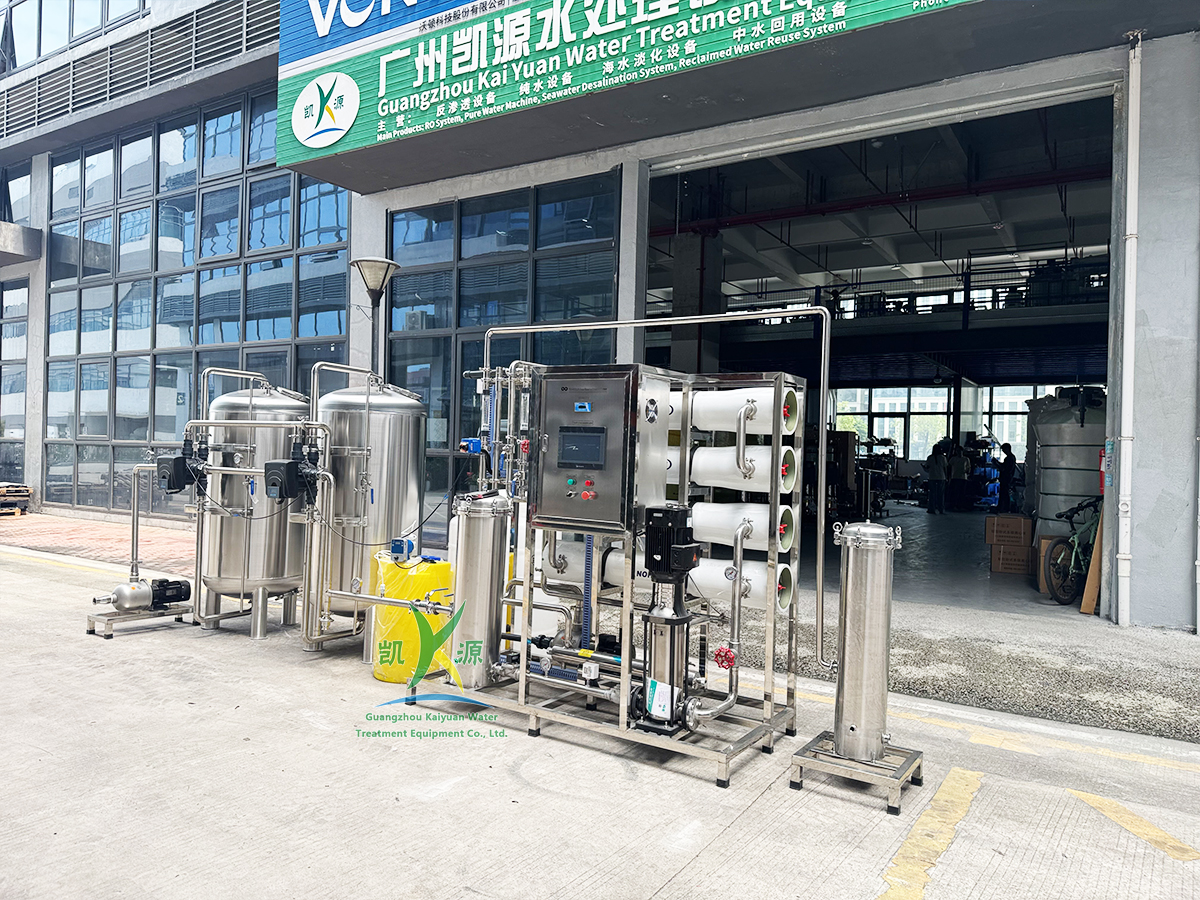

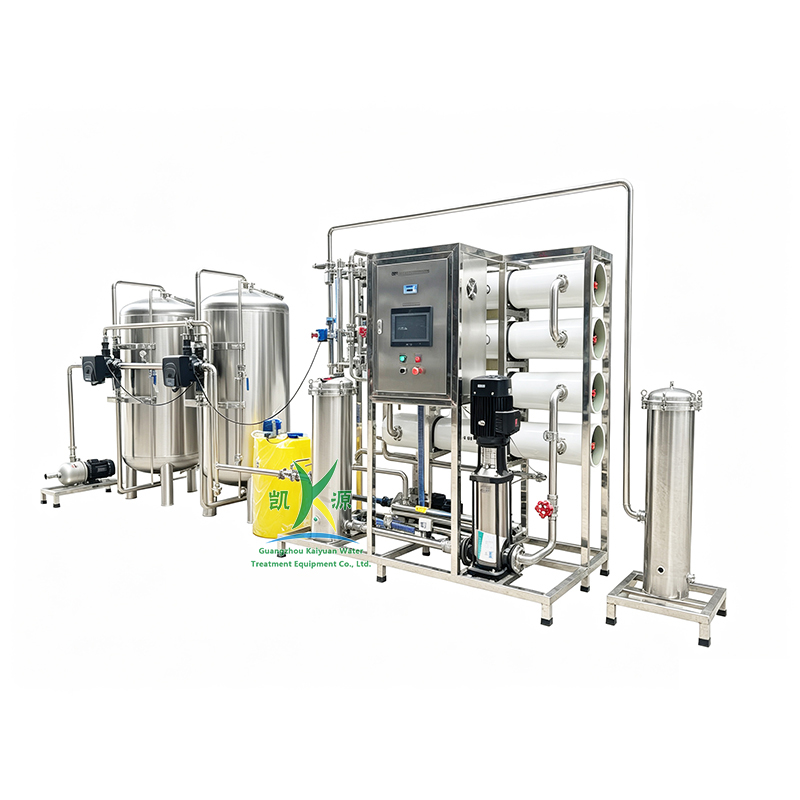

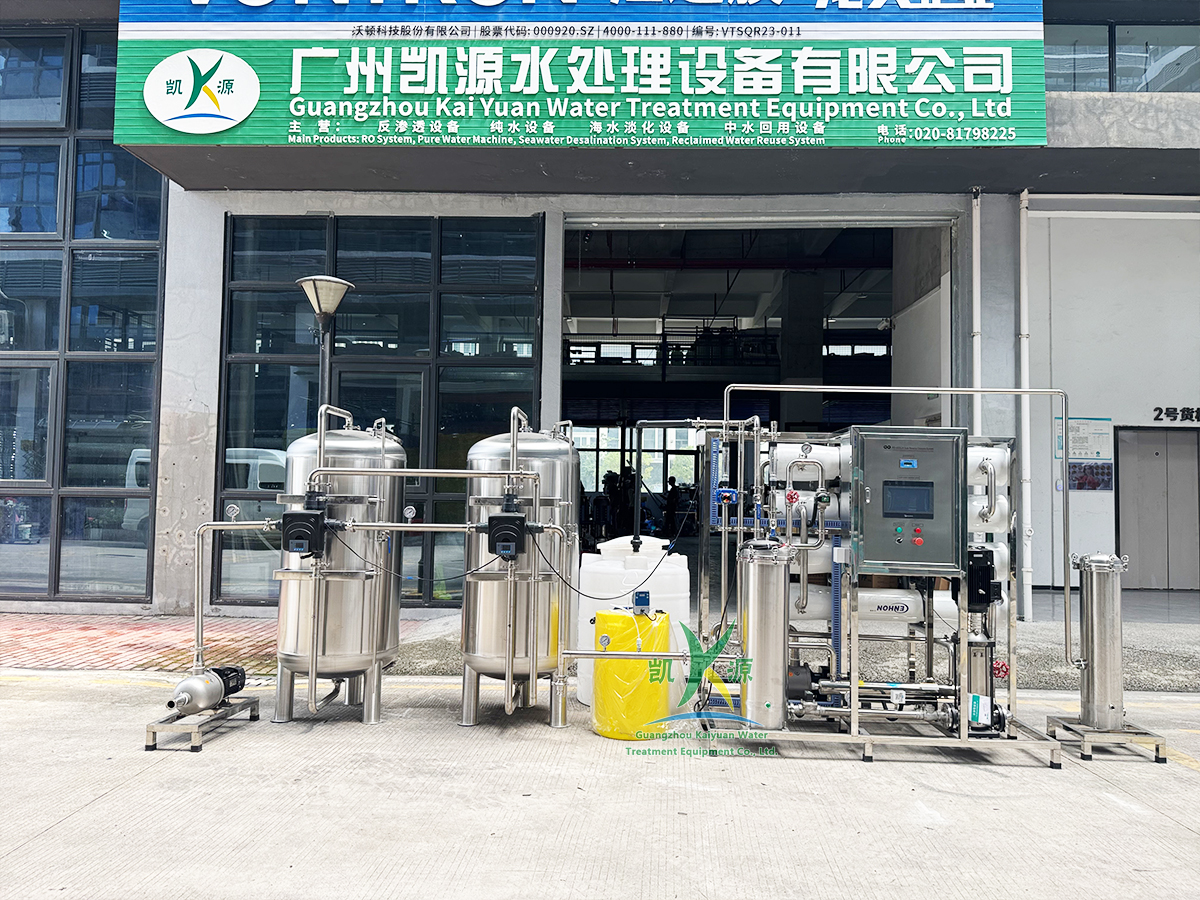

Product Showcase
Choose Kaiyuan
Global freshwater resources are finite, with a very low percentage being directly usable. Climate change, industrialization, and population growth are further exacerbating water scarcity. Large amounts of wastewater are discharged directly without adequate treatment, leading to both water shortages and pollution, making water security a global challenge. As a water treatment equipment manufacturer with 20 years of experience, we have extensive research experience in the water purification industry and offer complete solutions encompassing independent R&D, design, production, installation, and after-sales service.
