KY-RO3000L/H
KAIYUAN
Product Description

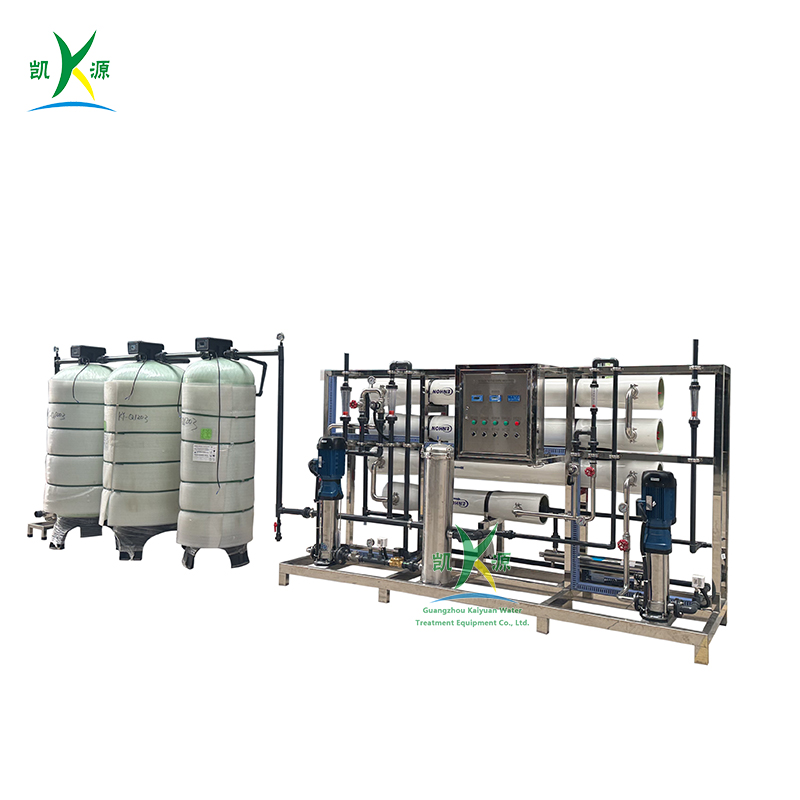

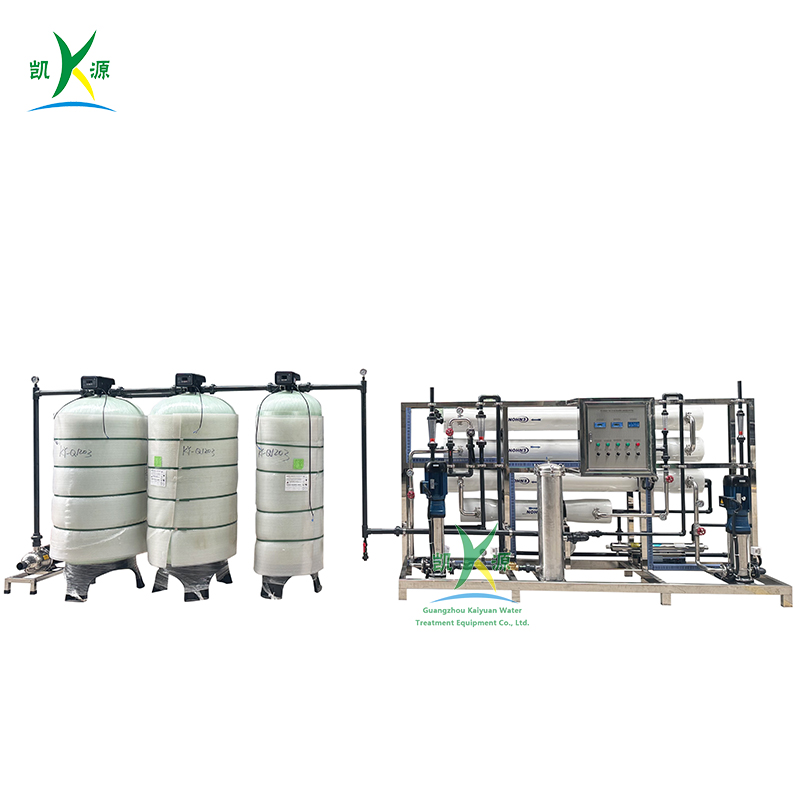

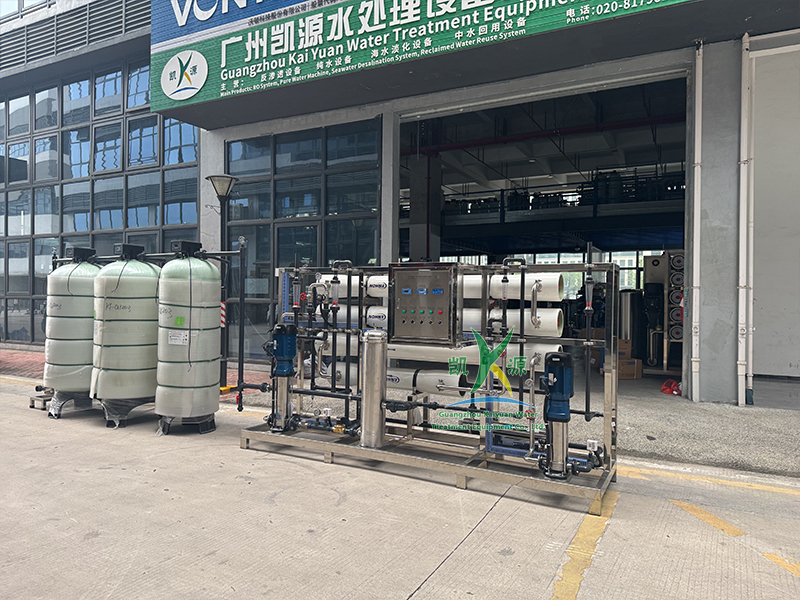

This single stage RO water treatment system is designed to reduce hardness, remove suspended solids, chlorine, organic matter and TDS from raw water. The system consists of pre-treatment filters, an automatic water softener, security filter, high-pressure pump, RO membrane housings, control panel and instrument monitoring unit.
With integrated skid-mounted design, the equipment is easy to install, operate and maintain. It is suitable for industrial production water, boiler feed water, food & beverage processing, manufacturing process water and brackish water treatment projects.

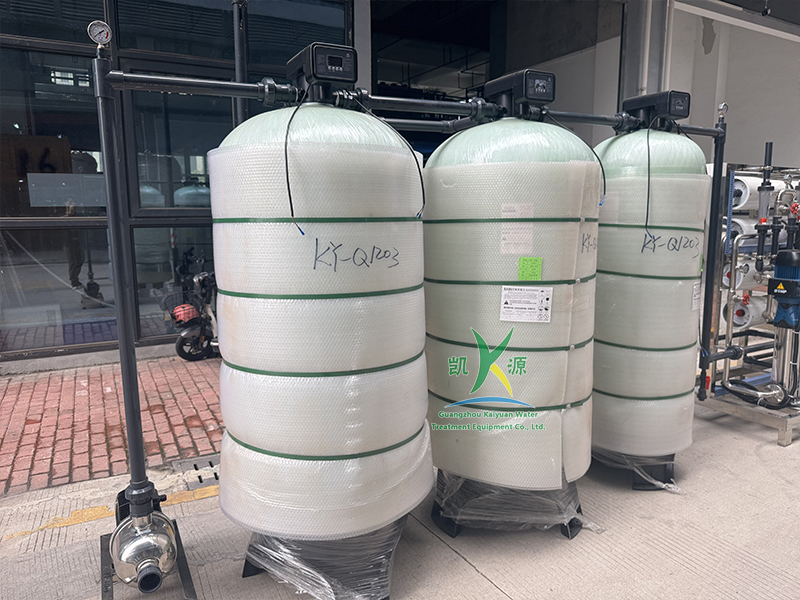

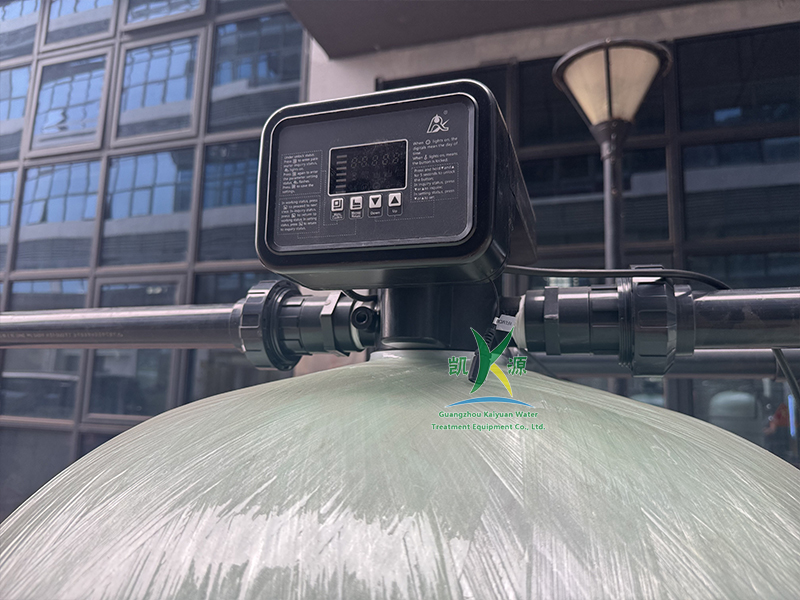

Corrosion-resistant fiberglass reinforced plastic tanks for multimedia filtration, activated carbon filtration and water softening.

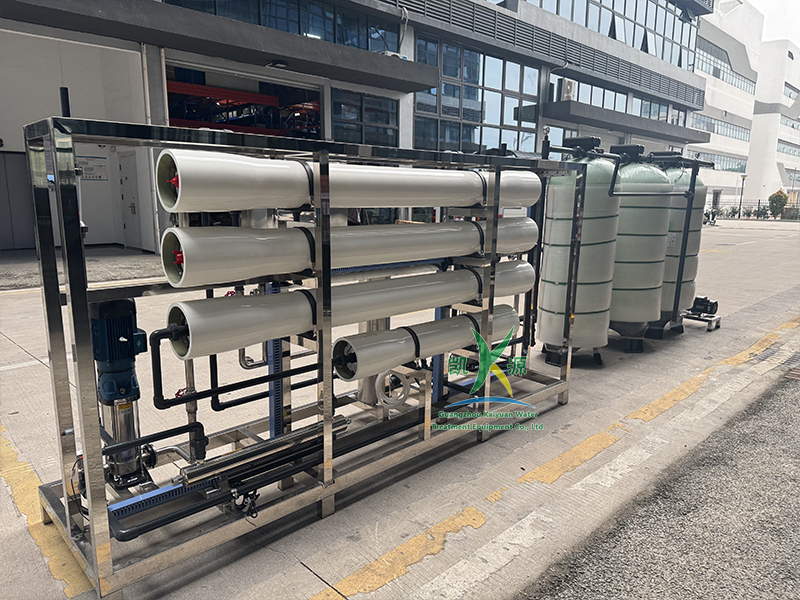

304 stainless steel skid frame with strong mechanical stability, anti-rust performance and long service life.

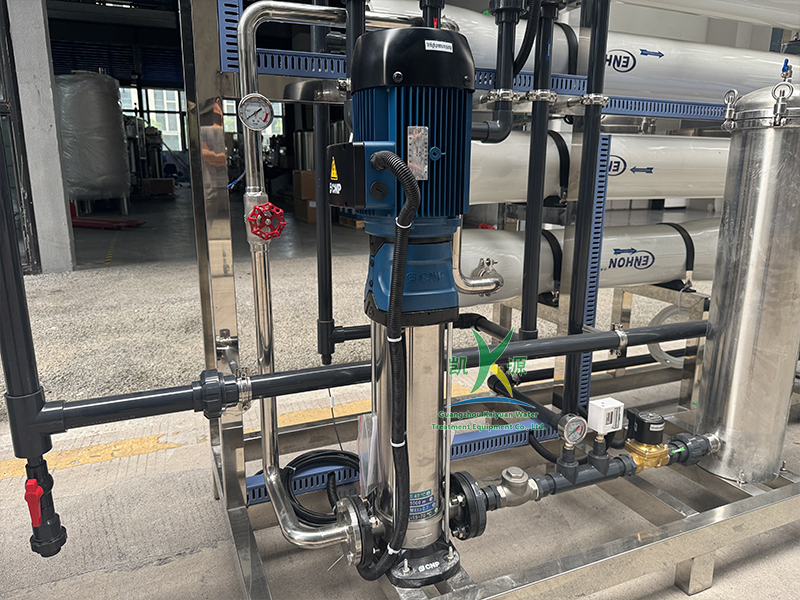

UPVC or stainless steel piping, high-pressure centrifugal pumps, pressure gauges, flow meters and automatic valve assemblies.
The built-in water softener removes calcium and magnesium ions, reducing scaling risk and protecting RO membranes from fouling.
Single stage reverse osmosis technology achieves high TDS removal, producing stable permeate water for industrial applications.
Automatic backwash, regeneration, pressure protection and system shutdown functions reduce manual operation intensity.
Flow rate, material, voltage, control mode and configuration can be customized according to raw water quality and project requirements.
| Item | Specification |
|---|---|
| Capacity | 1 ~ 20 m³/h (customizable) |
| Desalination Rate | ≥ 97% |
| Feed Water TDS | ≤1000 ppm (brackish water available) |
| Working Pressure | 1.0 ~ 1.6 MPa |
| Power Supply | 220V / 380V, 50Hz / 60Hz, custom |

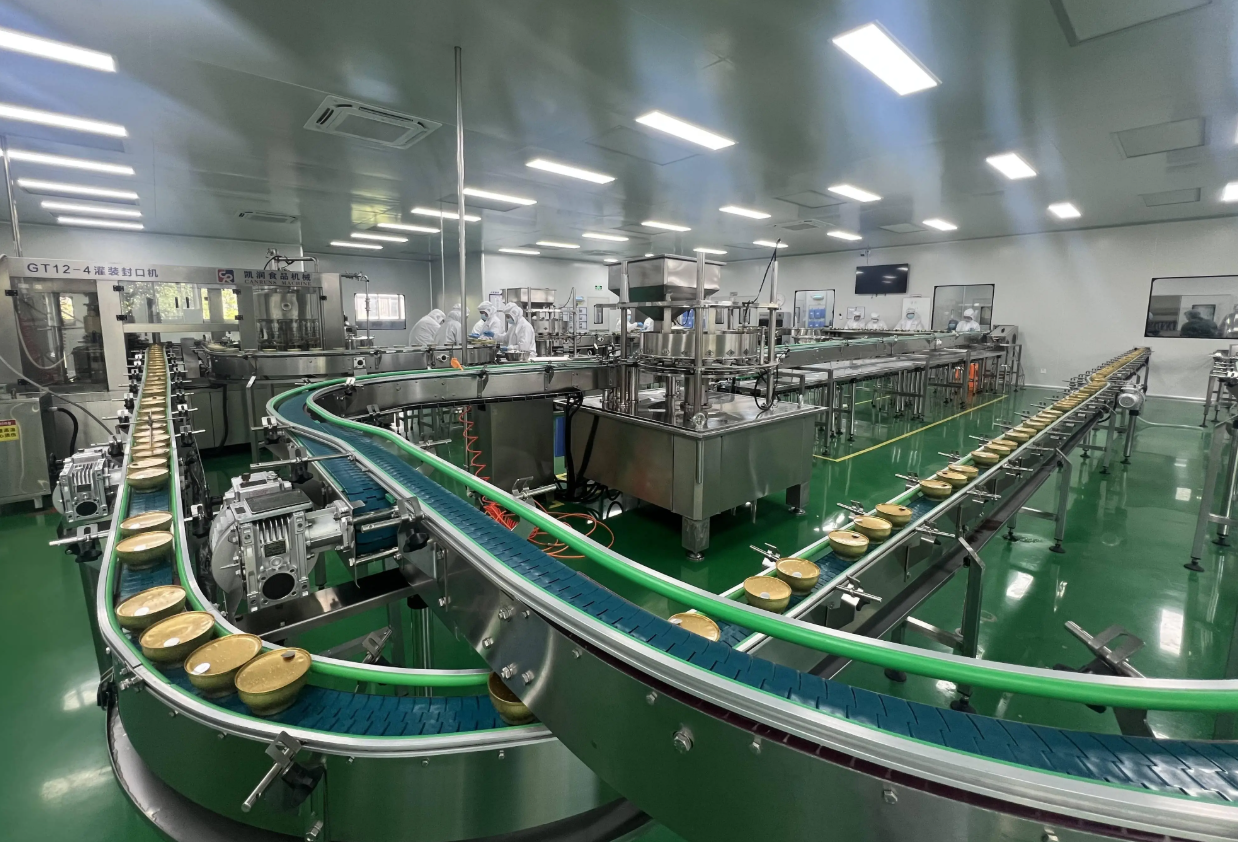

Process water, beverage production, dairy processing, cleaning water and drinking water preparation.

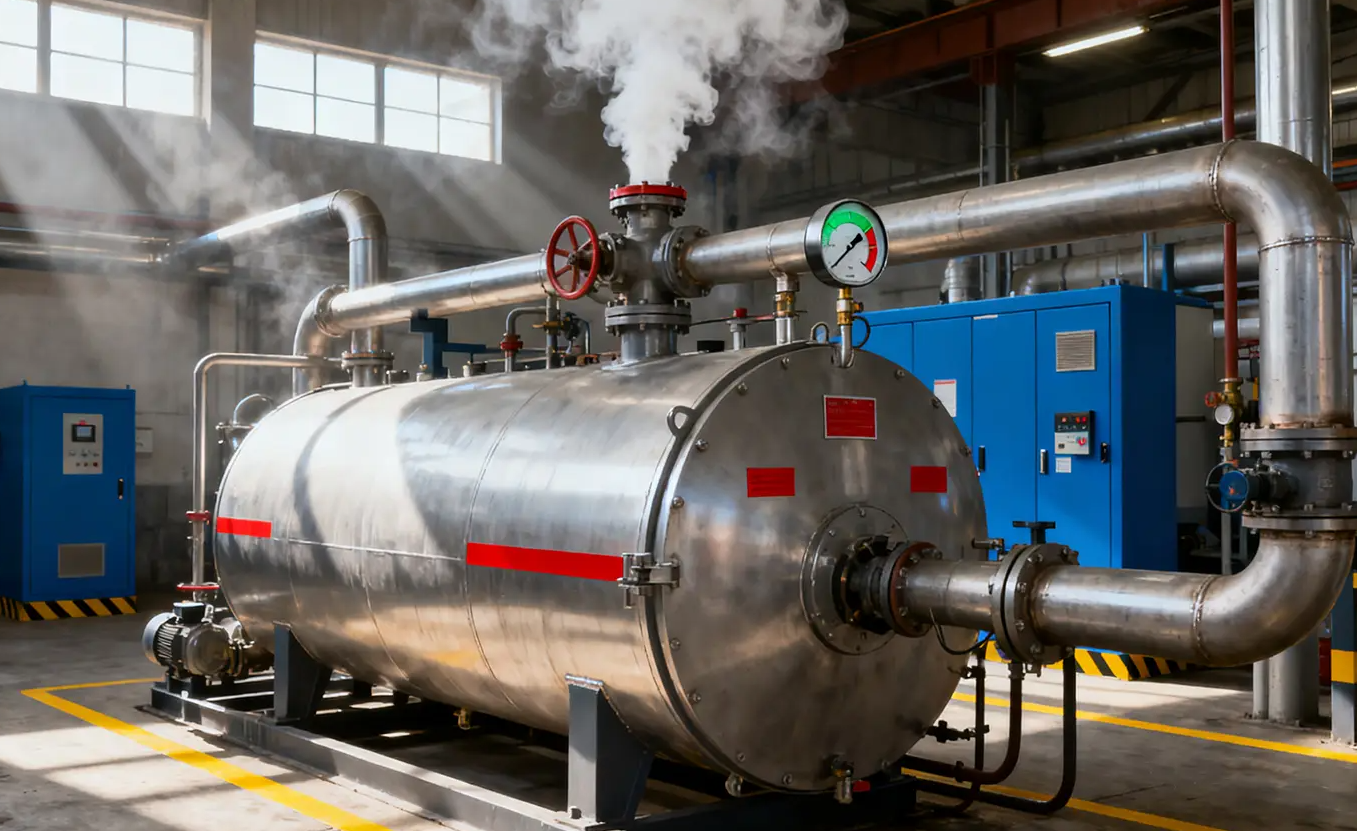

Reduce hardness and TDS to protect boiler tubes, heat exchangers and steam generation systems.

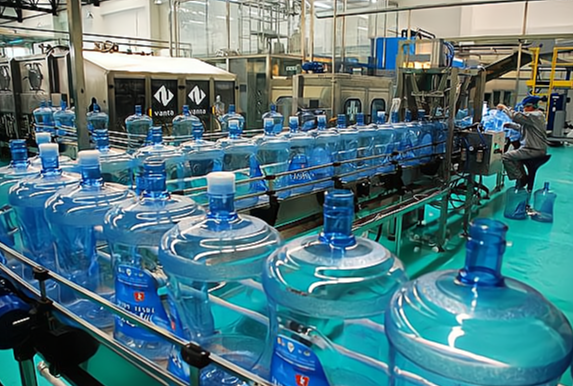

Electronics, electroplating, textile, chemical processing, product cleaning and industrial production lines.

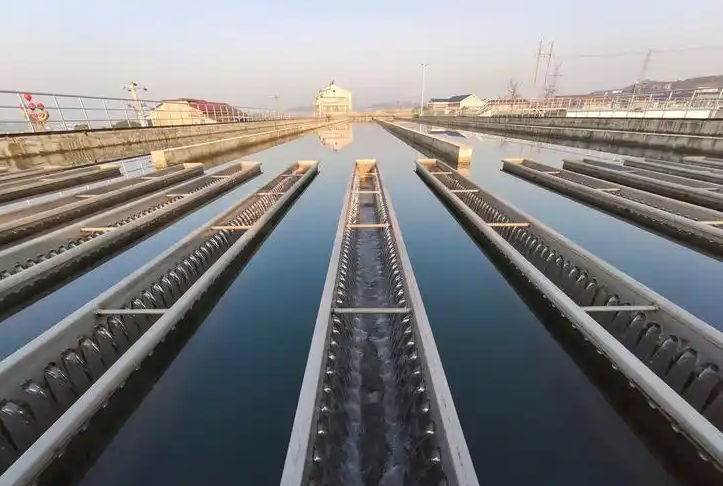

Hotel water supply, community purified water, mining water, rural brackish water and commercial water projects.
Multimedia filter + water softener. Compact layout, suitable for raw water with lower organic content and medium hardness.
Multimedia filter + activated carbon filter + water softener. Stronger removal of turbidity, chlorine, odor and organic matter.
We provide integrated reverse osmosis water treatment solutions from pre-treatment design to RO host configuration, commissioning guidance and after-sales support.
Direct manufacturing with strict quality control and competitive pricing.
Configuration based on raw water quality, capacity and site conditions.
Pressure testing, flush testing and running verification before delivery.
Operation manual, installation guidance and after-sales service support.
Welcome to Inquire.
Send us your feed water quality report — our engineers will design your treatment solution for free
